Nitrile NBR Hammer Union Lip Seal Rings for Oilfield Replacement
Product Introduction
Hammer Union Seals are used in the connections between flexible hoses or pipes used in the oil drilling industry. The seal provides a critical fluid tight connection within the union hardware.
Hammer unions consist of a thread end, a nut end, and a hammer nut that when tightened seal the assembly with the assistance of an elastomeric seal. The seal is lipped to prevent it from falling out when inverted.
Available sizes and materials
Sizes: 1'' 1.5'' 2'' 3'' and 4''
Material: NBR for this enquiry; HNBR/FKM alternatives and PTFE construction reviewed separately
| Material |
Temperature Range |
Advantage |
| NBR |
NBR temperature by selected compound
Confirm continuous and peak exposure |
1.Presently the most widely used rubber in the seal industry
2.Exceptional balance of good mechanical properties, wear properties, and chemical resistance
3.Resistance to most mineral oils and greases
|
| HNBR |
HNBR temperature by selected compound
Confirm fluid and equipment requirements |
1.Chemical resistance
2.Wider temperature range than standard nitrile
3.High strength material that resists extrusion, abrasion, and wear
4.Water and steam suitability by compound and exposure
5.Sour-service suitability requires compound-specific qualification
6.Commonly used with petroleum oils and co2
|
| FKM |
FKM temperature by selected compound
Confirm fluid and equipment requirements |
1.Excellent resistance to higher temperature, petroleum, and gasoline
2.Good chemical resistance, including to refrigerants(R12)
3.Great mechanical properties are retained over a wide temperature range
4.Ammonia exposure requires review of the exact FKM grade
|

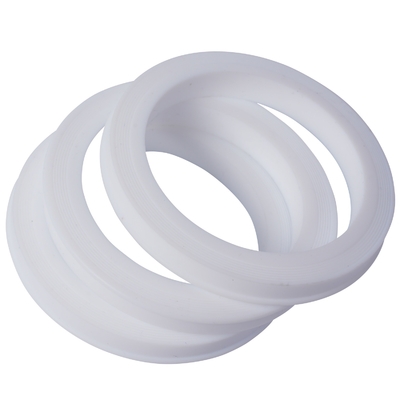

| PTFE |
PTFE temperature by grade and sealing design
Separate thermoplastic construction review |
Chemical compatibility by PTFE grade, fluid formulation and temperature |
All available Hammer Union Seal List:
1'' 1502 NBR/HNBR/FKM/PTFE
1-1/2'' 1502 NBR/HNBR/FKM/PTFE

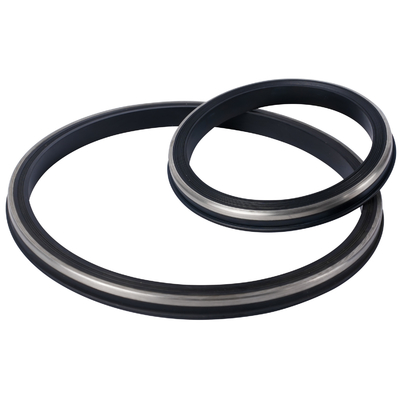

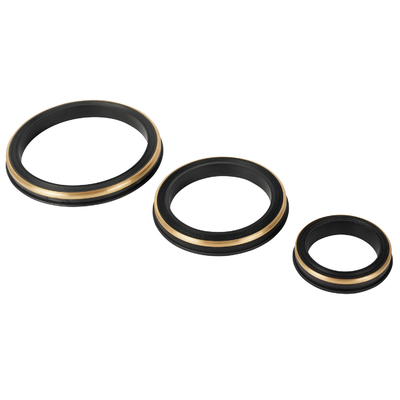

2'' FIG 602/1002/1502 NBR/HNBR/FKM/PTFE (Brass/stainless back up)
3'' FIG 602/1002/1502 NBR/HNBR/FKM/PTFE (Brass/stainless back up)
4'' FIG 602/1002/1502 NBR/HNBR/FKM/PTFE (Brass/stainless back up)
2'' FIG 206 NBR/HNBR/FKM/PTFE (Brass/stainless back up)
3'' FIG 206 NBR/HNBR/FKM/PTFE (Brass/stainless back up)
4'' FIG 206 NBR/HNBR/FKM/PTFE (Brass/stainless back up)

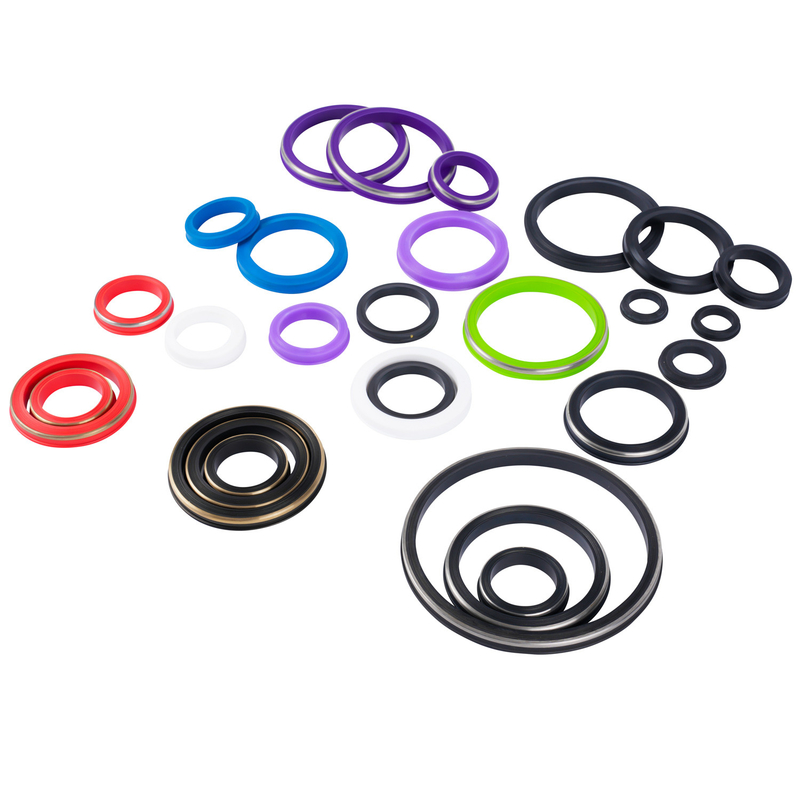

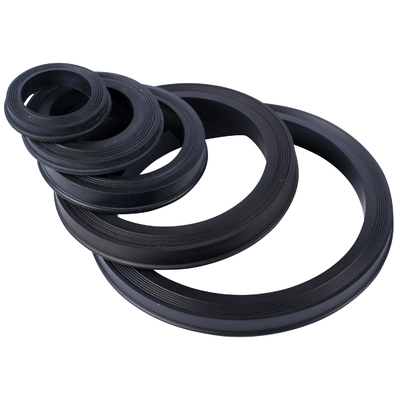

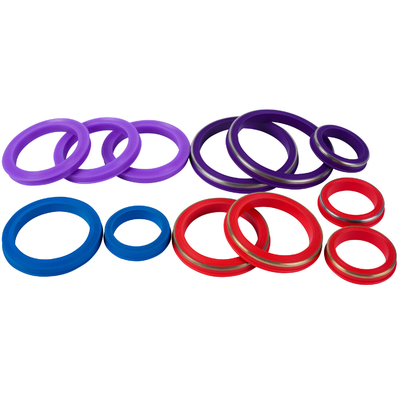

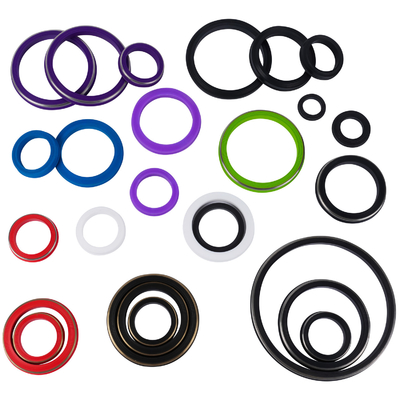

Detailed Photos
Company and factory introduction
Shangahi Qinuo Industry Co., Ltd was established in the year of 2013 at Shanghai Free Trade Zone, we are a new and high-tech enterprise integrating R&D, production and sales. Since its inception, we adhering to the "Quality for Survival, Innovation Competes For Development " concept, continuous development and innovation, we won a good reputation at home and abroad, Qinuo has a brand name "SHQN® ".
Qinuo provides professional rubber parts, plastic parts and maching parts design and production services, products mainly used in oil & gas industry, automobiles, household appliances, machinery equipment etc. We have a professional production and sales team, "High-Quality, High Professionalism, High Efficiency" are the principles of doing things.
Under the Shanghai Qinuo, we have two wholly-owned factories in Nantong City, only an hour's drive to Shanghai Pudong Airport or Shanghai Sea port to ensure the quick delivery, we have more than 30 rubber vulcanizing machines and relevanted equipments, so that Qinuo can produce more than 20 kinds of rubber rings or other rubber products together to meet our customer's demands, our monthly rubber processing capability can upto 20 tons (about 40, 000 lbs) or more. And Qinuo is still in rapid growthing.
We adopt comprehensive quality management system based on the ISO9001, our products are mainly exported to the United States, Canada, Britain, Germany, Finland, Australia more than 100 countries extend all over the globe. Qinuo is sincerely wishing to cooperate with you.
Related rubber products
Rubber o ring Rubber Swab Cup Oil Saver Rubber
Rubber Cable Protector Redress Kit Plug Valve Soft Seal Kit
Our advantage
1. We have our own factory in Nantong, Jiangsu, so we can guarantee high quality with a favorable price.
2. We have our sales department and production department, so we provide a range of process services to customers.
3. We accept multiple payment methods, including T/T, Paypal, etc.
4. We accept multiple Transportation methods, by sea, by air, by express or by truck.
If you have any needs about oil and gas parts, please contact us!
Nitrile Union Lip Seal Replacement: Inspect the Lip and Mating Surfaces
For an oilfield NBR lip seal replacement, identify the union figure and nominal connection size before comparing measured seal dimensions. Provide the original profile drawing or an identifiable sample, including lip height, section and any brass or stainless support ring.
Check the mating groove and sealing surfaces for visible wear or damage before fitting a replacement. A worn sample can help identify the part but should not be the sole basis for manufacturing dimensions. Confirm the profile and dimensional tolerances against the equipment drawing.
Select the nitrile compound for the actual oil or drilling fluid, temperature cycle and cleaning exposure. Confirm the required hardness and inspection documents for the ordered grade. The complete union specification establishes the permitted connection duty; this seal has no independent universal pressure rating. Review other listed materials separately rather than treating them as equivalent substitutes.
