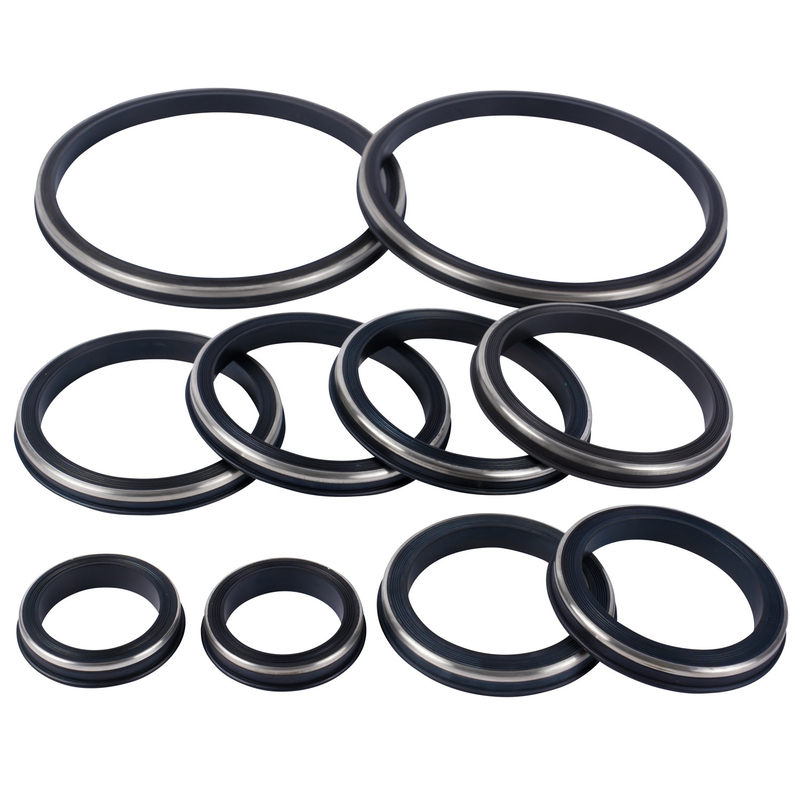

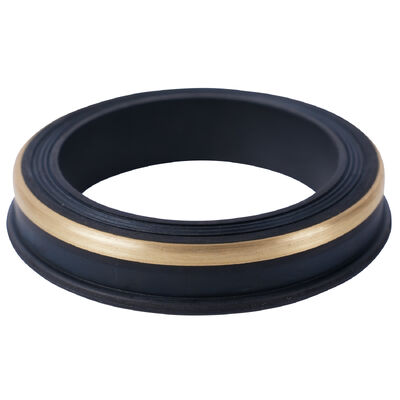

80 Shore A Nitrile HNBR PTFE FKM Rubber Hammer Union Seals For Oilfield

80 Shore A Nitrile HNBR PTFE FKM Rubber Hammer Union Seals For Oilfield

Product Details:
Place of Origin: Shanghai, China
Brand Name: SHQN
Certification: ISO9001
Model Number: HUS001
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: US$ 0.2-1
Packaging Details: bulking packing , standard carton
Delivery Time: 50000 pcs/ week
Payment Terms: T/T, Western Union
Contact Now
Detailed Product Description
Material: NBR/HNBR/FKM By Exact Rubber Compound; PTFE/PU Separately Reviewed Hardness: 80 Shore A Rubber Enquiry; Confirm Grade And Tolerance; PTFE Separately Specified

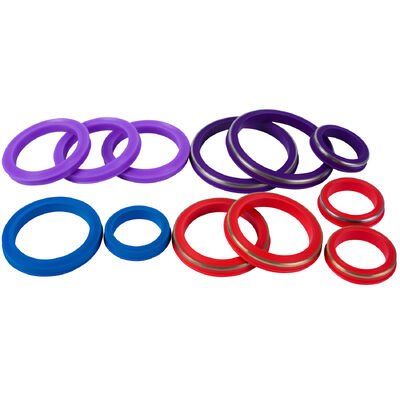

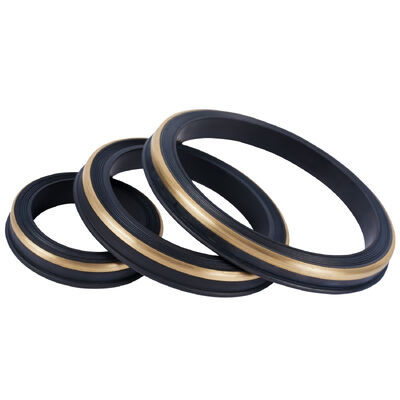

Type: Rubber-only, Brass-backed Or Stainless-backed To Original Profile Color: Black, Blue, Red, Purple, Green Or Agreed Custom Colour
Size: 1, 1.5, 2, 3 And 4-inch Nominal Range; Exact Figure/profile To Confirm Pressure: By Complete Union Specification; No Universal Seal-only Rating
Temperature: By Selected Compound, Fluid And Exposure Duration Nearest Port: Shanghai
Custom: Customize According To Client's Drawing And Requirements Feature: Fluid And Temperature Suitability By Exact Material Grade
Application: Oil And Gas Industry Usage: Replacement Lip Seal Component For Matching Hammer Union
Samples: Available Delivery Time: 5-10 Days
Service: OEM/ ODM MOQ: 500pcs
Package: Carton Or Wooden Box Or Pallet
Highlight:

FKM Rubber Hammer Union Seals

,

80 Shore A Hammer Union Seals

,

HNBR Hammer Union Seals

80 Shore A Hammer Union Seal Enquiry — Oilfield Compound and Profile Selection

Product Introduction


Hammer Union Seals are used in the connections between flexible hoses or pipes used in the oil drilling industry. The seal provides a critical  fluid tight connection within the union hardware.



Hammer unions consist of a thread end, a nut end, and a hammer nut that when tightened seal the assembly with the assistance of an elastomeric seal. The seal is lipped to prevent it from falling out when inverted.



Available sizes and materials


Sizes: 1'' 1.5'' 2'' 3'' and 4''



Material: NBR, HNBR or FKM by approved compound; PTFE requires separate thermoplastic construction review



Material Temperature Range Advantage
NBR NBR temperature by selected compound
Confirm continuous and peak exposure



 1.Presently the most widely used rubber in the seal industry
 2.Exceptional balance of good mechanical properties, wear  properties, and chemical resistance
 3.Resistance to most mineral oils and greases



HNBR HNBR temperature by selected compound
Confirm fluid and equipment requirements



 1.Chemical resistance
 2.Wider temperature range than standard nitrile
 3.High strength material that resists extrusion, abrasion, and wear
 4.Water and steam suitability by compound and exposure
 5.Sour-service suitability requires compound-specific qualification
 6.Commonly used with petroleum oils and co2



FKM  FKM temperature by selected compound
Confirm fluid and equipment requirements



 1.Excellent resistance to higher temperature, petroleum, and gasoline
 2.Good chemical resistance, including to refrigerants(R12)
 3.Great mechanical properties are retained over a wide temperature range
 4.Ammonia exposure requires review of the exact FKM grade

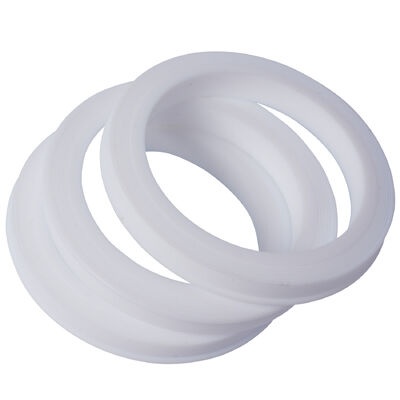

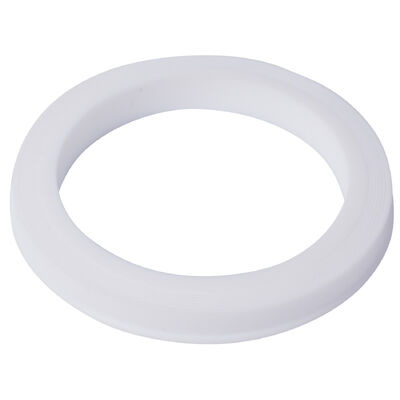

PTFE PTFE temperature by grade and sealing design
Separate thermoplastic construction review
 Chemical compatibility by PTFE grade, fluid formulation and temperature



All available Hammer Union Seal List:



1''         1502  NBR/HNBR/FKM/PTFE

1-1/2''   1502  NBR/HNBR/FKM/PTFE

2''         FIG 602/1002/1502  NBR/HNBR/FKM/PTFE (Brass/stainless back up)

3''         FIG 602/1002/1502 NBR/HNBR/FKM/PTFE (Brass/stainless back up)

4''         FIG 602/1002/1502 NBR/HNBR/FKM/PTFE (Brass/stainless back up)

2''         FIG 206 NBR/HNBR/FKM/PTFE (Brass/stainless back up)

3''         FIG 206 NBR/HNBR/FKM/PTFE (Brass/stainless back up)

4''         FIG 206 NBR/HNBR/FKM/PTFE (Brass/stainless back up)



Detailed Photos

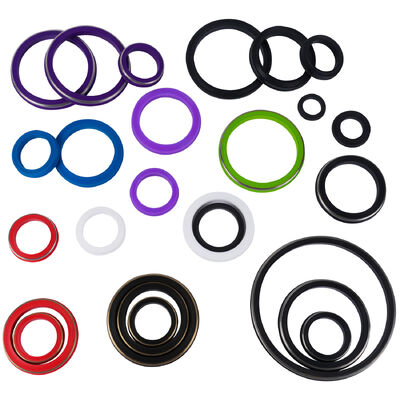

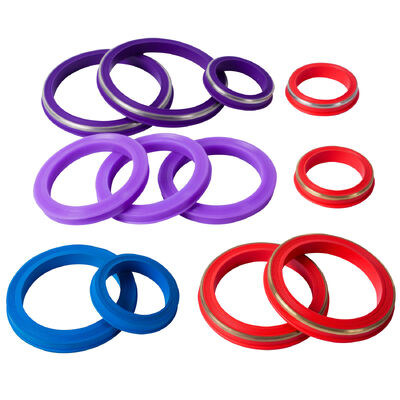

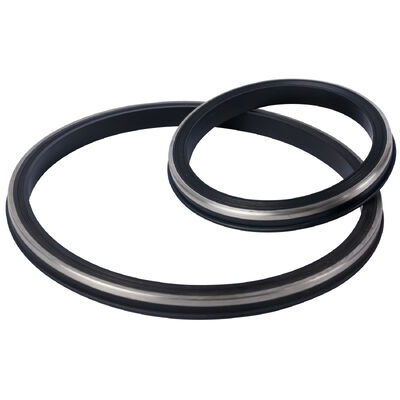

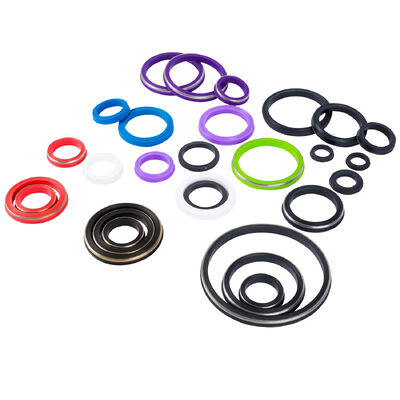

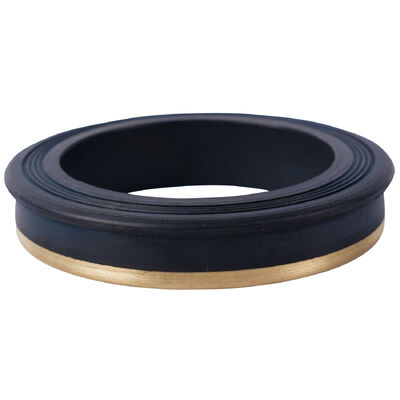

80 Shore A Nitrile HNBR PTFE FKM Rubber Hammer Union Seals For Oilfield80 Shore A Nitrile HNBR PTFE FKM Rubber Hammer Union Seals For Oilfield

80 Shore A Nitrile HNBR PTFE FKM Rubber Hammer Union Seals For Oilfield80 Shore A Nitrile HNBR PTFE FKM Rubber Hammer Union Seals For Oilfield

80 Shore A Nitrile HNBR PTFE FKM Rubber Hammer Union Seals For Oilfield80 Shore A Nitrile HNBR PTFE FKM Rubber Hammer Union Seals For Oilfield

80 Shore A Nitrile HNBR PTFE FKM Rubber Hammer Union Seals For Oilfield80 Shore A Nitrile HNBR PTFE FKM Rubber Hammer Union Seals For Oilfield

 Company and factory introduction


80 Shore A Nitrile HNBR PTFE FKM Rubber Hammer Union Seals For Oilfield80 Shore A Nitrile HNBR PTFE FKM Rubber Hammer Union Seals For Oilfield80 Shore A Nitrile HNBR PTFE FKM Rubber Hammer Union Seals For Oilfield80 Shore A Nitrile HNBR PTFE FKM Rubber Hammer Union Seals For Oilfield

Shangahi Qinuo Industry Co., Ltd was established in the year of 2013 at Shanghai Free Trade Zone, we are a new and high-tech enterprise integrating R&D, production and sales. Since its inception, we adhering to the "Quality for Survival, Innovation Competes For Development " concept, continuous development and innovation, we won a good reputation at home and abroad, Qinuo has a brand name "SHQN® ".

Qinuo provides professional rubber parts, plastic parts and maching parts design and production services, products mainly used in oil & gas industry, automobiles, household appliances, machinery equipment etc. We have a professional production and sales team, "High-Quality, High Professionalism, High Efficiency" are the principles of doing things.

Under the Shanghai Qinuo, we have two wholly-owned factories in Nantong City, only an hour's drive to Shanghai Pudong Airport or Shanghai Sea port to ensure the quick delivery, we have more than 30 rubber vulcanizing machines and relevanted equipments, so that Qinuo can produce more than 20 kinds of rubber rings or other rubber products together to meet our customer's demands, our monthly rubber processing capability can upto 20 tons (about 40, 000 lbs) or more. And Qinuo is still in rapid growthing.

We adopt comprehensive quality management system based on the ISO9001, our products are mainly exported to the United States, Canada, Britain, Germany, Finland, Australia more than 100 countries extend all over the globe. Qinuo is sincerely wishing to cooperate with you.



 Related rubber products


80 Shore A Nitrile HNBR PTFE FKM Rubber Hammer Union Seals For Oilfield80 Shore A Nitrile HNBR PTFE FKM Rubber Hammer Union Seals For Oilfield80 Shore A Nitrile HNBR PTFE FKM Rubber Hammer Union Seals For Oilfield

       Rubber o ring                                                        Rubber Swab Cup                                  Oil Saver Rubber

80 Shore A Nitrile HNBR PTFE FKM Rubber Hammer Union Seals For Oilfield80 Shore A Nitrile HNBR PTFE FKM Rubber Hammer Union Seals For Oilfield80 Shore A Nitrile HNBR PTFE FKM Rubber Hammer Union Seals For Oilfield

   Rubber Cable Protector                                            Redress Kit                                               Plug Valve Soft Seal Kit



Our advantage


1. We have our own factory in Nantong, Jiangsu, so we can guarantee high quality with a favorable price.
2. We have our sales department and production department, so we provide a range of process services to customers.
3. We accept multiple payment methods, including T/T, Paypal, etc.
4. We accept multiple Transportation methods, by sea, by air, by express or by truck.
If you have any needs about oil and gas parts, please contact us!





80 Shore A Union Seal Enquiries: Keep Rubber Hardness Separate from PTFE Selection

For an 80 Shore A rubber seal enquiry, identify the exact NBR, HNBR or FKM compound and the required hardness tolerance. Confirm the test scale on the drawing and inspection requirements. A matching hardness value does not make different rubber compounds equivalent in oilfield fluids.

PTFE is a thermoplastic and requires its own grade, geometry and support design review. Specify PTFE separately rather than applying the rubber hardness requirement to every material in the range. Confirm any PU alternative with its own grade and dimensional specification.

Provide the union figure, maker drawing and nominal size together with actual fluid, temperature cycle and gas exposure. Approve lip section and rubber-only, brass-backed or stainless-backed construction against the original groove. Confirm the complete union pressure specification and required material documents before placing an order.
