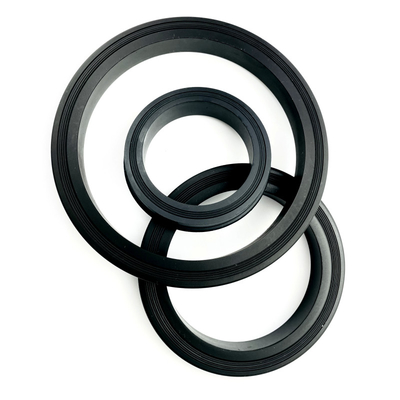

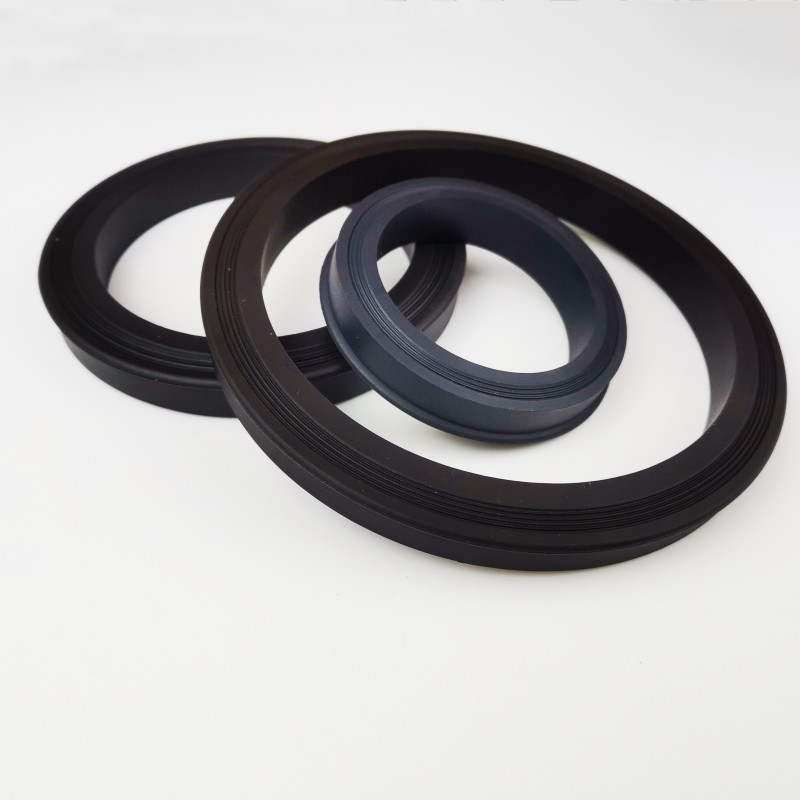

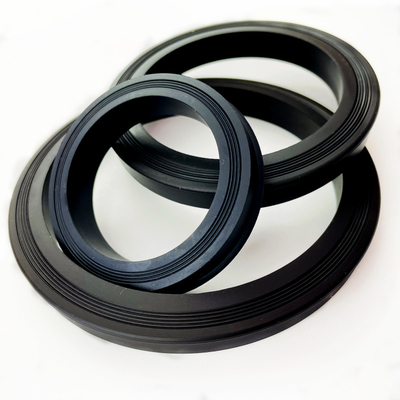

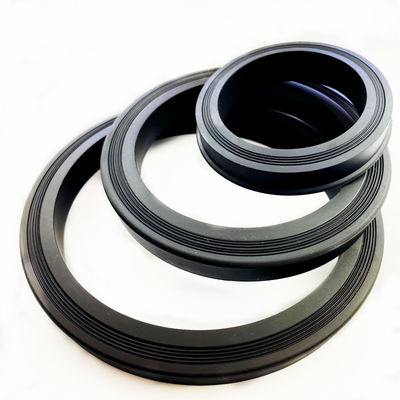

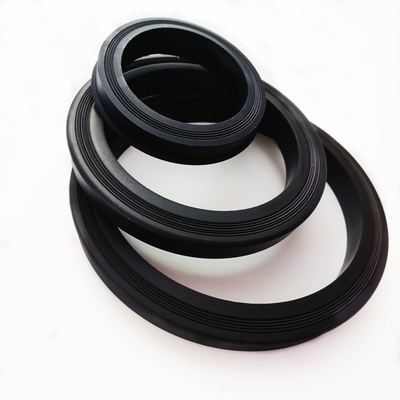

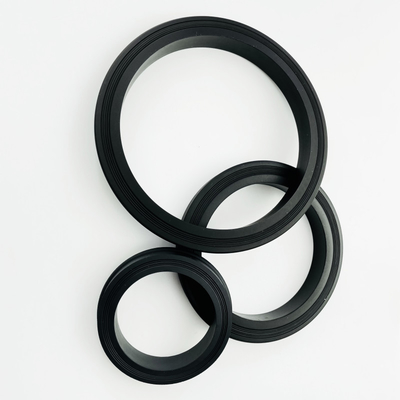

Seal Ring WECO Union Seal 2" 3" 4"Fig 602 1002 1502

2, 3 and 4 Inch Union Seals: FIG 602, 1002 and 1502 Matching

Hammer union seals are used in the connections between flexible hoses or pipes used in the oil drilling industry. The seal provides a critical fluid tight connection within the union hardware.

Hammer unions consist of a thread end, a nut end, and a hammer nut that when tightened seal the assembly with the assistance of an elastomeric seal. Lip and retention geometry depend on the exact union design; confirm the part drawing.
Some profiles such as Fig 2202, Fig 1004, Fig 1502, Fig 2002, Fig 602, Fig 1002 etc require a Hammer Union Lip Seal or an 'O'Ring depending on the Size of the Hammer Union.

offers 2",3", and 4" Hammer Union Seals in nitrile, FKM or HNBR compounds selected for the specified fluid and service conditions. Sour-gas suitability requires compound-specific qualification. In addition to the standard molded rubber seals, we offer these with either a brass or stainless steel anti-extrusion ring. Also available in PTFE.

Build a Figure-and-Size Replacement List

For a mixed order, list each FIG 602, FIG 1002 or FIG 1502 connection separately with nominal size, seal part reference and quantity. Do not assume that every listed figure uses the same seal in a given size. Confirm the lip or O-ring profile and any back-up ring against the actual union drawing.

The 2, 3 and 4 inch references describe nominal connections, not seal inner or outer diameters. Include the approved material compound and construction with each item, and use the complete assembly documentation for pressure and temperature requirements.

Related Products

 Our  comapany

Shanghai Qinuo Industry

Shanghai Qinuo Industry Co., Ltd, established in 2013 within the Shanghai Free Trade Zone, is a pioneering high-tech enterprise specializing in the integration of research and development, production, and sales. Embracing the ethos of "Quality for Survival, Innovation for Development," we have garnered a stellar reputation domestically and internationally under the esteemed brand names of "Royal Way^®" and "SHQN^®".

We can also according to customers requirement to provide various kinds of mixing rubber.Since its inception, we adhering to the "Quality for Survival, Innovation Competes For Development " concept, continuous development and innovation, we won a good reputation at home and abroad.

Our company provides professional plastic parts, rubber parts and maching parts design and production services, products mainly used in automobiles, household appliances, machinery equipment and oil industry and other fields. We have a professional production and sales team, "High-Quality, High Professionalism, High Efficiency" are the principles of doing things.

We have two factories, more than 30 injection molding machines, molding machines and CNC lathes. Our company is located in Pudong New Area, Shanghai. Elegant environment, convenient transportation, Only need 30 minutes from our company to Pudong Airport.

We adopt comprehensive quality management system, material compliance documentation is confirmed for the specified product when required, our products are mainly exported to the United States, Canada, Britain, Germany, Finland, New Zealand, Australia and other countries and regions.

Packing &  Delivery

Port: Shanghai Port MOQ: 1,000 pieces

Supply ability: 500,000 pieces/month Payment terms: T/T,Western Union, Paypal, L/C

Packaging: Standard export packing Delivery time: 7-15 days, depends on quantity

F&Q

Q1. What is your terms of payment?
A: We could accept PayPal or bank transfer, subject to the agreed quotation. We'll show you the photos of the products and packages
before you pay the balance.

Q2. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.

Q3. How about your delivery time?
A: Generally, it will take 10 to 21 work-days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.

Q4.Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q5.What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.

Q6.How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
