Product Description:
HNBR rubber hammer union replacement seals are specified for the identified flowline union and its operating fluid. For Figure 602 or 1502 enquiries, provide manufacturer, nominal connection size and a dimensioned seal section. NBR and FKM alternatives require separate compound selection for the same service.
Match the sealing lip, ring section and any brass backing to the union recess. Nominal connection size alone does not identify the replacement part or establish interchangeability between figures.
Due to the criticality of the hammer union seal assembly, it is vital that it is constructed using high-quality materials, tested for durability and functionality, and regularly inspected and maintained for any signs of wear and tear to avoid any potential accidents in the oil and gas industry.
For a replacement enquiry, include inspection findings, required quantity and whether the ring and backing are needed together. Follow the equipment inspection procedure before returning the complete union to service.
Features:
- Product Name: Hammer Union Seal
- Hardness: Per compound grade and approved part specification
- Cost-Effective: Affordable And Cost-effective Option
- Shape: annular seal with figure-specific lip and section
- Temperature: Per selected compound and confirmed continuous/peak temperatures
- Package: Carton Box
HNBR, NBR and FKM hammer union rings have figure-specific sealing profiles. Specify compound grade, hardness and service temperature for the selected part; these materials do not share a universal temperature range. Carton packing is listed for shipment.
Technical Parameters:
| Package |
Carton Box |
| Chemical Resistance |
Compatibility reviewed against specified chemicals, additives and temperature |
| Keyword |
HNBR Rubber Union Seal, NBR/FKM/HNBR Weco Seals, Hammer Union Seals, 1502/602 Hammer Union Seals |
| Hardness |
Per compound grade and approved part specification |
| Cost-Effective |
Affordable And Cost-effective Option |
| Temperature |
Per selected compound and confirmed continuous/peak temperatures |
| Brand Name |
Royal Way |
| Compatibility |
Per actual fluid or gas composition and compound qualification |
| Application |
Oil And Gas Industry |
| Available Size |
1,1.5,2,3,4 Inch |
Applications:
For nominal 1, 1-1/2, 2, 3 and 4-inch enquiries, confirm each part drawing independently. HNBR material alone does not establish sour-gas suitability; provide H2S concentration, pressure, temperature and decompression conditions for compound qualification.

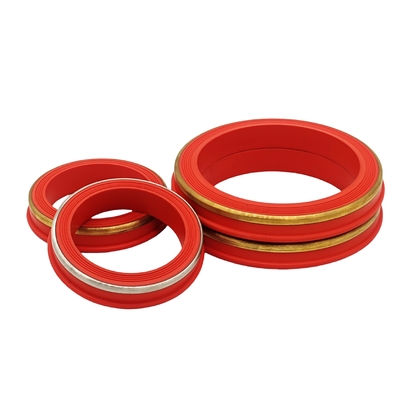

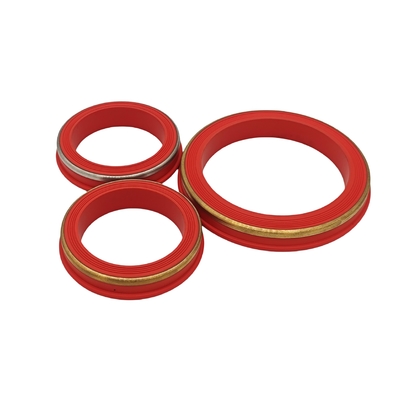

Brass backing options must match the ring and recess geometry. Specify backing dimensions and construction with the order. Working pressure and testing follow the complete rated union assembly, rather than the backing material alone.
Our manufacturing quality management system is ISO 9001 certified. Confirm product-specific dimensional, material and testing requirements separately for the selected union seal.
Whether you are working in drilling, fracking, or other oil and gas applications, the Royal Way Hammer Union Seal product is an excellent choice. With a minimum order quantity of just 100 pieces, these seals are also highly customizable, allowing you to tailor them to your specific needs and requirements.
The Hammer Union Seal product is priced competitively, with prices ranging from EXW$0.2/PC-$3/PC, making them an affordable and cost-effective sealing solution. With a supply ability of up to 50,000 pieces per week and a delivery time of just 7-15 days, you can rely on the Royal Way Hammer Union Seal product to meet your needs quickly and efficiently.
Whether you are looking for a reliable sealing solution for high-pressure oil and gas applications or other industrial applications, the Royal Way Hammer Union Seal product is an excellent choice. Contact us today to learn more about this product and how it can meet your specific needs and requirements.
Customization:
- Brand Name: Royal Way
- Model Number: Hammer union seals
- Place of Origin: Shanghai, China
- Certification: ISO9001
- Minimum Order Quantity: 100PCS
- Price: EXW$0.2/PC-$3/PC
- Packaging Details: Custom packing or standard packing
- Delivery Time: 7-15days
- Payment Terms: T/T, Paypal
- Supply Ability: 50000pcs per week
- Size: 1, 1.5, 2, 3, 4
- Chemical Resistance: Compatibility reviewed against specified chemicals, additives and temperature
- Cost-Effective: Affordable And Cost-effective Option
- Application: Oil And Gas Industry
- Hardness: Per compound grade and approved part specification
Customizable options include:
- Weco Seal Rings FKM
- Rubber Union Seal Rings
- NBR/FKM/HNBR Weco Seals
Support and Services:
The Hammer Union Seal product technical support and services include:
- Expert technical assistance on product applications and installation
- Product troubleshooting and problem-solving
- Training and education on product features and maintenance
- Product repair and replacement services
- Customized product solutions to meet specific customer needs
- Regular product maintenance and inspection services to ensure optimal performance
Packing and Shipping:
FAQ:
1.Q: What is the brand name of the hammer union seals?
A: The brand name of the hammer union seals is Royal Way.
2.Q: What is the model number of the hammer union seals?
A: The model number of the hammer union seals is Hammer union seals.
3.Q: What is the minimum order quantity for the hammer union seals?
A: The minimum order quantity for the hammer union seals is 100PCS.
4.Q: What is the price range of the hammer union seals?
A: The price range of the hammer union seals is EXW$0.2/PC-$3/PC.
5.Q: What is the delivery time for the hammer union seals?
A: The delivery time for the hammer union seals is 7-15 days.
