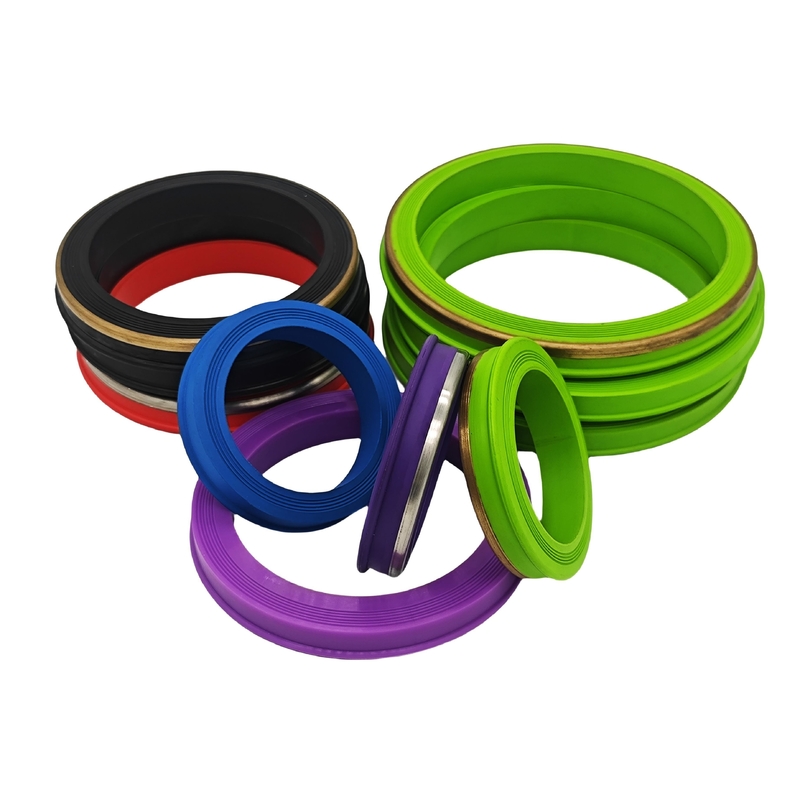

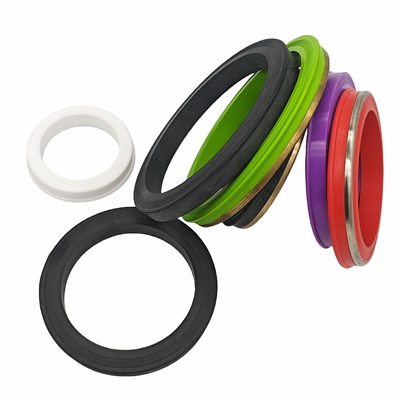

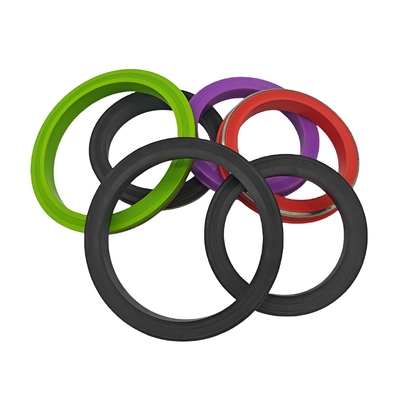

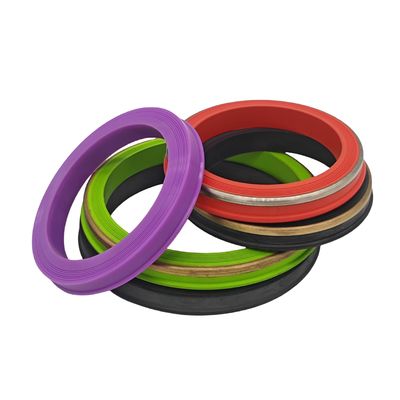

Product Description:
This hammer union seal is a replacement component for the specified union figure and nominal size. Confirm the sealing lip and mounting dimensions against themating hardware and approved drawing before assembly. Select the compound for the actual fluid exposure, temperature and required complete-union operating conditions.
The rubber seal forms part of the union connection and must match the approved profile.Specify any brass or stainless-steel backup and its dimensions separately. Inspect the seal and mating components before installation to the union instructions.
Features:
- Pressure Requirements: Use the rating and qualification of the specified complete union assembly. A seal alone does not establish a 1,000–5,000 psi or 6,000–15,000 psi service rating.
- Replacement Fit: Confirm the union figure, nominal size, part reference and drawing revision. Check mounting and sealing dimensions before approving interchangeability.
- Sealing Profile: Confirm the lip and cross-section on the drawing. An annular hammer union seal is not automatically interchangeable with a standard O-ring.
- Material Selection: Specify NBR, HNBR or FKM compound for the fluid and temperature exposure. PTFE requires a separate design review. Where used, define the metal backup grade and interface geometry.
Technical Parameters:
| Product Name |
Hammer Union Seal/Rubber Seal |
| Size |
1 Inch-7 Inch |
| Temperature Range |
Compound-specific temperature limits; qualify actual service |
| Usage |
Fluid Tight Connection |
| Shape |
Round |
| Pressure |
Requested 6,000–15,000 psi; rating by specified complete union assembly |
| Package |
Plastic Bag+Carton Box |
| Application |
Oil & Gas Industry |
| Surface Treatment |
Rubber surface and backup finish by approved drawing |
| Features |
Service suitability by compound and complete-assembly qualification |
Applications:
The Royal Way Hammer Union Seal is a high-quality rubber seal product designed for use in the oil and gas industry. These seals are specifically designed to create a fluid tight connection between pipes, making them an essential component in drilling and production operations.
Royal Way uses an ISO 9001 quality management system. Figure 1502 and Figure 602 replacements require the corresponding seal drawing and mating geometry. Agree material documentation and inspection or assembly-test acceptance requirements with the order.

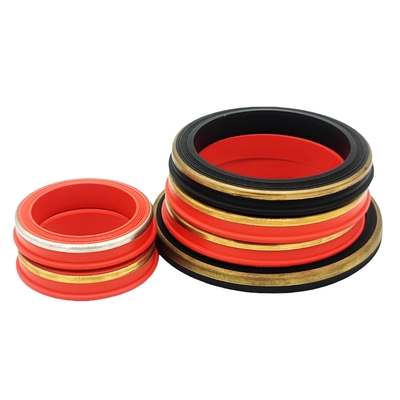

All-rubber, brass-backed and stainless-steel-backed constructions require their own specified profile. Confirm the backup dimensions, alloy or steel grade and rubber-to-metal interface where used.
For drilling, completion or production connections, identify the actual union assembly and operating envelope. Review fluid composition, temperature, exposure time and differential pressure with the selected compound.
We have a minimum order quantity of 100PCS and offer a competitive price range of EXW$0.2/PC-$3/PC. We can provide custom packaging or standard packing based on your requirements. Our delivery time is 7-15 days, and we accept payment methods such as T/T and Paypal. We have a monthly supply capacity of up to 100,000pcs.
Choose Royal Way Hammer Union Seal for a reliable and high-quality sealing solution that meets your oil and gas industry needs.
Customization:
Specify black or custom color separately from compound selection. Provide the union figure, finished dimensions and required backup construction, and confirm packing and delivery arrangements with the quotation.
For custom production, include the drawing revision, tolerances, nominal hardness and required sample inspection. Material and complete-assembly test criteria must be agreed for the intended service.
Support and Services:
For replacement assistance, send the union reference, approved drawing or sample and observed seal condition. Inspect mating hardware and replace damaged seals to the approved specification before installation.
Packing and Shipping:
Product Packaging:
- Each Hammer Union Seal is individually packed in a plastic bag.
- The plastic bag is then placed in a cardboard box.
- The cardboard box is labeled with the product name, size, and quantity.
Shipping:
- Confirm express, air or sea shipment by destination and final packing.
- Shipping charges are based on the weight and destination of the order.
- Confirm order processing and dispatch timing with the quotation.
- A tracking number will be provided once the order has shipped.
FAQ:
Q: What is the brand name of the hammer union seals?
A: The brand name of the hammer union seals is Royal Way.
Q: Where is the place of origin of the hammer union seals?
A: The hammer union seals are made in Shanghai, China.
Q: What is the certification of the hammer union seals?
A: ISO 9001 relates to our quality management system. Material and complete-assembly acceptance requirements are agreed separately.
Q: What is the minimum order quantity for the hammer union seals?
A: The minimum order quantity for the hammer union seals is 100PCS.
Q: What is the price range of the hammer union seals?
A: The price range of the hammer union seals is EXW$0.2/PC-$3/PC.
Q: What are the packaging details for the hammer union seals?
A: The hammer union seals can be packed in custom packing or standard packing.
Q: What is the delivery time for the hammer union seals?
A: The delivery time for the hammer union seals is 7-15 days.
Q: What are the payment terms for the hammer union seals?
A: The payment terms for the hammer union seals are T/T and Paypal.
Q: What is the supply ability of the hammer union seals?
A: The hammer union seals have a supply ability of 100000pcs per month.
