Product Description:

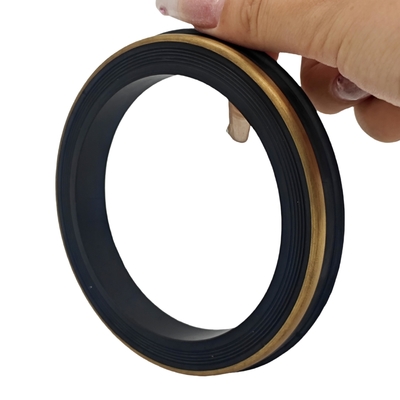

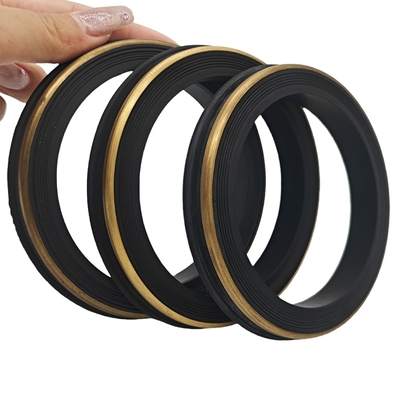

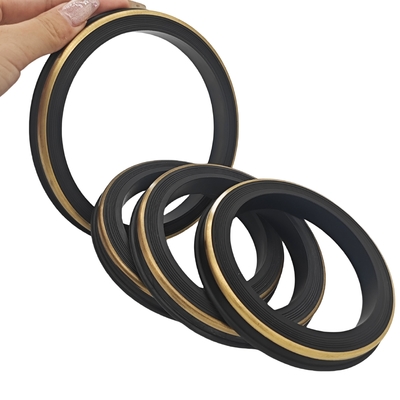

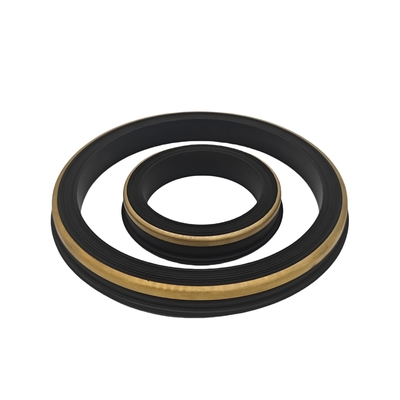

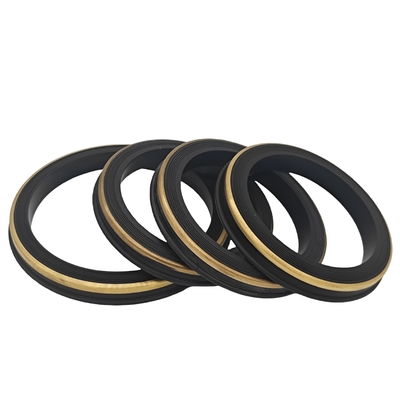

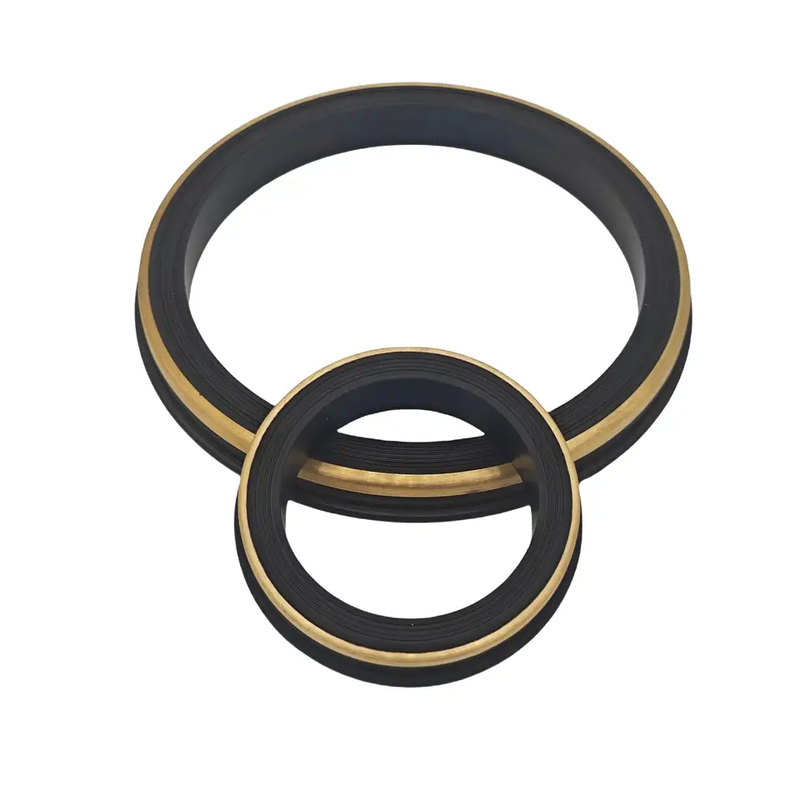

Hammer union seal rings are replacement components for the union figure, nominal size and part revision specified on the approved drawing. Check the rubber lip and mounting profile against the mating hardware. Select the compound and any backup construction for the actual fluid, temperature and complete-union pressure requirements.
Features:
- Product Name: Hammer Union Seal/Rubber Seal
- Temperature Range: Compound-specific limits; qualify actual service
- Features:
- Pressure suitability by complete-union qualification
- Fluid compatibility by selected compound
- Temperature suitability by selected compound
- Chemical exposure review required
- Package: Plastic Bag+Carton Box
- Application: Oil & Gas Industry
- Figure 1502 or 602 replacement fit requires exact assembly dimensions
Technical Parameters:
| Product Name |
Hammer Union Seal/Rubber Seal |
| Shape |
Round |
| Color |
Black Or Custom Color |
| Usage |
Fluid Tight Connection |
| Temperature Range |
Compound-specific limits; qualify for actual service |
| Package |
Plastic Bag+Carton Box |
| Application |
Oil & Gas Industry |
| Features |
Service suitability by compound and complete-assembly qualification |
| Surface Treatment |
Rubber surface and backup finish by approved drawing |
| Pressure |
Requested 6,000–15,000 psi; rating by specified complete union assembly |
Applications:
For Figure 1502, Figure 602 or Weco-pattern replacement seals, specify the exact figure, size and part reference. Confirm finished seal dimensions, lip geometry and backup construction before approving fit.
Nominal connection sizes must be distinguished from finished seal dimensions. For custom parts, provide inside diameter, outside diameter, height and profile tolerances with the drawing revision. Color is specified separately from the compound.
Royal Way uses an ISO 9001 quality management system. Agree material documentation, dimensional inspection and complete-assembly test acceptance requirements separately with the order.
Include operating temperature, fluid composition, exposure time and differential-pressure requirements with the replacement enquiry. Send a drawing or representative sample for geometry review.
Customization:
For a Figure 1502 replacement order, specify the part reference, nominal size, approved drawing and required compound. Confirm quotation, packing and delivery arrangements for the agreed quantity.
The seal must be qualified within the specified complete union assembly. The requested 6,000–15,000 psi range and temperature requirements do not apply automatically to every compound or seal size.
Trust Royal Way for your Hammer Union Seal customization needs.
Support and Services:
Inspect the rubber sealing surface and backup interface before installation. Verify the part revision and mating hardware dimensions against the assembly instructions.
Our technical support team is available to provide assistance with product selection, installation, and troubleshooting. We can also provide training on proper use and maintenance of the Hammer Union Seal.
Replace worn or damaged seals to the approved specification and inspect mating hardware for damage. Describe the observed wear and service conditions when requesting replacement assistance.
For more information on our Hammer Union Seal product technical support and services, please contact us.
Packing and Shipping:
Product Packaging:
Pack the approved seals in protective bags and cartons. Agree quantity per carton, carton dimensions and identification labels according to the seal size and order.
Shipping:
Confirm express, air or sea shipment and destination-specific transit time with the quotation. Processing and dispatch timing are agreed for the approved order.
FAQ:
Q: What is the brand name of the product?
A: The brand name of the product is Royal Way.
Q: What is the model number of the product?
A: The model number of the product is Hammer union seals.
Q: What is the place of origin of the product?
A: The product is manufactured in Shanghai, China.
Q: What is the minimum order quantity for the product?
A: The minimum order quantity for the product is 100PCS.
Q: What is the price range of the product?
A: The price range of the product is EXW$0.2/PC-$3/PC.
Q: What are the packaging details of the product?
A: The product can be packed in custom packing or standard packing as per the requirement of the customer.
Q: What is the delivery time for the product?
A: The delivery time for the product is 7-15 days.
Q: What are the payment terms for the product?
A: The payment terms for the product are T/T and Paypal.
Q: What is the supply ability of the product?
A: The supply ability of the product is 100000pcs per month.
Q: What certification does the product have?
A: ISO 9001 relates to our quality management system. Material and complete-assembly acceptance requirements are agreed separately for the specified seal.
