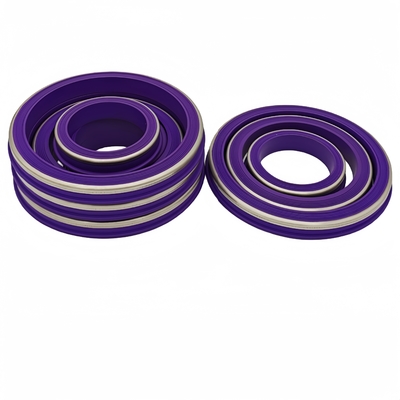

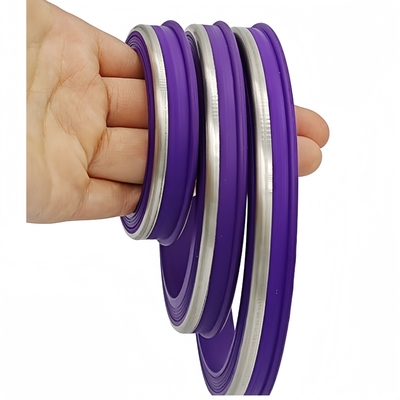

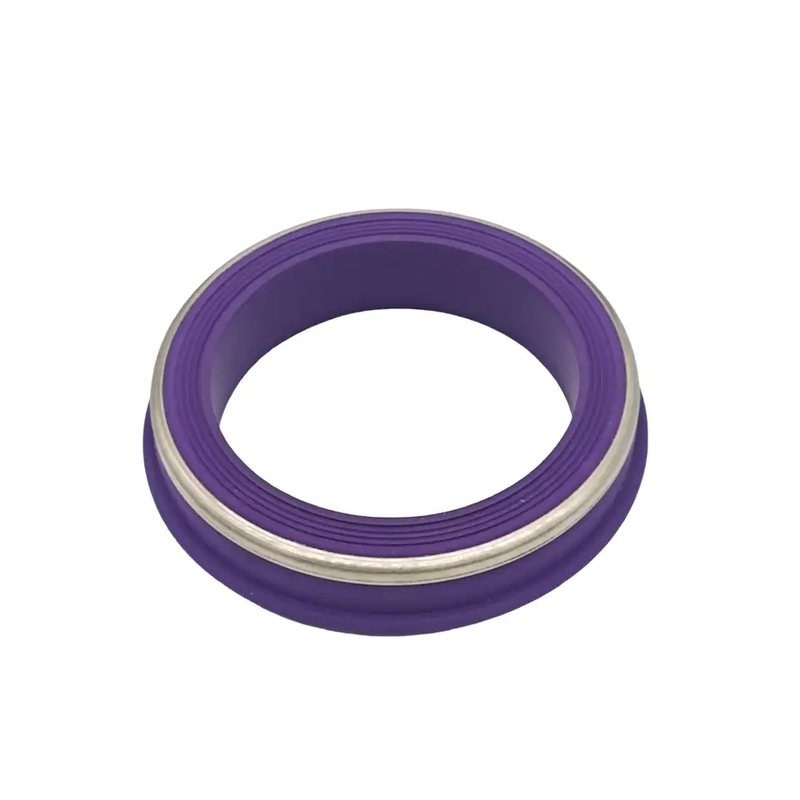

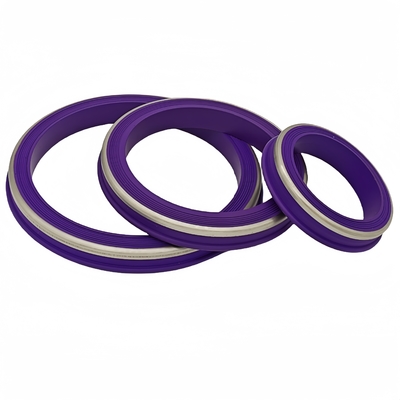

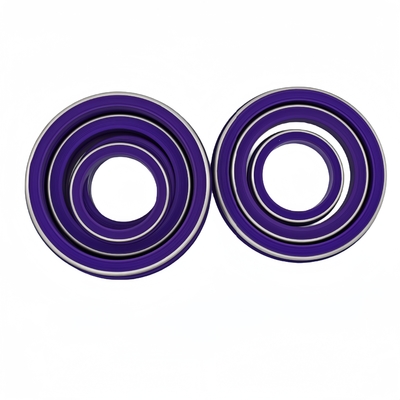

Product Description:
Brass-backed hammer union seal options require the exact union figure, nominal size and approved seal drawing. Select the elastomer compound for the fluid composition, operating temperature and exposure time. The service limits of the complete union assembly must be confirmed before use.
For a brass backup design, specify the alloy, backup dimensions and interface with the rubber sealing profile. Confirm mounting fit and dimensional tolerances rather than assuming that a backup ring fits every union of the same nominal size.
NBR, FKM and HNBR options are reviewed for the actual service requirements. PTFE designs require their own geometry and material review. A material family name alone does not establish temperature, chemical or sour-gas suitability.
Our Hammer Union Seal is packaged in a convenient plastic bag and shipped in a sturdy carton box, ensuring that it arrives at your location in perfect condition.
Send the union figure, part reference and drawing or representative sample for a replacement quotation. Include the required compound, backup construction, quantity and complete-assembly qualification requirements.
Features:
- Product Name: Hammer Union Seal/Rubber Seal
- Usage: Fluid Tight Connection
- Color: Black Or Custom Color
- Material: NBR/FKM/HNBR/PTFE
- Size: 1 Inch-7 Inch
- NBR/FKM/HNBR Weco Seals
- Brass Back up Seal Rings for Hammer Union
- Weco Seal Rings FKM
Technical Parameters:
| Product Name |
Hammer Union Seal/Rubber Seal |
| Features |
Defined by selected compound and complete-union qualification |
| Size |
1 Inch-7 Inch |
| Temperature Range |
Compound-specific limits; qualify for actual service |
| Shape |
Round |
| Package |
Plastic Bag+Carton Box |
| Pressure |
Requested 6,000–15,000 psi; exact rating by complete union assembly |
| Material |
NBR HNBR FKM PTFE |
| Application |
Oil & Gas Industry |
| Usage |
Fluid Tight Connection |
Applications:
Royal Way supplies hammer union seals for specified oilfield connections. Confirm the required elastomer and backup construction against the union drawing. ISO 9001 relates to our quality management system; product and assembly acceptance requirements are agreed separately.
For a Weco-pattern or Figure 1502/602 replacement, identify the exact figure, nominal size and part revision. Review the seal lip and brass backup geometry with the mating hardware. Similar appearance or nominal size does not establish interchangeability.
When it comes to ordering Hammer Union Seals, the Royal Way product is available in a range of different sizes, from 1 inch to 7 inches. The minimum order quantity is 100pcs, and the price range is between $0.2/PC-$3/PC, depending on the size and quantity ordered. The seals are shipped in plastic bags and carton boxes, with custom or standard packing options available. Delivery time is typically between 7-15 days, and payments can be made through T/T, or Paypal. With a supply ability of 100,000pcs per month, you can be confident that you'll receive your order on time and with the quality you expect from Royal Way.
Black or custom color can be specified separately from the compound. Inspect the rubber sealing surfaces and backup interface before installation, and follow the assembly instructions for the specified union.
Customization:
Brand Name: Royal Way
Model Number: Hammer union seals
Place of Origin: Shanghai, China
Certification: ISO9001
Minimum Order Quantity: 100PCS
Price: EXW$0.2/PC-$3/PC
Packaging Details: Custom packing or standard packing
Delivery Time: 7-15days
Payment Terms: T/T, Paypal
Supply Ability: 100000pcs per month
Temperature Range: Compound-specific limits; qualify actual service
Color: Black Or Custom Color
Pressure: Requested 6,000–15,000 psi; rating by complete union assembly
Material: Specify elastomer compound and brass backup alloy by drawing
Application: Oil & Gas Industry
Support and Services:
Technical review starts with the specified union drawing, part reference and operating conditions. Agree material documentation, dimensional inspection and required assembly tests with the order.
For a worn or damaged seal, inspect the mating hardware and replace the seal to the approved specification. Provide the wear pattern and service conditions when requesting a replacement review.
We are committed to providing excellent customer service and will work with you to address any concerns or needs that you may have. Contact us for more information about our technical support and services.
Packing and Shipping:
Product Packaging:
- Each Hammer Union Seal is packed in a plastic bag to prevent contamination.
- The plastic bag is then placed in a small cardboard box.
- Multiple boxes are then packed in a larger cardboard box for shipping.
Shipping:
- Shipping is handled by our trusted courier partners.
- Confirm dispatch timing with the quotation and approved order.
- Transit time depends on the destination, shipment method and carrier schedule.
- Customers will receive tracking information once the order has been shipped.
FAQ:
Q1: What is the brand name of the Hammer Union Seal product?
A1: The brand name of the Hammer Union Seal product is Royal Way.
Q2: What is the minimum order quantity for the Hammer Union Seal product?
A2: The minimum order quantity for the Hammer Union Seal product is 100PCS.
Q3: What is the price range of the Hammer Union Seal product?
A3: The price range of the Hammer Union Seal product is between EXW$0.2/PC-$3/PC.
Q4: What are the payment terms for the Hammer Union Seal product?
A4: The payment terms for the Hammer Union Seal product are T/T and Paypal.
Q5: What is the supply ability of the Hammer Union Seal product?
A5: The supply ability of the Hammer Union Seal product is 100000pcs per month.
