Product Description:

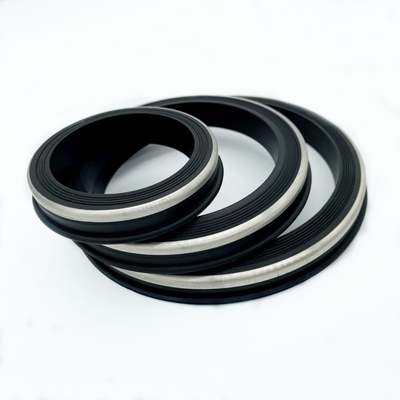

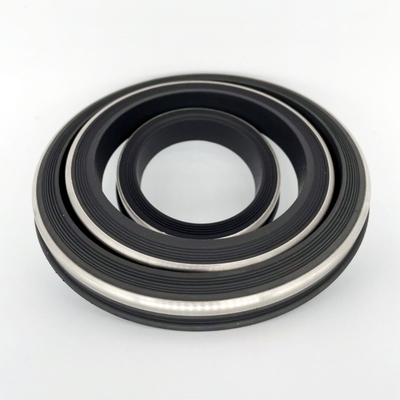

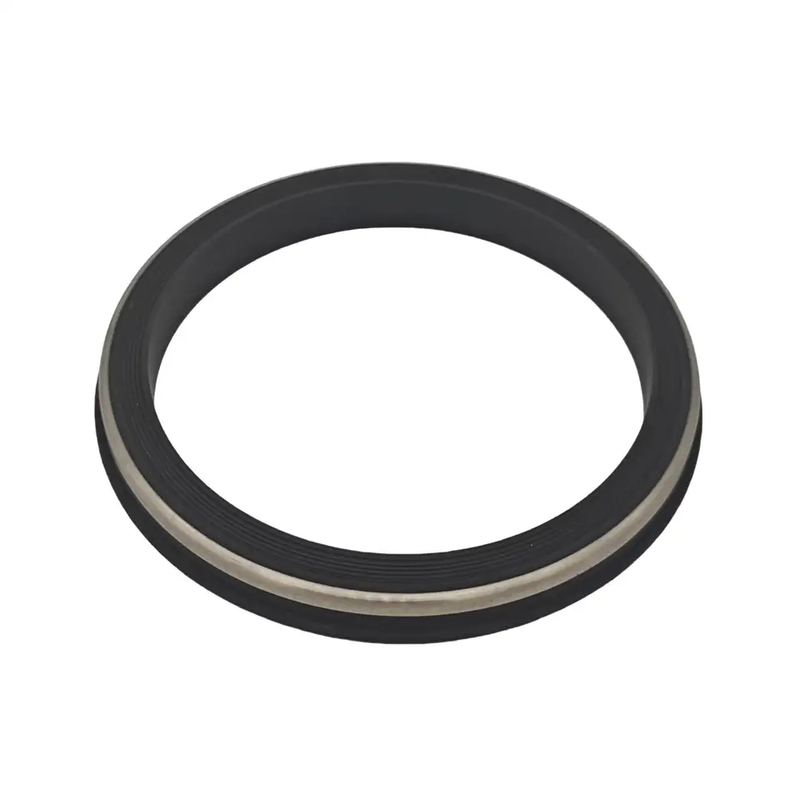

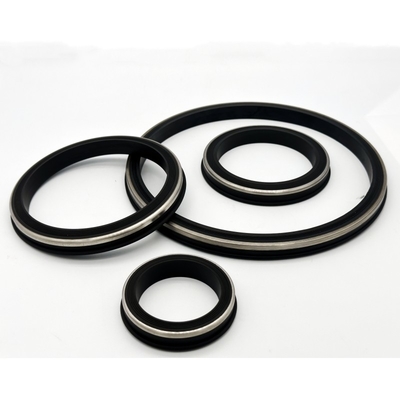

Stainless-steel-backed hammer union seal options are selected for the specified union figure and nominal size. Confirm the rubber lip profile, finished dimensions and stainless-steel backup geometry on the approved drawing. Temperature and pressure capability must be established for the selected compound and complete union assembly.
The Hammer Union Seal is delivered in a package that includes a plastic bag and a carton box. This packaging ensures that the product arrives at its destination in perfect condition and ready for use.
The rubber seal and metal backup work within the specified union hardware. Review mounting fit, support clearances and fluid exposure together. Nominal connection size does not establish interchangeability between union figures or seal constructions.
Features:
- Product Name: Hammer Union Seal
- Color: Black Or Custom Color
- Application: Oil & Gas Industry
- Shape: Round
- Size: 1 Inch-7 Inch
- Usage: Fluid Tight Connection
- Stainless Steel Back up Seal Rings for Hammer Union
- Weco Seal Rings
- Hammer Union Seals
Technical Parameters:
| Product Name |
Hammer Union Seal/Rubber Seal |
| Usage |
Fluid Tight Connection |
| Features |
Service suitability by compound and complete-assembly qualification |
| Surface Treatment |
Rubber surface and metal backup finish by approved drawing |
| Shape |
Round |
| Material |
NBR HNBR FKM PTFE |
| Color |
Black Or Custom Color |
| Pressure |
Requested 6,000–15,000 psi; rating by specified complete union assembly |
| Package |
Plastic Bag+Carton Box |
| Temperature Range |
Compound-specific limits; qualify for actual service |
Applications:
For a stainless-steel-backed replacement, specify steel grade, backup dimensions and the interface with the rubber profile. Brass-backed and all-rubber versions are separate constructions and require their own drawing review.
Select NBR, HNBR or FKM for the actual fluid and temperature exposure. PTFE options require a separate design review. ISO 9001 relates to our quality management system; material and assembly-test acceptance requirements are agreed separately.
For a Weco-pattern or Figure 1502 replacement, provide the exact union figure, nominal size, part reference and revision. Verify finished seal dimensions and backup construction against the mating hardware.
The Hammer Union Seal is available for order in a minimum quantity of 100PCS. The price for the product ranges from EXW$0.2/PC-$3/PC, depending on the quantity ordered. The product can be packaged using standard or custom packing, depending on the customer's preference. The delivery time for the product is 7-15 days, and payment can be made using T/T or Paypal. The product also has a supply ability of 100000pcs per month, which ensures that customers can always access the product when they need it.
Inspect the sealing surface and backup interface before installation. For a replacement quotation, include the drawing or representative sample, selected compound, backup specification and required operating envelope.
Customization:
With a minimum order quantity of 100PCS, our Hammer Union Seals are priced at EXW$0.2/PC-$3/PC and come with the option of custom or standard packaging.
Our delivery time is 7-15 days and we accept payment via T/T and Paypal. With a supply ability of 100000pcs per month, we offer round shaped Hammer Union Seals in sizes ranging from 1 inch to 7 inches.

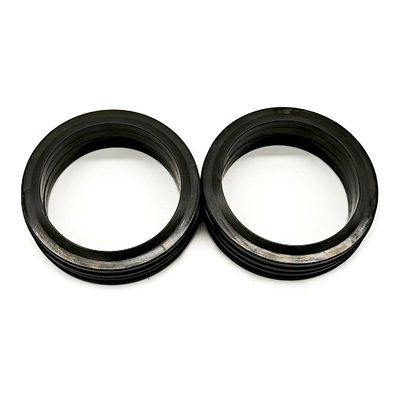

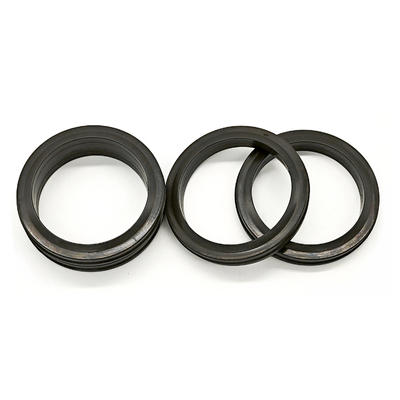

Specify the required all-rubber, brass-backed or stainless-steel-backed construction with the order. Confirm the elastomer, backup grade and finished dimensions. The complete assembly must be qualified for the intended pressure, temperature and fluid exposure.
Support and Services:
Technical review can cover the replacement drawing, compound selection and inspection requirements. Provide the tool reference and observed seal condition when requesting assistance. Replace damaged seals to the approved specification and inspect the mating hardware.
Packing and Shipping:
Product Packaging:
- The Hammer Union Seal product will be packed in a sturdy cardboard box.
- The box will be properly labeled with the product name, quantity, and specifications.
- The Hammer Union Seal will be securely placed within the box with adequate cushioning to avoid damage during transit.
Product Shipping:
- The Hammer Union Seal product will be shipped via a reputable courier service.
- The customer will be provided with a tracking number to monitor the shipment.
- The estimated delivery time will be communicated to the customer upon placing the order.
- The customer is advised to inspect the product upon receipt to ensure that it has not been damaged during transit.
FAQ:
Q: What is the brand name of the hammer union seals?
A: The brand name of the hammer union seals is Royal Way.
Q: What is the minimum order quantity for the hammer union seals?
A: The minimum order quantity for the hammer union seals is 100PCS.
Q: What is the price range for the hammer union seals?
A: The price range for the hammer union seals is from EXW$0.2/PC to $3/PC.
Q: What are the payment terms for ordering the hammer union seals?
A: The payment terms for ordering the hammer union seals are T/T and Paypal.
Q: What is the delivery time for the hammer union seals?
A: The delivery time for the hammer union seals is 7-15 days.
