Product Description:

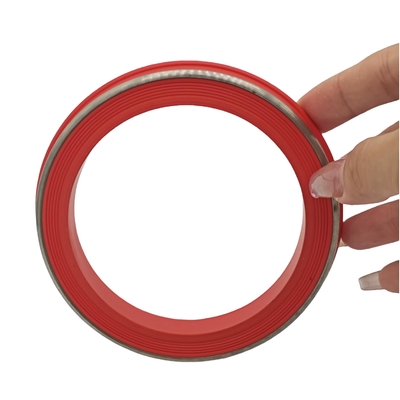

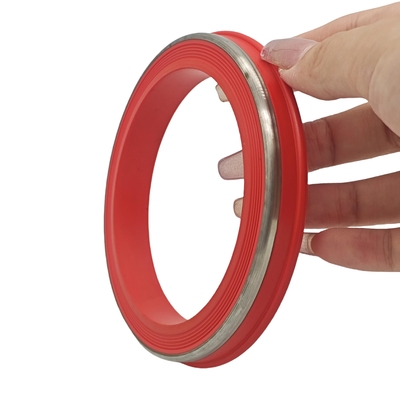

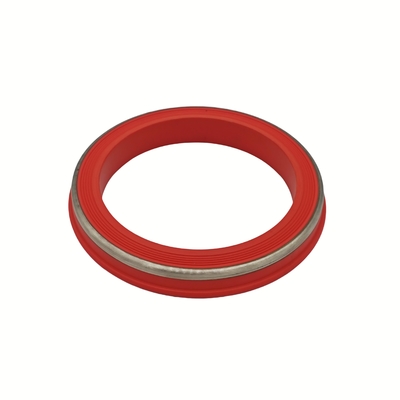

Hammer union seals for Figure 1502 or Figure 602 connections must match the exact union size, sealing profile and assembly drawing. Specify the required elastomer and backup construction before ordering. Pressure capability is established for the complete union assembly under the intended service conditions.
The Hammer Union Seal comes in a plastic bag and carton box, ensuring that it is protected during shipping and storage. This ensures that the product arrives at the customer's location in excellent condition, ready for use.

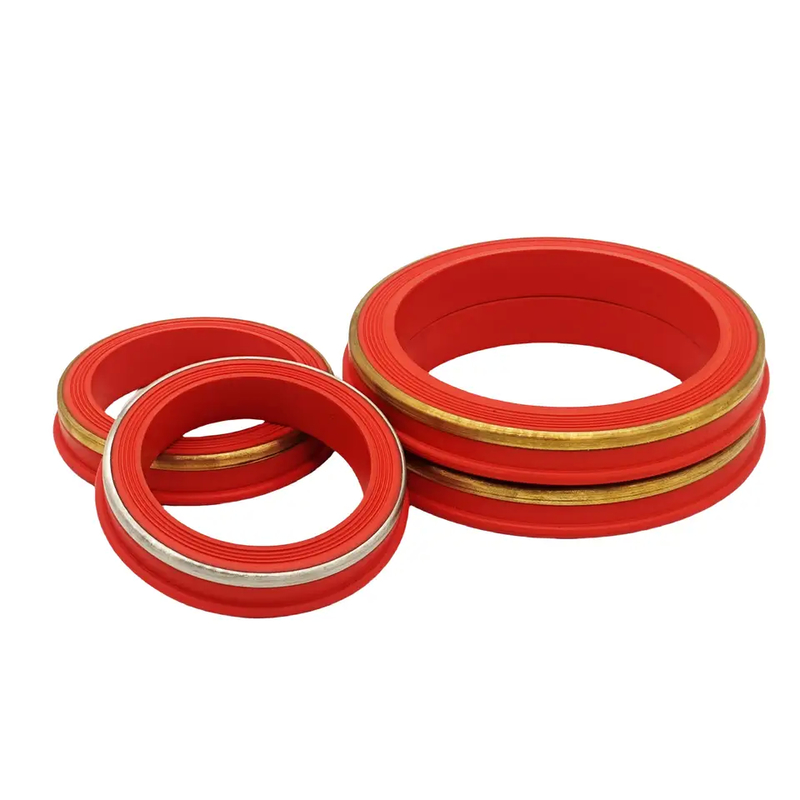

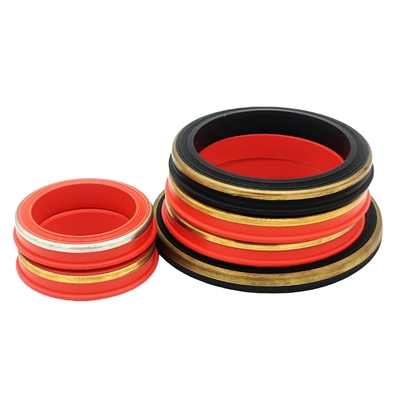

For a brass-backed design, confirm backup alloy, dimensions and its interface with the rubber seal. Figure 1502 and Figure 602 references do not by themselves prove seal interchangeability; check the finished dimensions and part revision.
Review fluid composition, operating temperature, exposure time and pressure requirements with the selected compound and union hardware. Agree dimensional inspection and any required assembly tests with the order.
Features:
- Product Name: Hammer Union Seal
- Features: Complete-assembly pressure qualification
- Fluid compatibility by selected compound
- Temperature limits by selected compound
- Chemical exposure review required
- Package: Plastic Bag+Carton Box
- Color: Black Or Custom Color
- Material: NBR HNBR FKM PTFE
- Size: 1 Inch-7 Inch
Weco-pattern replacement seals require the exact union figure and approved seal geometry. Select NBR, FKM or HNBR for actual service conditions; PTFE options require a separate design review. Specify nominal connection size separately from finished seal dimensions.
Technical Parameters:
| Product Name |
Hammer Union Seal/Rubber Seal |
| Application |
Oil & Gas Industry |
| Temperature Range |
Compound-specific limits; qualify for actual service |
| Color |
Black Or Custom Color |
| Pressure |
Requested 6,000–15,000 psi; rating by specified complete union assembly |
| Usage |
Fluid Tight Connection |
| Size |
1 Inch-7 Inch |
| Material |
NBR HNBR FKM PTFE |
| Features |
Service suitability by compound and complete-assembly qualification |
| Package |
Plastic Bag+Carton Box |
Specify rubber compound, union figure and brass backup construction by approved drawing
Applications:
For Figure 1502 or Figure 602 replacement orders, provide the union figure, nominal size, part number and revision. Confirm the mounting and sealing interface dimensions against the mating hardware before fit is approved.
At Royal Way, we are committed to providing our customers with the highest quality products at the best possible prices. Our Hammer Union Seals are priced at just EXW$0.2/PC-$3/PC, making them an affordable choice for businesses of all sizes. We also offer custom packing or standard packing options, depending on your needs.
Royal Way uses an ISO 9001 quality management system. Specify the material documentation, inspection records and product or complete-assembly test acceptance requirements with the order.
Before installing a replacement, inspect the seal lip and backup interface and check mating hardware for damage. Use the seal specified for the assembly and follow the tool instructions.
So why wait? Contact us today to learn more about our Hammer Union Seals and place your order!
Customization:
Hammer Union Seal/Rubber Seal
Brand Name: Royal Way
Model Number: Hammer union seals
Place of Origin: Shanghai, China
Certification: ISO9001
Minimum Order Quantity: 100PCS
Price: EXW$0.2/PC-$3/PC
Packaging Details: Custom packing or standard packing
Delivery Time: 7-15days
Payment Terms: T/T, Paypal
Supply Ability: 100000pcs per month
Color: Black Or Custom Color
Material: NBR HNBR FKM PTFE
Product Attributes: Figure 1502 or Figure 602 replacement seal; dimensions and backup by specified assembly
Shape: Round
Surface Treatment: Rubber surface and metal backup finish by approved drawing
Support and Services:
Technical review can cover the replacement drawing, compound selection and inspection requirements. Send the union reference, drawing or sample, operating conditions and observed seal condition for assessment. Replace damaged seals to the approved specification.
Packing and Shipping:
Product Packaging:
- The Hammer Union Seal product will be packed securely in a cardboard box to prevent any damage during transportation.
- The box will be labeled with the product name, quantity, and any other important information for identification.
Shipping:
- Shipping will be handled by a trusted courier service.
- Confirm destination-specific transit time and shipment method with the quotation.
- International shipping is also available and may take longer depending on the destination country.
- A tracking number will be provided so that you can easily track your package.
FAQ:
Q: What is the brand name of the hammer union seals?
A: The brand name is Royal Way.
Q: What is the model number of the hammer union seals?
A: The model number is Hammer union seals.
Q: Where are the hammer union seals manufactured?
A: The hammer union seals are manufactured in Shanghai, China.
Q: What certifications do the hammer union seals have?
A: ISO 9001 relates to our quality management system. Agree the material and assembly-test requirements for the specified seal separately.
Q: What is the minimum order quantity for the hammer union seals?
A: The minimum order quantity is 100PCS.
Q: What is the price range for the hammer union seals?
A: The price range is EXW$0.2/PC-$3/PC.
Q: What are the packaging details for the hammer union seals?
A: The packaging details can be customized or they can be standard packing.
Q: What is the delivery time for the hammer union seals?
A: The delivery time is 7-15 days.
Q: What payment terms are accepted for the hammer union seals?
A: The accepted payment terms are T/T and Paypal.
Q: What is the supply ability for the hammer union seals?
A: The supply ability is 100000pcs per month.
