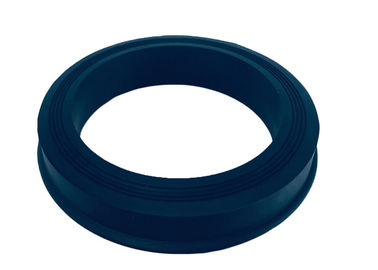

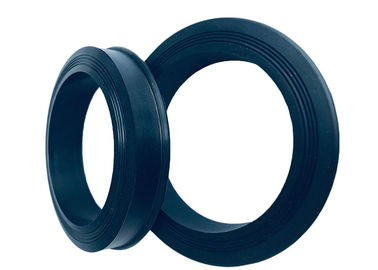

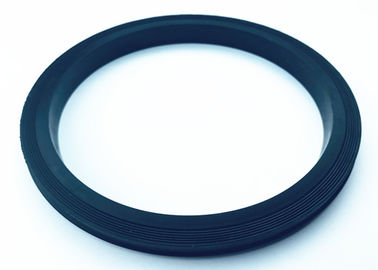

Product Description:
Royal Way hammer union seals are supplied for the specified union figure and nominal connection size. Confirm the sealing lip, mounting profile and finished dimensions against the mating hardware before approving a replacement.
Temperature suitability depends on the selected elastomer compound, actual fluid composition and exposure duration. Define these conditions with the order and qualify the complete union assembly for the intended service.
The requested 6,000–15,000 psi range must be assessed for the exact complete union assembly. A rubber seal or backup ring alone does not establish a pressure rating.
For brass-backed construction, specify the backup alloy, dimensions and interface with the rubber seal on the approved drawing. Inspect both rubber and metal components for damage and confirm the support geometry before installation.
For Figure 1502 or Figure 602 replacement orders, send the exact figure, nominal size, part reference and drawing revision. Include compound, backup construction, operating conditions and required inspection or assembly tests.
Features:
- Product Name: Hammer Union Seal/Rubber Seal
- Color: Black Or Custom Color
- Temperature Range: Compound-specific limits; qualify actual service
- Surface Treatment: Rubber surface and backup finish by drawing
- Usage: Fluid Tight Connection
- Figure 1502 or Figure 602 replacement fit by specified assembly
- Brass backup construction where specified on approved drawing
- Also known as Weco Seal Rings
Technical Parameters:
| Product Name |
Hammer Union Seal/Rubber Seal |
| Size |
1 Inch-7 Inch |
| Temperature Range |
Compound-specific limits; qualify actual service |
| Usage |
Fluid Tight Connection |
| Shape |
Round |
| Pressure |
Requested 6,000–15,000 psi; rating by specified complete union assembly |
| Package |
Plastic Bag+Carton Box |
| Application |
Oil & Gas Industry |
| Surface Treatment |
Rubber surface and metal backup finish by approved drawing |
| Features |
Service suitability by compound and complete-assembly qualification |
Applications:
The Royal Way Hammer Union Seal is a high-quality rubber seal product designed for use in the oil and gas industry. These seals are specifically designed to create a fluid tight connection between pipes, making them an essential component in drilling and production operations.
Royal Way uses an ISO 9001 quality management system. Figure 1502 and Figure 602 seals must be checked separately against the relevant assembly drawing. Agree material documentation, inspection and complete-assembly test requirements with the order.
All-rubber, brass-backed and other supported seal constructions require the specified geometry. Confirm the backup-to-rubber interface, finished profile and tolerances for the selected union.
For drilling, completion or production connections, identify the exact union assembly and fluid exposure. Review temperature, differential pressure and service duration with the selected compound.
We have a minimum order quantity of 100PCS and offer a competitive price range of EXW$0.2/PC-$3/PC. We can provide custom packaging or standard packing based on your requirements. Our delivery time is 7-15 days, and we accept payment methods such as T/T and Paypal. We have a monthly supply capacity of up to 100,000pcs.
Choose Royal Way Hammer Union Seal for a reliable and high-quality sealing solution that meets your oil and gas industry needs.
Customization:
Specify black or custom color separately from compound selection. Confirm the required union figure, seal dimensions and backup construction, and agree packing and delivery arrangements with the quotation.
NBR, HNBR and FKM options are reviewed for the actual service. PTFE requires a separate design review. Include nominal hardness, tolerances and sample approval requirements where applicable.
Support and Services:
For replacement support, provide the union reference, approved drawing or sample and the observed seal condition. Review the sealing surfaces and mating hardware before installing a new seal to the specified assembly instructions.
Packing and Shipping:
Product Packaging:
- Each Hammer Union Seal is individually packed in a plastic bag.
- The plastic bag is then placed in a cardboard box.
- The cardboard box is labeled with the product name, size, and quantity.
Shipping:
- Confirm express, air or sea shipment according to the destination and final packing.
- Shipping charges are based on the weight and destination of the order.
- Confirm processing and dispatch timing with the approved order.
- A tracking number will be provided once the order has shipped.
FAQ:
Q: What is the brand name of the hammer union seals?
A: The brand name of the hammer union seals is Royal Way.
Q: Where is the place of origin of the hammer union seals?
A: The hammer union seals are made in Shanghai, China.
Q: What is the certification of the hammer union seals?
A: ISO 9001 relates to our quality management system. Material and assembly-test requirements are agreed separately for the specified seal.
Q: What is the minimum order quantity for the hammer union seals?
A: The minimum order quantity for the hammer union seals is 100PCS.
Q: What is the price range of the hammer union seals?
A: The price range of the hammer union seals is EXW$0.2/PC-$3/PC.
Q: What are the packaging details for the hammer union seals?
A: The hammer union seals can be packed in custom packing or standard packing.
Q: What is the delivery time for the hammer union seals?
A: The delivery time for the hammer union seals is 7-15 days.
Q: What are the payment terms for the hammer union seals?
A: The payment terms for the hammer union seals are T/T and Paypal.
Q: What is the supply ability of the hammer union seals?
A: The hammer union seals have a supply ability of 100000pcs per month.
