Product Introduce

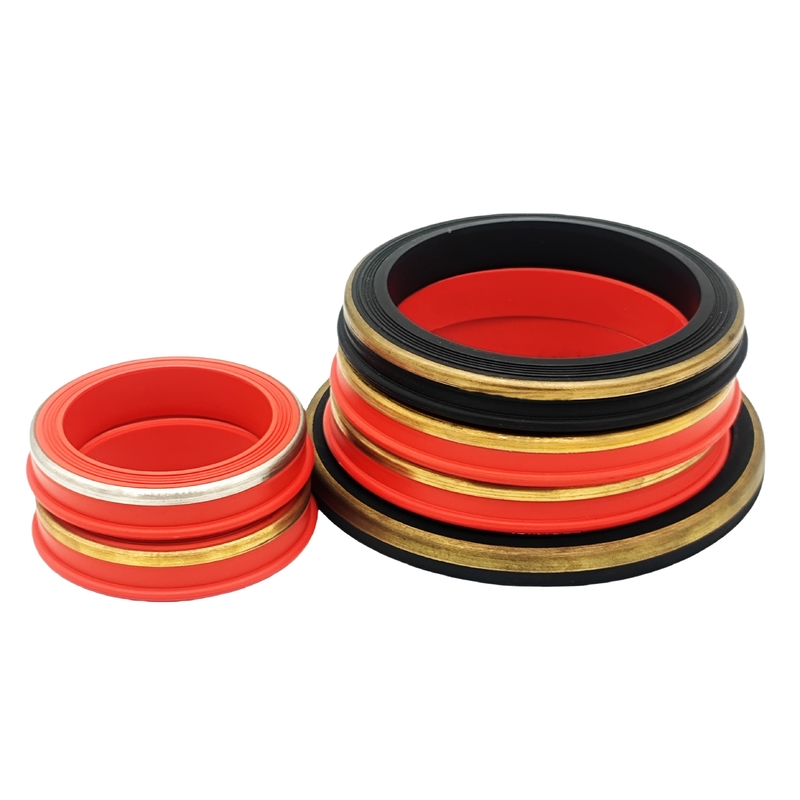

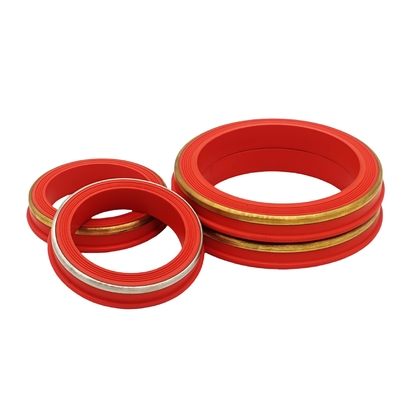

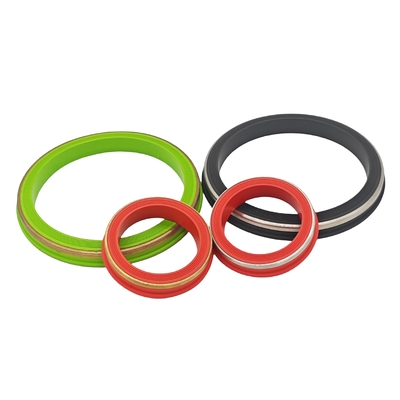

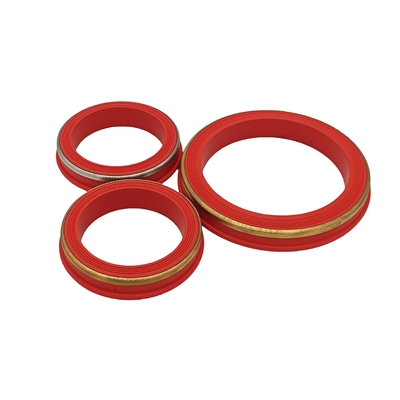

Hammer Union Seal are used in the connections between flexible hoses or pipes used in the oil drilling industry. The seal provides a critical fluid tight connection within the union hardware.
Hammer Union consists of a thread end, a nut end, and a hammer nut that when tightened seal the assembly with the assistance of an elastomeric seal. The seal is lipped to prevent it from falling out when inverted.

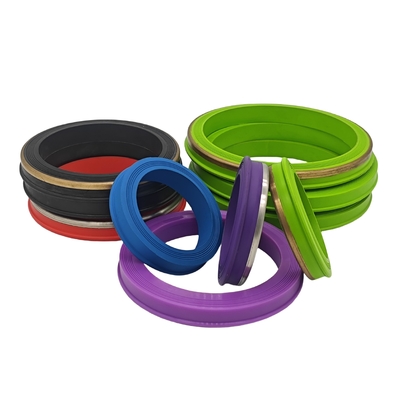

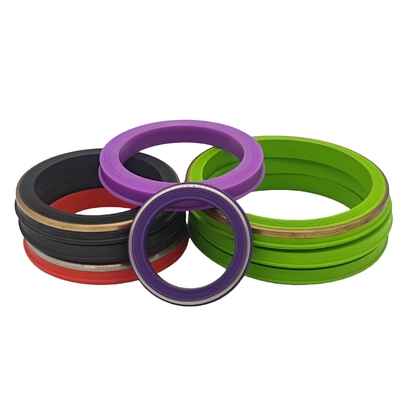

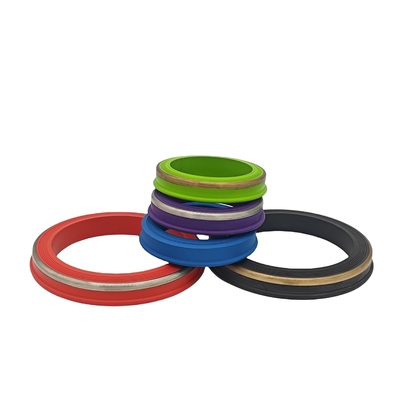

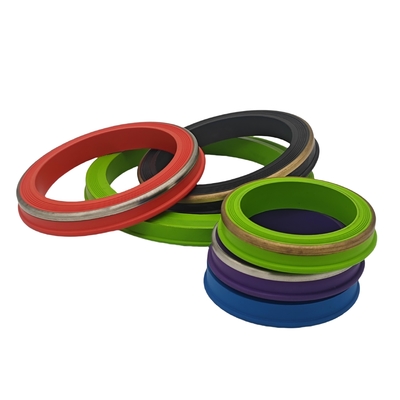

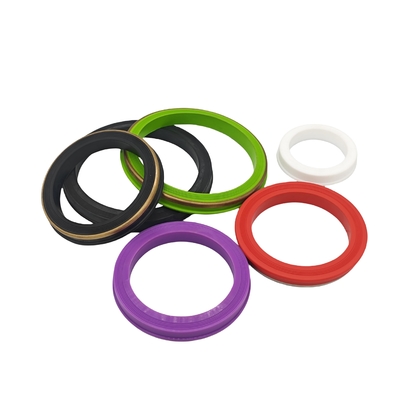

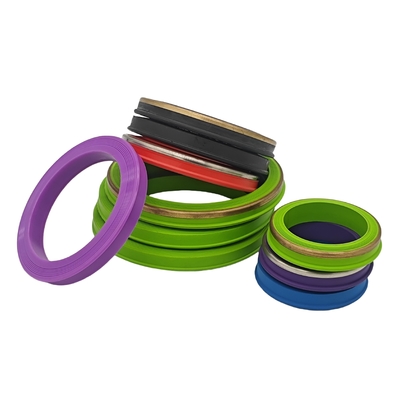

Shanghai Qinuo have our own Factory and Brand-Royal Way, so we accept Custom Hammer Union Seal, such as custom material, custom color, custom size, custom hardness, etc.
Product Feature
1. Pressure Resistance: Pressure suitability depends on the documented mating union rating, approved seal design and actual operating conditions.
2. Corrosion Resistance: Fluid compatibility and service life depend on the selected compound, any support-ring material and exposure conditions.
3. Ease of Installation: They typically have a simple design, making them easy to install and disassemble, facilitating on-site maintenance and replacement.
4. Variety of Sizes and Materials: Hammer union seals can be customized according to different pipe sizes and requirements, and there are also various materials available to suit different working environments and fluid media.
5. Safety: Correct seal selection, installation and connection inspection support reliable sealing; follow the equipment operating and maintenance requirements.
Product Application
1.Oil and Gas: Used extensively in drilling, fracturing, and production operations. They connect flow lines, choke and kill lines, and other high-pressure lines.
2.Industrial: Also found in industries where high-pressure fluid transfer is necessary, such as chemical plants and mining operations.
Material Introduce
Custom hammer union seal enquiries can specify NBR, HNBR or FKM compounds to the fluid duty. PTFE is a thermoplastic requiring separate profile and support review.
| Material Name |
Temperature Range |
Advantage
|
Deficiency |
| NBR(Nitrile, Buna-N) |
NBR temperature by selected compound
Confirm continuous and peak exposure |
1.Presently the most widely used rubber in the seal industry
2.Exceptional balance of good mechanical properties, wear properties, and chemical resistance
3.Resistance to most mineral oils and greases
|
don't used with gly-based brake fluids and strong acids |
| HNBR(Hydrogenated Nitrile) |
HNBR temperature by selected compound
Confirm fluid and equipment requirements |
1.Chemical resistance
2.Wider temperature range than standard nitrile
3.High strength material that resists extrusion, abrasion, and wear
4.Water and steam suitability by compound and exposure
5.Sour-service suitability requires compound-specific qualification
6.Commonly used with petroleum oils and co2
|
don't use with chlorinated hydrocarbons, polar solvents, or strong acids |
| FKM(Fluorocarbon) |
FKM temperature by selected compound
Confirm fluid and equipment requirements |
1.Excellent resistance to higher temperature, petroleum, and gasoline
2.Good chemical resistance, including to refrigerants(R12)
3.Great mechanical properties are retained over a wide temperature range
4.Ammonia exposure requires review of the exact FKM grade
|
Review aromatic hydrocarbons, polar solvents and the specified solvent against the exact FKM compound |
|
PTFE(Plyetrafuoroethylene)
|
PTFE temperature by grade and sealing design
Separate thermoplastic construction review |
Chemical compatibility by PTFE grade, fluid formulation and temperature |
|
Available Type
1" 1502, Buna / FKM/ HSN
1-1/2" 1502, Buna / FKM/ HSN
1-1/2" 1502, Buna / FKM/ HSN
3" 602/1502, Buna / FKM/ HSN(Brass/Stainless Anti-Ext)
4" 602/1002/1502, Buna / FKM/ HSN(Brass/Stainless Anti-Ext)
2" FIG 206, Buna / FKM/ HSN(AS568-228)
3" FIG 206, Buna / FKM/ HSN(AS568-236)
4" FIG 206, Buna / FKM/ HSN(AS568-346)
Packing&Shipping
Company Profile
Shangahi Qinuo Industry Co., Ltd was established in the year of 2013 at Shanghai Free Trade Zone, we are a new and high-tech enterprise integrating R&D, production and sales. Since its inception, we adhering to the "Quality for Survival, Innovation Competes For Development " concept, continuous development and innovation, we won a good reputation at home and abroad, Qinuo has a brand name "SHQN® ".
Qinuo provides professional rubber parts, plastic parts and maching parts design and production services, products mainly used in oil & gas industry, automobiles, household appliances, machinery equipment etc. We have a professional production and sales team, "High-Quality, High Professionalism, High Efficiency" are the principles of doing things.
Under the Shanghai Qinuo, we have two wholly-owned factories in Nantong City, only an hour's drive to Shanghai Pudong Airport or Shanghai Sea port to ensure the quick delivery, we have more than 30 rubber vulcanizing machines and relevanted equipments, so that Qinuo can produce more than 20 kinds of rubber rings or other rubber products together to meet our customer's demands, our monthly rubber processing capability can upto 20 tons (about 40, 000 lbs) or more. And Qinuo is still in rapid growthing.
We adopt comprehensive quality management system based on the ISO9001, our products are mainly exported to the United States, Canada, Britain, Germany, Finland, Australia more than 100 countries extend all over the globe. Qinuo is sincerely wishing to cooperate with you.
Related Hot-selling products
FAQ
Q1. Are you a factory or trading company?
We have two wholly-owned factories in Nantong City, only an hour's drive to Shanghai Pudong Airport or Shanghai Sea port to ensure the quick delivery.
Q2. What's your sample policy ?
We can supply the sample if we have ready parts in stock, but customized parts have to pay the mold fee.
Q3. Can you produce according to the samples or drawings?
Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q4. What's your Delivery time ?
If the good are in stock generally it is 5-7 working days after receiving your payment. About 7-15 working days if we have mold or 21-30 working days without mold. The specific delivery time depends on the items and quantity of your order quantity.
Q5.What's your payment terms?
For sample and small order, 100% T/T or Paypal. For bulk order, T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q6. Why choose to cooperate with you? What's your advantage?
1). Strong point:We have our own factory,so we can quarantee high quality with a reasonable and favorable price 2). We can offer you a good after-sell service, prompt deliver. 3). We can provide various size and colors according to customers' requirements. 4). By long time testing, quality proved to be excellent. 5). Updated product design. 6). Advanced manufacturing process, composite global standards. 7). We win by the high quality and then have a long-term business relationship.
Q7. How do you make our business long-term and good relationship?
1). We keep good quality and competitive price to ensure our customers benefit; 2). We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from. Our oil and gas parts are diverse and extensive, so if there is no item what you need, we encourage you to send the drawing or samples to us.
So if you have any questions for plastic&rubber parts, please contcat us! Looking forward to cooperate with you!
Figure 602, 1002 and 1502 Hammer Union Seals: Match the Profile Before Selecting Material
For replacement hammer union gaskets, identify the union manufacturer, Figure number, nominal line size and seal recess drawing. The Figure 602, 1002 and 1502 designations describe different union configurations; the listing of several figures does not establish that one seal fits every assembly. Weco references identify the requested mating equipment and do not imply original-brand manufacture or authorization.
Specify NBR, HNBR or FKM with the fluid formulation, operating temperature and pressure cycles. Review the brass or stainless support ring against the required extrusion clearance and approved seal profile. PTFE needs a separate thermoplastic design review; its hardness scale and temperature limits cannot be transferred to the rubber alternatives.
For a quotation, send the Figure and size together with seal dimensions, support-ring requirements and quantity. Pressure suitability follows the documented complete union rating and operating conditions. ISO 9001 describes the quality management system; any requested API conformity needs the applicable standard, scope and supporting product documentation.
