2-Inch Figure 602/1002/1502 Seals: Verify the Figure Before Pressure-Service Selection
Specify the original union maker, figure and nominal 2-inch size with the seal part number. Similar nominal sizes do not establish interchangeability between Figure 602, 1002 and 1502.
Provide seal section, lip geometry, diameters, axial height and brass or stainless backup details. Confirm compound, fluid formulation, temperature and pressure cycles. Pressure capability follows the complete identified connection; 15,000 psi is not a universal seal rating.
Product Introduce

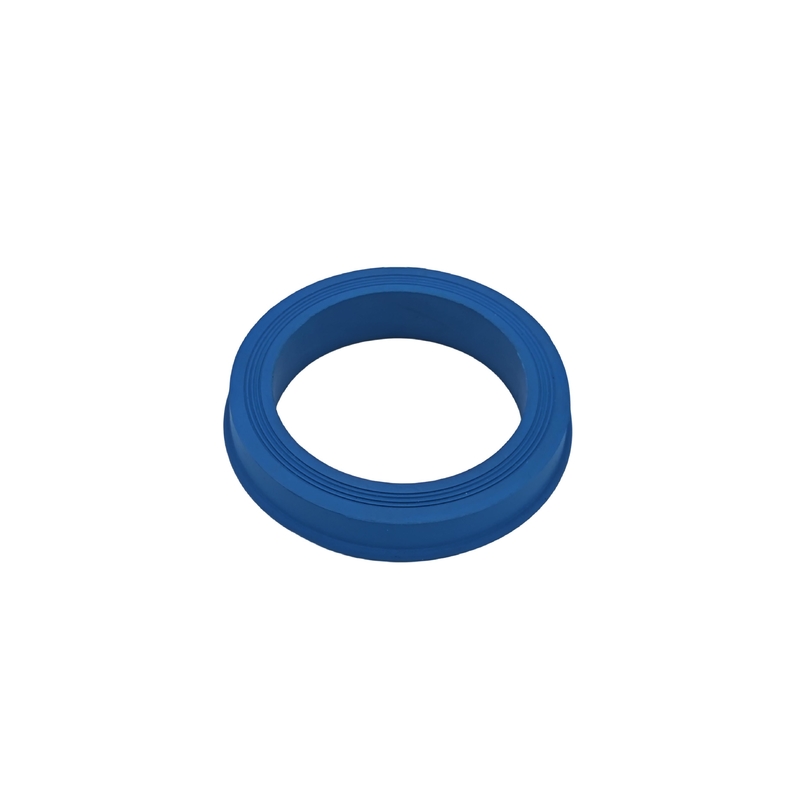

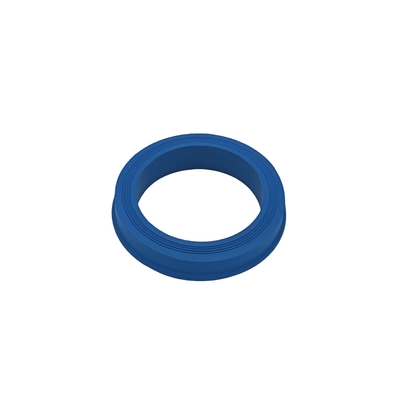

Hammer Union Seal are used in the connections between flexible hoses or pipes used in the oil drilling industry. The seal provides a critical fluid tight connection within the union hardware.
Hammer Union consists of a thread end, a nut end, and a hammer nut that when tightened seal the assembly with the assistance of an elastomeric seal. The seal is lipped to prevent it from falling out when inverted.
Shanghai Qinuo have our own Factory and Brand-Royal Way, so we accept Custom Hammer Union Seal, such as custom material, custom color, custom size, custom hardness, etc.
Material Introduce
This enquiry concerns nominal 2-inch replacements for specified Figure 602, 1002 or 1502 unions. Approve each profile and support ring against the exact maker drawing. Select NBR, HNBR or FKM by grade; PTFE requires a separate thermoplastic construction review.
| Material Name |
Temperature Range |
Advantage
|
Deficiency |
| NBR(Nitrile, Buna-N) |
NBR temperature by selected compound
Confirm continuous and peak exposure |
1.Presently the most widely used rubber in the seal industry
2.Exceptional balance of good mechanical properties, wear properties, and chemical resistance
3.Resistance to most mineral oils and greases
|
don't used with gly-based brake fluids and strong acids |
| HNBR(Hydrogenated Nitrile) |
HNBR temperature by selected compound
Confirm fluid and equipment requirements |
1.Chemical resistance
2.Wider temperature range than standard nitrile
3.High strength material that resists extrusion, abrasion, and wear
4.Water and steam suitability by compound and exposure
5.Sour-service suitability requires compound-specific qualification
6.Commonly used with petroleum oils and co2
|
don't use with chlorinated hydrocarbons, polar solvents, or strong acids |
| FKM(Fluorocarbon) |
FKM temperature by selected compound
Confirm fluid and equipment requirements |
1.Excellent resistance to higher temperature, petroleum, and gasoline
2.Good chemical resistance, including to refrigerants(R12)
3.Great mechanical properties are retained over a wide temperature range
4.Ammonia exposure requires review of the exact FKM grade
|
Review aromatic hydrocarbons, polar solvents and the specified solvent against the exact FKM compound |
|
PTFE(Plyetrafuoroethylene)
|
PTFE temperature by grade and sealing design
Separate thermoplastic construction review |
Chemical compatibility by PTFE grade, fluid formulation and temperature |
|
Available Type
All Available Type:
1'' 1502, Buna/FKM/HSN
1-1/2'' 1502, Buna/FKM/HSN
2'' 607, Guiberson style seal ring

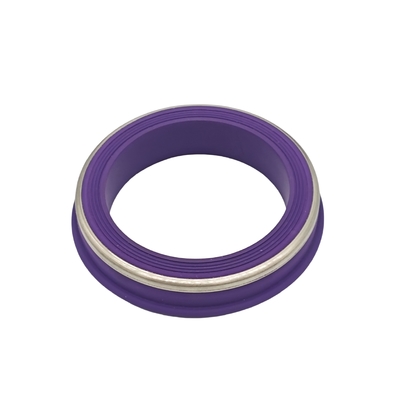

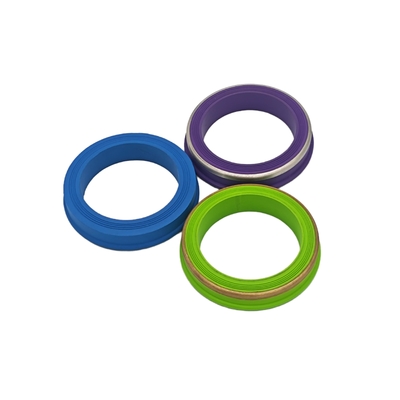

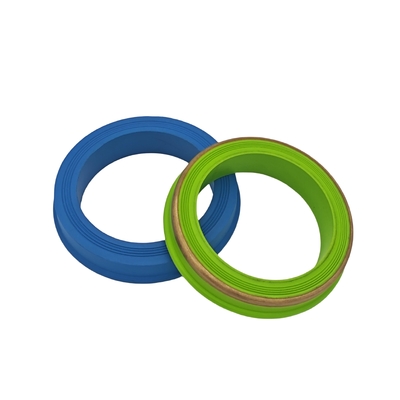

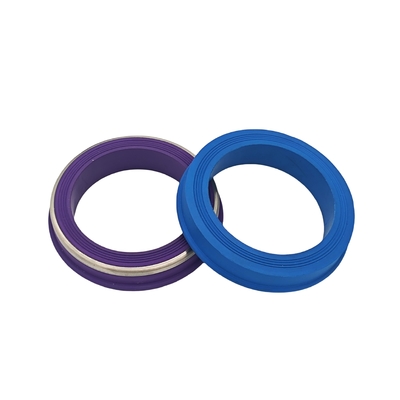

2'' 602/1002/1502, Buna/FKM/HSN(Brass/Stainless backup)
3'' 602/1002/1502, Buna/FKM/HSN(Brass/Stainless backup)
4'' 602/1002/1502, Buna/FKM/HSN(Brass/Stainless backup)
2'' FIG 206, Buna/FKM/HSN(AS568-228)
3'' FIG 206, Buna/FKM/HSN(AS568-228)
4'' FIG 206, Buna/FKM/HSN(AS568-228)
