Product Introduce

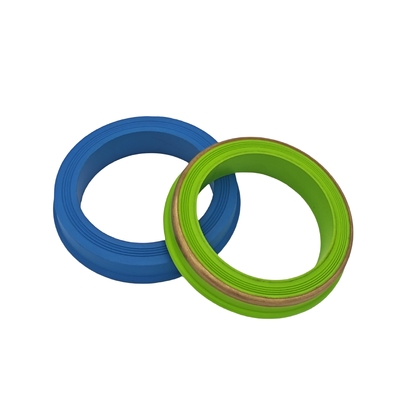

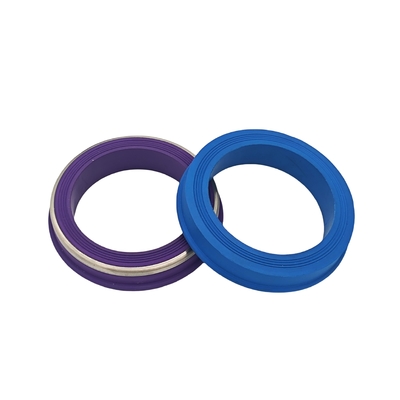

Hammer Union Seal are used in the connections between flexible hoses or pipes used in the oil drilling industry. The seal provides a critical fluid tight connection within the union hardware.

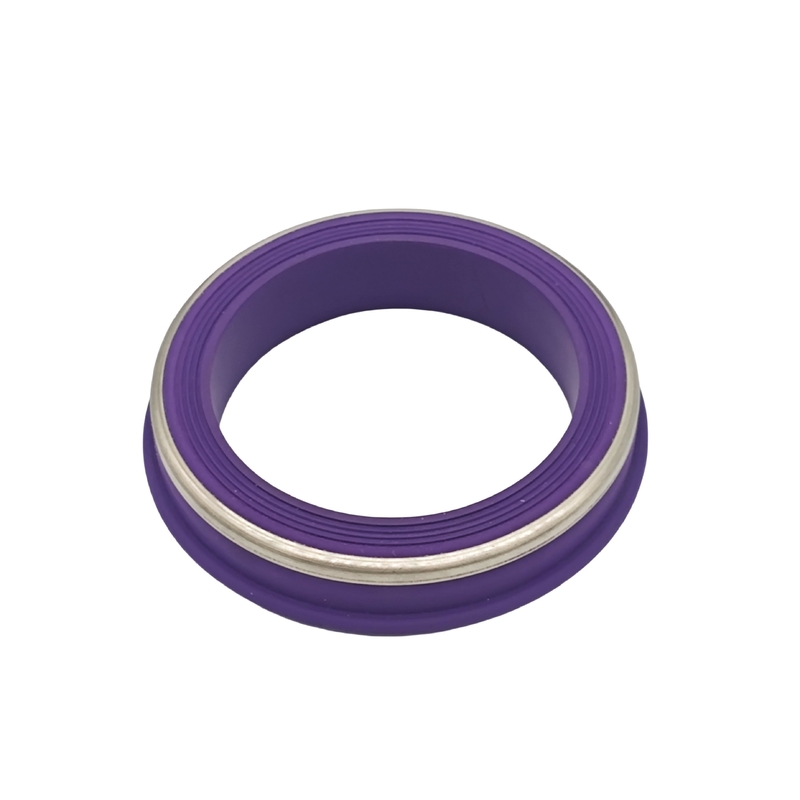

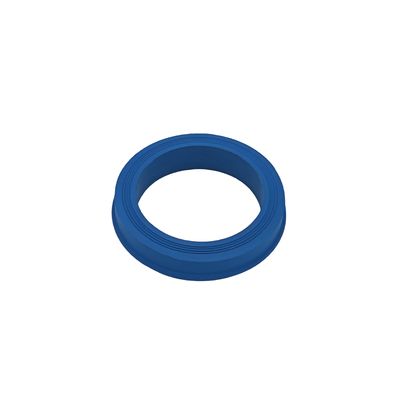

Hammer Union consists of a thread end, a nut end, and a hammer nut that when tightened seal the assembly with the assistance of an elastomeric seal. The seal is lipped to prevent it from falling out when inverted.
Shanghai Qinuo have our own Factory and Brand-Royal Way, so we accept Custom Hammer Union Seal, such as custom material, custom color, custom size, custom hardness, etc. If you need, welcome to contact us at any time!
Material Introduce
Custom hammer union seal enquiries can specify NBR, HNBR or FKM compounds to the fluid duty. PTFE is a thermoplastic requiring separate profile and support review.
| Material Name |
Temperature Range |
Advantage
|
Deficiency |
| NBR(Nitrile, Buna-N) |
NBR temperature by selected compound
Confirm continuous and peak exposure |
1.Presently the most widely used rubber in the seal industry
2.Exceptional balance of good mechanical properties, wear properties, and chemical resistance
3.Resistance to most mineral oils and greases
|
don't used with gly-based brake fluids and strong acids |
| HNBR(Hydrogenated Nitrile) |
HNBR temperature by selected compound
Confirm fluid and equipment requirements |
1.Chemical resistance
2.Wider temperature range than standard nitrile
3.High strength material that resists extrusion, abrasion, and wear
4.Water and steam suitability by compound and exposure
5.Sour-service suitability requires compound-specific qualification
6.Commonly used with petroleum oils and co2
|
don't use with chlorinated hydrocarbons, polar solvents, or strong acids |
| FKM(Fluorocarbon) |
FKM temperature by selected compound
Confirm fluid and equipment requirements |
1.Excellent resistance to higher temperature, petroleum, and gasoline
2.Good chemical resistance, including to refrigerants(R12)
3.Great mechanical properties are retained over a wide temperature range
4.Ammonia exposure requires review of the exact FKM grade
|
Review aromatic hydrocarbons, polar solvents and the specified solvent against the exact FKM compound |
|
PTFE(Plyetrafuoroethylene)
|
PTFE temperature by grade and sealing design
Separate thermoplastic construction review |
Chemical compatibility by PTFE grade, fluid formulation and temperature |
|
Available Type
All Available Type:
1'' 1502, Buna/FKM/HSN
1-1/2'' 1502, Buna/FKM/HSN
2'' 607, Guiberson style seal ring
2'' 602/1002/1502, Buna/FKM/HSN(Brass/Stainless backup)
3'' 602/1002/1502, Buna/FKM/HSN(Brass/Stainless backup)
4'' 602/1002/1502, Buna/FKM/HSN(Brass/Stainless backup)
2'' FIG 206, Buna/FKM/HSN(AS568-228)
3-inch Figure 206 seal; size reference by approved union drawing
4-inch Figure 206 seal; size reference by approved union drawing
Packing&Shipping
Company Profile
Shangahi Qinuo Industry Co., Ltd was established in the year of 2013 at Shanghai Free Trade Zone, we are a new and high-tech enterprise integrating R&D, production and sales. Since its inception, we adhering to the "Quality for Survival, Innovation Competes For Development " concept, continuous development and innovation, we won a good reputation at home and abroad, Qinuo has a brand name "SHQN® ".
Qinuo provides professional rubber parts, plastic parts and maching parts design and production services, products mainly used in oil & gas industry, automobiles, household appliances, machinery equipment etc. We have a professional production and sales team, "High-Quality, High Professionalism, High Efficiency" are the principles of doing things.
Under the Shanghai Qinuo, we have two wholly-owned factories in Nantong City, only an hour's drive to Shanghai Pudong Airport or Shanghai Sea port to ensure the quick delivery, we have more than 30 rubber vulcanizing machines and relevanted equipments, so that Qinuo can produce more than 20 kinds of rubber rings or other rubber products together to meet our customer's demands, our monthly rubber processing capability can upto 20 tons (about 40, 000 lbs) or more. And Qinuo is still in rapid growthing.
We adopt comprehensive quality management system based on the ISO9001, our products are mainly exported to the United States, Canada, Britain, Germany, Finland, Australia more than 100 countries extend all over the globe. Qinuo is sincerely wishing to cooperate with you.
FAQ
Q1. Are you a factory or trading company?
We have two wholly-owned factories in Nantong City, only an hour's drive to Shanghai Pudong Airport or Shanghai Sea port to ensure the quick delivery
Q2. What's your sample policy ?
We can supply the sample if we have ready parts in stock, but customized parts have to pay the mold fee.
Q3. Can you produce according to the samples or drawings?
Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q4. What's your Delivery time ?
If the good are in stock generally it is 5-7 working days after receiving your payment. About 7-15 working days if we have mold or 21-30 working days without mold. The specific delivery time depends on the items and quantity of your order quantity.
Q5.What's your payment terms?
For sample and small order, 100% T/T or Paypal. For bulk order, T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q6. Why choose to cooperate with you? What's your advantage?
1). Strong point:We have our own factory,so we can quarantee high quality with a reasonable and favorable price 2). We can offer you a good after-sell service, prompt deliver. 3). We can provide various size and colors according to customers' requirements. 4). By long time testing, quality proved to be excellent. 5). Updated product design. 6). Advanced manufacturing process, composite global standards. 7). We win by the high quality and then have a long-term business relationship.
Q7. How do you make our business long-term and good relationship?
1). We keep good quality and competitive price to ensure our customers benefit; 2). We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from. Our oil and gas parts are diverse and extensive, so if there is no item what you need, we encourage you to send the drawing or samples to us.
So if you have any questions for plastic&rubber parts, please contcat us! Looking forward to cooperate with you!
2 Inch Union Seal Orders: Separate Figure 602, 1002 and 1502 References
For a 2 inch nominal connection, list the union figure and manufacturer seal reference on each order line. Figure 602, 1002 and 1502 enquiries require their own groove and section drawing; shared nominal size does not establish interchangeable seal fit.
Specify NBR, HNBR or FKM as one compound grade per drawing, including hardness and any brass or stainless support. PTFE is a separate thermoplastic option. Identify actual seal diameters and section height rather than using nominal pipe size as the seal dimension.
Provide fluid formulation, normal and peak temperature, pressure cycling and quantity. Confirm complete union ratings separately. Sour-gas and decompression requirements need compound-specific qualification. Agree sample fit, dimensional inspection and material identification before production.
