| Place of Origin: | Shanghai,China |
| Brand Name: | Royal Way |
| Certification: | ISO 9001 |
| Model Number: | FIG 602/1002/1502 |
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | USD$0.1-5/PC |
| Packaging Details: | Carton/pallet |
| Delivery Time: | 7-15days according to the quantity of order |
| Payment Terms: | L/C, T/T, Western Union, Paypal |
| Supply Ability: | 100000 per month |
| Product Name: | Hammer Union Seal/Rubber Seal | Material: | NBR HNBR FKM PTFE |
|---|---|---|---|
| Type: | Rubber/ Brass Backup/stainless Backup | Size: | 1 Inch-4 Inch |
| Color: | Black /Red/Purple/Green And Accept Custom | Feature: | Heat Resistance/Oil Resistance/Chemical Resistance |
| Application: | Oil Drilling Industry/Oil And Gas Industry | Usage: | Contain Pressure/sealing/fluid Tight Connection |
| Temperature: | -268℃-250℃(-450℉ To 482℉) | Hardness: | 85D |
| Delivery Time: | 7-21days | Service: | OEM ODM Customized |
| Logo: | Available/Customized Logo/Customized Serial Number | MOQ: | 500pcs |
| Pressure: | 10000-15000Psi | ||
| Highlight: | High Performance Hammer Union Seal,Royal Way Hammer Union Seal,Oil Drilling Hammer Union Seal |
||
Product Introduction

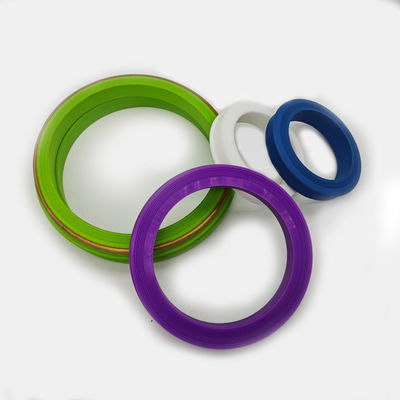

Hammer Union Seals are utilized in hammer union-style pipe connections to create flow lines and prevent leakage. The seal is lipped to prevent it from falling out when inverted.
Shanghai Qinuo Industry provide NBR HNBR FKM PTFE Rubber material, they have different feature. The form for your reference:
| Material | Temperature Range | Advantage | Deficiencies |
| NBR(Nitrile, Buna-N) |
-40℃ to 120℃ -40℉ to 248℉ |
1.Presently the most widely used rubber in the seal industry 2.Exceptional balance of good mechanical properties, wear properties, and chemical resistance 3.Resistance to most mineral oils and greases |
Don't used with glycol-based brack fluids and strong acids |
| HNBR |
-40℃ to 160℃ -40℉ to 320℉ |
1.Nitrile based compound with improved chemical resistance 2.Wide temperature range 3.High stength material that resists extrusion, abrasion, and wear 4.Water and stream resistance to +149℃(+300℉) 5.H2S resistance up to 10% 6.Commonly used with petroleum oils and co2 |
Don't use with chlorinated hydrocarbons, polar solvents, or strong acids |
| FKM(Fluorocarbon) |
-26℃ to 230℃ -15℉ to 446℉ |
1.Excellent resistance to higher temperature, petroleum oils, and gasonline 2.Wide range of chemical resistance 3.Great ozone, weather, and aging resistance |
1.Poor low temperature characteriistic 2.Poor compatibility with H2S over 2%, amines, hot water and steam |
| PTFE |
-268℃ to 250℃ -450℉ to 482℉ |
1.Chemical resistance, resistance to various organic solvents 2.High sealingperformance 3.anti-aging 4.Heat temperature resistance |
|
1'' 1502, Buna/FKM/HSN
1-1/2'' 1502, Buna/FKM/HSN
2'' 607 style seal ring
2'' 602/1002/1502, Buna/FKM/HSN(Brass/Stainless backup)
3'' 602/1002/1502, Buna/FKM/HSN(Brass/Stainless backup)
4'' 602/1002/1502, Buna/FKM/HSN(Brass/Stainless backup)
2'' FIG 206, Buna/FKM/HSN(AS568-228)
3'' FIG 206, Buna/FKM/HSN(AS568-228)
4'' FIG 206, Buna/FKM/HSN(AS568-228) |
Company Profile
Shanghai Qinuo Industry Co., Ltd was established in the year of 2013 at Shanghai Free Trade Zone, we are a new and high-tech enterpriseintegrating R&D, production and sales. Since its inception, we adhering to the "Quality for Survival, Innovation Competes For Development " concept, continuous development and innovation, we won a good reputation at home and abroad, Qinuo has a brand name "SHQN".
Qinuo provides professional rubber products design and production services, mainly used in oil & gas industry, automobiles, household appliances, machinery equipment etc. We have a professional production and sales team, "High-Quality, High Professionalism, High Efficiency" are the principles of doing things.
We adopt comprehensive quality management system based on the ISO9001, our products are
mainly exported to the United States, Canada, Britain, Germany, Australia more than 100 countries extend all over the globe. Qinuo is sincerely wishing to cooperate with you.
Packing&Delivery
Rubber o ring
Rubber seal kits- custom packing or lable is available
Related Rubber Parts
FAQ:
Q1: Are you manufacture or trading company?
We are manufacture. Our factory located in Haimen District, Nantong City, Jiangsu Province.
Q2: How can we guarantee quality?
Always a pre-production sample before mass production;Always final Inspection before shipment;
Q3: Can I get some samples?
Sure, samples are available,3-10 samples are for free. Please note that only needs to pay for shipping cost.
Q4: Can you produce OEM products?
Yes, we can produce by your samples or 3D drawings. We can build the molds and fixtures.
Q5: What's the term of payment ?
Amount < US$5000,100% paid in advance by paypal or T/T;
Amount >= US$5000, 30% paid in advance, 70% balance before shipment by T/T
Q6: Can you manage the shipment?
Sure, we can arrange different ship ways according to the goods final packing: by express, by air or by sea.
Q7: What is the lead time?
Stock goods: generally within 7days according to the quantity.
Produce Goods: 7-25days according to the packing and quantity.
