| Place of Origin: | Shanghai,China |
| Brand Name: | Royal Way |
| Certification: | ISO 9001 |
| Model Number: | FIG 602/1002/1502 |
| Minimum Order Quantity: | 200pcs |
|---|---|
| Price: | USD$0.1-5/PC |
| Packaging Details: | Carton/pallet |
| Delivery Time: | 7-15days according to the quantity of order |
| Payment Terms: | L/C, T/T, Western Union, Paypal |
| Supply Ability: | 100000 per month |
| Product Name: | Hammer Union Seal/Rubber Seal | Material: | NBR/HNBR/FKM Or PTFE Grade To Specific Union And Service Approval |
|---|---|---|---|
| Type: | Figure 602/1002/1502 Enquiries; Brass Or Stainless Support By Drawing | Size: | 1-4 Inch Nominal References; Seal Dimensions By Maker And Figure |
| Color: | Black | Feature: | Compatibility By Selected Seal Grade And Backup Construction |
| Application: | Oil Drilling Industry/Oil And Gas Industry | Usage: | Replacement Seal In Specified Hammer Union Assembly |
| Temperature: | By Selected Grade, Fluid And Complete Union Specification | Hardness: | Value And Test Scale By Selected Grade; Confirm Old 85D Reference |
| Delivery Time: | 7-15 Days | Service: | OEM/ ODM |
| Packing: | Plastic Bag+ Carton+pallet | Logo: | Available/Customized Logo/Customized Serial Number |
| MOQ: | 100pcs | Pressure: | By Complete Union Specification; Seal Alone Has No Universal Rating |
| Highlight: | Brass Hammer Union Seal,Stainless Ring Hammer Union Seal,PTFE Hammer Union Seal |
||
Figure 602, 1002 and 1502 Hammer Union Seals — Material and Backup-Ring Orders
Product Introduction
Hammer Union Seals are used in the connections between flexible hoses or pipes used in the oil drilling industry. The seal provides a critical fluid tight connection within the union hardware.
Hammer Unions consist of a thread end, a nut end, and a hammer nut that when tightened seal the assembly with the assistance of an elastomeric seal. The seal is lipped to prevent it from falling out when inverted.
Material Introduction

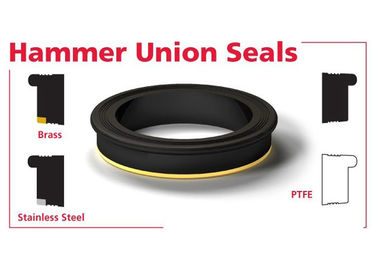

NBR, HNBR and FKM are elastomer alternatives selected by grade. PTFE is a thermoplastic requiring a separate seal-design review. For each Figure 602, 1002 or 1502 enquiry, approve the exact compound and brass or stainless support construction against the union drawing.
| Material | Temperature Range | Advantage | Deficiencies |
| NBR(Nitrile, Buna-N) |
NBR continuous and peak temperature by approved grade Confirm actual fluid and temperature exposure |
1.Presently the most widely used rubber in the seal industry 2.Exceptional balance of good mechanical properties, wear properties, and chemical resistance 3.Resistance to most mineral oils and greases |
Don't used with glycol-based brack fluids and strong acids |
| HNBR |
HNBR temperature by selected compound Requires fluid and equipment approval |
1.Nitrile based compound with improved chemical resistance 2.Wide temperature range 3.High stength material that resists extrusion, abrasion, and wear 4.Water and steam suitability requires compound and exposure review 5.Sour-service suitability requires compound-specific qualification 6.Commonly used with petroleum oils and co2 |
Don't use with chlorinated hydrocarbons, polar solvents, or strong acids |
| FKM(Fluorocarbon) |
FKM temperature by selected compound Requires fluid and equipment approval |
1.Excellent resistance to higher temperature, petroleum oils, and gasonline 2.Wide range of chemical resistance 3.Great ozone, weather, and aging resistance |
1.Poor low temperature characteriistic 2.Review H2S, amines, hot water and steam against the exact FKM compound |
| PTFE |
PTFE temperature by grade and sealing design Separate thermoplastic construction review |
1.Chemical resistance, resistance to various organic solvents 2.High sealingperformance 3.anti-aging 4.Heat temperature resistance |
All Available Hammer Union Seals list
1'' 1502, Buna/FKM/HSN
1-1/2'' 1502, Buna/FKM/HSN
2'' 607, Guiberson style seal ring

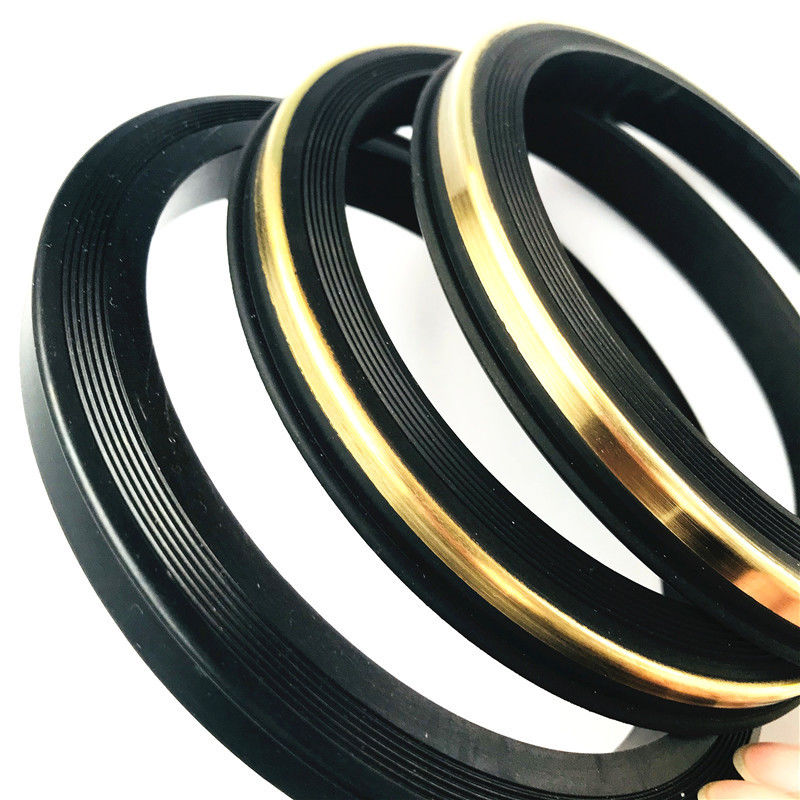

2'' 602/1002/1502, Buna/FKM/HSN(Brass/Stainless backup)
3'' 602/1002/1502, Buna/FKM/HSN(Brass/Stainless backup)
4'' 602/1002/1502, Buna/FKM/HSN(Brass/Stainless backup)
2'' FIG 206, Buna/FKM/HSN(AS568-228)
3-inch Figure 206 seal; size reference by approved union drawing
4-inch Figure 206 seal; size reference by approved union drawing
Product details
![]()
![]()
![]()
![]()
![]()
Company Profile
![]()
![]()
Shanghai Qinuo Industry guaratee update anytime from production to shipment, and we accept custom packing. If you have any quirements, please tell us when you are free.
Related Rubber Parts
![]()
Figure 602, 1002 and 1502 are separate connection references. Equal nominal size or similar appearance does not establish seal interchangeability. Confirm the maker and part drawing for each line item. Brass and stainless backup rings also require separate grade and geometry identification.
| Order item | Required detail |
|---|---|
| Connection line | Union maker, figure, nominal size, seal part number and quantity. |
| Seal construction | Rubber-only or supported profile; approved dimensions and tolerances. |
| Backup ring | Brass or stainless grade, ring drawing and bonded or separate construction. |
| Material | Selected NBR, HNBR, FKM or PTFE grade, actual fluid and temperature. |
| Acceptance and packing | Inspect by approved drawing and label each figure, size and grade separately; complete connection rating remains equipment-specific. |
