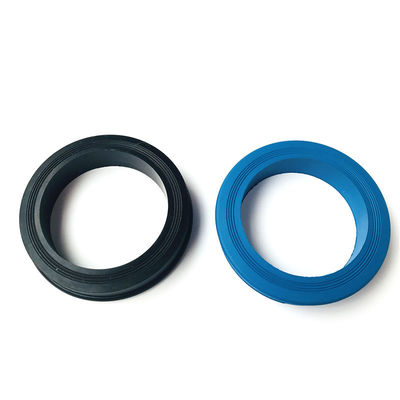

FIG 602/1002/1502 Colorful NBR HNBR FKM PTFE Hammer Union Seal Accept custom
Product Introduction
Hammer Union Seals are used in the connections between flexible hoses or pipes used in the oil drilling industry. The seal provides a critical fluid tight connection within the union hardware.
Hammer Unions consist of a thread end, a nut end, and a hammer nut that when tightened seal the assembly with the assistance of an elastomeric seal. The seal is lipped to prevent it from falling out when inverted.
Material Introduction
NBR, HNBR and FKM are rubber compound alternatives. PTFE is a thermoplastic needing separate profile and support review. Compare the selected grade with the specified fluid and operating exposure.
| Material |
Temperature Range |
Advantage |
Deficiencies |
| NBR(Nitrile, Buna-N) |
NBR temperature by selected compound
Confirm continuous and peak exposure
|
1.Presently the most widely used rubber in the seal industry
2.Exceptional balance of good mechanical properties, wear properties, and chemical resistance
3.Resistance to most mineral oils and greases
|
Don't used with glycol-based brack fluids and strong acids |
| HNBR |
HNBR temperature by selected compound
Confirm fluid and equipment requirements
|
1.Nitrile based compound with improved chemical resistance
2.Wide temperature range
3.High stength material that resists extrusion, abrasion, and wear
4.Water and steam suitability by selected compound and exposure
5.Sour-service suitability requires compound-specific qualification
6.Commonly used with petroleum oils and co2
|
Don't use with chlorinated hydrocarbons, polar solvents, or strong acids |
| FKM(Fluorocarbon) |
FKM temperature by selected compound
Confirm fluid and equipment requirements
|
1.Excellent resistance to higher temperature, petroleum oils, and gasonline
2.Wide range of chemical resistance
3.Great ozone, weather, and aging resistance
|
1.Poor low temperature characteriistic
2.Review sour gas, amines, hot water and steam against the exact FKM grade
|
| PTFE |
PTFE temperature by grade and sealing design
Separate thermoplastic construction review
|
1.Chemical resistance, resistance to various organic solvents
2.High sealingperformance
3.anti-aging
4.Heat temperature resistance
|
|
All Available Hammer Union Seals list
1'' 1502, Buna/FKM/HSN
1-1/2'' 1502, Buna/FKM/HSN
2'' 607, Guiberson style seal ring
2'' 602/1002/1502, Buna/FKM/HSN(Brass/Stainless backup)
3'' 602/1002/1502, Buna/FKM/HSN(Brass/Stainless backup)
4'' 602/1002/1502, Buna/FKM/HSN(Brass/Stainless backup)
2'' FIG 206, Buna/FKM/HSN(AS568-228)
3'' FIG 206, Buna/FKM/HSN; dash size by mating drawing
4'' FIG 206, Buna/FKM/HSN; dash size by mating drawing
Product details
Company Profile
Shanghai Qinuo Industry Co., Ltd was established in the year of 2013 at Shanghai Free Trade Zone, we are a new and high-tech enterpriseintegrating R&D, production and sales. Since its inception, we adhering to the "Quality for Survival, Innovation Competes For Development " concept, continuous development and innovation, we won a good reputation at home and abroad, Qinuo has a brand name "SHQN".
Qinuo provides professional rubber products design and production services, mainly used in oil & gas industry, automobiles, household appliances, machinery equipment etc. We have a professional production and sales team, "High-Quality, High Professionalism, High Efficiency" are the principles of doing things.
Under the Shanghai Qinuo, we have two wholly-owned factories in Nantong City, only an hour's drive to Shanghai Pudong Airport or Shanghai Sea port to ensure the quick delivery, we have more than 30 rubber vulcanizing machines and relevant equipments, so that Qinuo can produce more than 20 kinds of rubber rings or other rubber products together to meet our customer's demands, our monthly rubber processing capability can upto 40 tons (about 80, 000 lbs) or more. And Qinuo is still in rapid growthing.
We adopt comprehensive quality management system based on the ISO9001, our products are
mainly exported to the United States, Canada, Britain, Germany, Australia more than 100 countries extend all over the globe. Qinuo is sincerely wishing to cooperate with you.
Packing&Delivery
Shanghai Qinuo Industry guaratee update anytime from production to shipment, and we accept custom packing. If you have any quirements, please tell us when you are free.
Red and Black Figure 602, 1002 and 1502 Seals: Keep Colour and Part Identity Together
For red or black hammer union seal orders, identify each part by Figure number, nominal union size and approved seal drawing. Colour may help sorting, but it cannot establish compound identity or interchangeability. Figure 602, 1002 and 1502 enquiries require individual fit confirmation for the specified mating hardware.
Provide separate quantities and colour references for each 1 to 4 inch nominal connection size. Specify NBR, HNBR or FKM with the required fluid and temperature data, and identify any brass or stainless support ring. PTFE is a thermoplastic option requiring its own design and hardness-scale review; the rubber specifications cannot be applied to it automatically.
Agree any marking, serial identification and packing labels with the quotation so different figures and compounds remain identifiable. Include pressure cycles, temperature peaks and inspection requirements. Pressure suitability follows the complete documented union assembly; appearance and a broad material list do not establish a verified rating.
