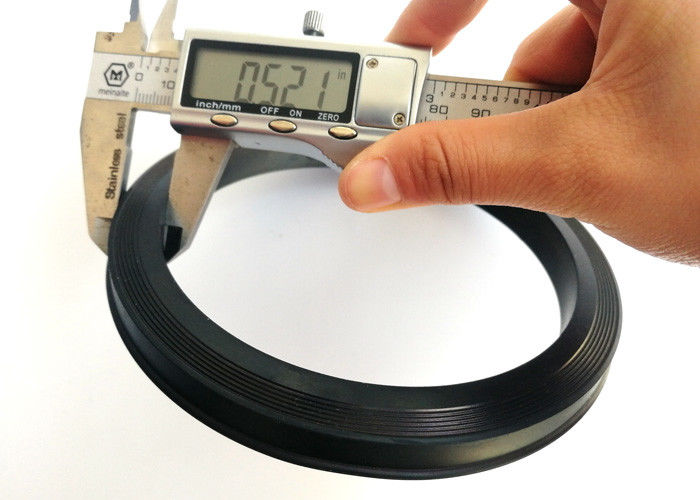

4-Inch Figure 1502 Black NBR Hammer Union Seal — Oil-Service Replacement Fit
Product Introduction
Hammer Union Seals are used in the connections between flexible hoses or pipes used in the oil drilling industry. The seal provides a critical fluid tight connection within the union hardware.
Hammer Unions consist of a thread end, a nut end, and a hammer nut that when tightened seal the assembly with the assistance of an elastomeric seal. The seal is lipped to prevent it from falling out when inverted.
Material Introduction
This enquiry concerns a 4-inch Figure 1502 black NBR replacement seal. Select the exact NBR grade and any support ring to the original union drawing and fluid duty. HNBR, FKM and PTFE below are separate alternatives; PTFE is a thermoplastic requiring its own design review.
| Material |
Temperature Range |
Advantage |
Deficiencies |
| NBR(Nitrile, Buna-N) |
NBR continuous and peak temperature by approved grade
Confirm actual fluid and temperature exposure
|
1.Presently the most widely used rubber in the seal industry
2.Exceptional balance of good mechanical properties, wear properties, and chemical resistance
3.Resistance to most mineral oils and greases
|
Don't used with glycol-based brack fluids and strong acids |
| HNBR |
HNBR temperature by selected compound
Requires fluid and equipment approval
|
1.Nitrile based compound with improved chemical resistance
2.Wide temperature range
3.High stength material that resists extrusion, abrasion, and wear
4.Water and steam suitability requires compound and exposure review
5.Sour-service suitability requires compound-specific qualification
6.Commonly used with petroleum oils and co2
|
Don't use with chlorinated hydrocarbons, polar solvents, or strong acids |
| FKM(Fluorocarbon) |
FKM temperature by selected compound
Requires fluid and equipment approval
|
1.Excellent resistance to higher temperature, petroleum oils, and gasonline
2.Wide range of chemical resistance
3.Great ozone, weather, and aging resistance
|
1.Poor low temperature characteriistic
2.Review H2S, amines, hot water and steam against the exact FKM compound
|
| PTFE |
PTFE temperature by grade and sealing design
Separate thermoplastic construction review
|
1.Chemical resistance, resistance to various organic solvents
2.High sealingperformance
3.anti-aging
4.Heat temperature resistance
|
|
All Available Hammer Union Seals list
1'' 1502, Buna/FKM/HSN
1-1/2'' 1502, Buna/FKM/HSN
2'' 607, Guiberson style seal ring
2'' 602/1002/1502, Buna/FKM/HSN(Brass/Stainless backup)
3'' 602/1002/1502, Buna/FKM/HSN(Brass/Stainless backup)
4'' 602/1002/1502, Buna/FKM/HSN(Brass/Stainless backup)
2'' FIG 206, Buna/FKM/HSN(AS568-228)
3-inch Figure 206 seal; size reference by approved union drawing
4-inch Figure 206 seal; size reference by approved union drawing

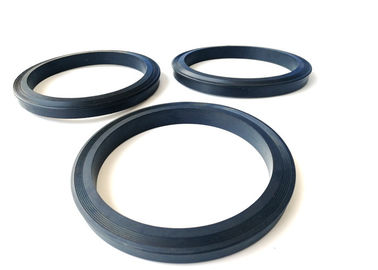

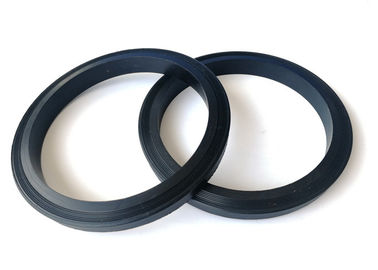

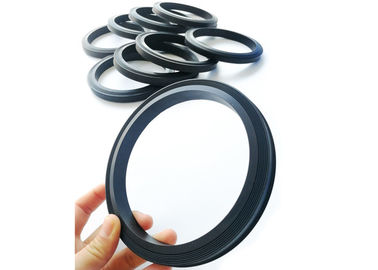

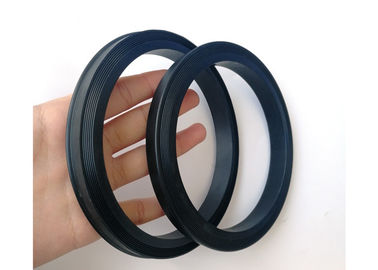

Product details
Company Profile
Shanghai Qinuo Industry Co., Ltd was established in the year of 2013 at Shanghai Free Trade Zone, we are a new and high-tech enterpriseintegrating R&D, production and sales. Since its inception, we adhering to the "Quality for Survival, Innovation Competes For Development " concept, continuous development and innovation, we won a good reputation at home and abroad, Qinuo has a brand name "SHQN".
Qinuo provides professional rubber products design and production services, mainly used in oil & gas industry, automobiles, household appliances, machinery equipment etc. We have a professional production and sales team, "High-Quality, High Professionalism, High Efficiency" are the principles of doing things.
Under the Shanghai Qinuo, we have two wholly-owned factories in Nantong City, only an hour's drive to Shanghai Pudong Airport or Shanghai Sea port to ensure the quick delivery, we have more than 30 rubber vulcanizing machines and relevant equipments, so that Qinuo can produce more than 20 kinds of rubber rings or other rubber products together to meet our customer's demands, our monthly rubber processing capability can upto 40 tons (about 80, 000 lbs) or more. And Qinuo is still in rapid growthing.
We adopt comprehensive quality management system based on the ISO9001, our products are
mainly exported to the United States, Canada, Britain, Germany, Australia more than 100 countries extend all over the globe. Qinuo is sincerely wishing to cooperate with you.
Packing&Delivery
Shanghai Qinuo Industry guaratee update anytime from production to shipment, and we accept custom packing. If you have any quirements, please tell us when you are free.
4-Inch Figure 1502 NBR Orders: Identify the Groove and Support Construction
| Fit specification |
Required detail |
| Union reference |
Confirm maker, Figure 1502 designation and nominal 4-inch size with original seal part number. |
| Seal geometry |
Provide lip dimensions, seal diameters, axial height and groove tolerances. Four inches is the nominal union reference rather than a verified seal diameter. |
| Support construction |
Identify rubber-only, brass-backed or stainless-backed construction from the approved drawing. |
| NBR compound |
Specify the oil formulation, additives, operating temperature and pressure-cycle duty. Black colour alone does not establish grade. |
| Hardness and rating |
Confirm the old 85D value and test scale before supply. Pressure capability is governed by the complete identified union and selected seal design. |
