| Place of Origin: | Shanghai,China |
| Brand Name: | Royal Way |
| Certification: | ISO 9001 |
| Model Number: | Fig 1502 1002 602 206 |
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | USD$0.1-3/PC |
| Packaging Details: | Carton/pallet |
| Delivery Time: | 7-15days according to the quantity of order |
| Payment Terms: | L/C, T/T, Western Union, Paypal |
| Supply Ability: | 100000 per month |
| Product Name: | NBR / Buna-N Nitrile Hammer Union Replacement Seals | Material: | NBR Featured; HNBR/FKM Alternatives And PTFE By Separate Design Review |
|---|---|---|---|
| Type: | Rubber-only Or Brass/stainless Support Configuration By Approved Drawing | Size: | Nominal Union Sizes 1 To 7 Inch By Enquiry; Profile By Mating Drawing |
| Color: | Black /Red/Purple/Green And Accept Custom | Shape: | Annular Union Seal; Cross-section By Approved Mating Drawing |
| Feature: | Fluid And Cleaning-chemical Suitability By Selected Compound And Exposure | Application: | Oil And Gas Industry |
| Usage: | Replacement Sealing Element For The Specified Mating Union | Temperature: | By Selected Compound Or PTFE Grade, Fluid And Exposure |
| Hardness: | Confirm Value And Shore Test Scale For The Ordered Material | Samples: | Availability And Sample Lead Time By Quotation |
| Delivery Time: | 7-15 Days | Service: | OEM/ ODM |
| Packing: | Plastic Bag+ Carton+pallet | ||
| Highlight: | Heat Resistance rubber union seal,Oil Resistance rubber union seal,Chemical Resistance rubber union seal |
||

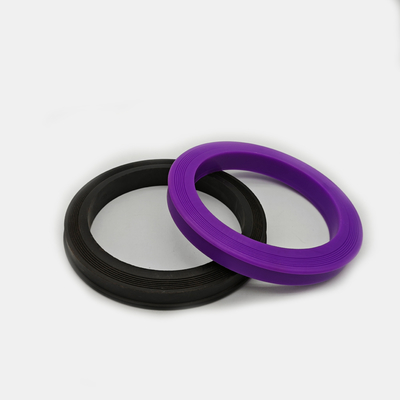

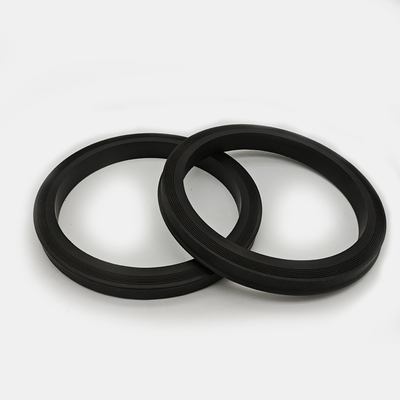

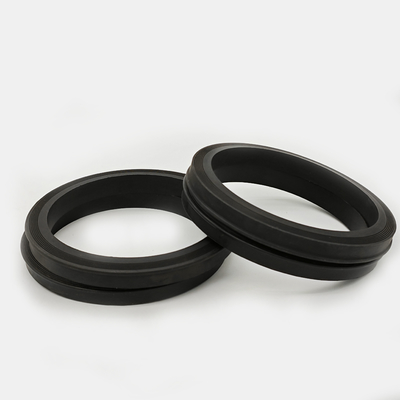

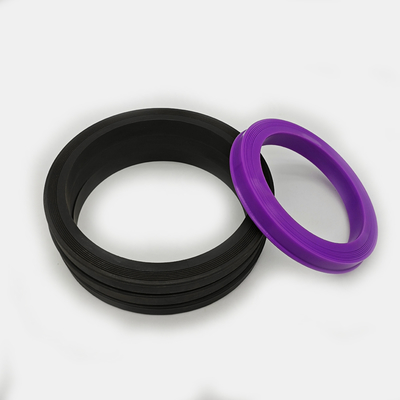

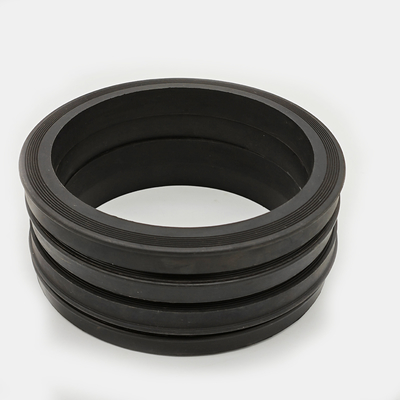

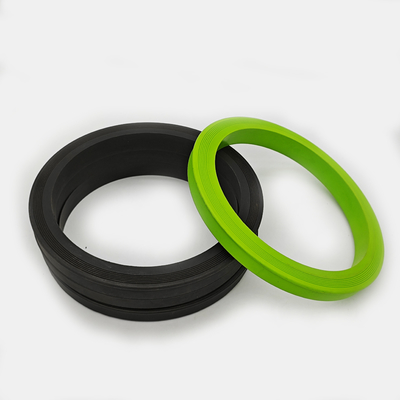

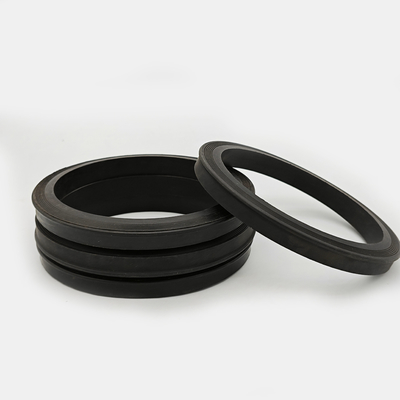

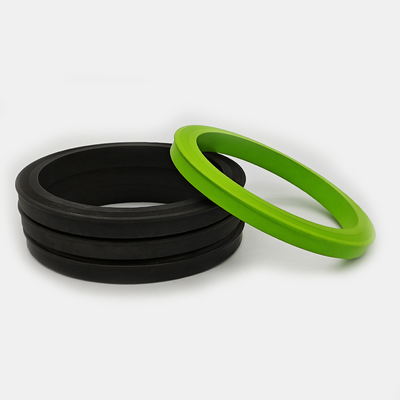

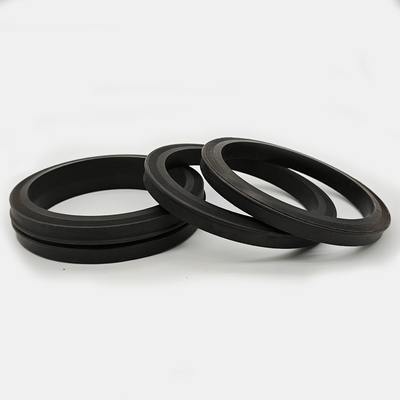

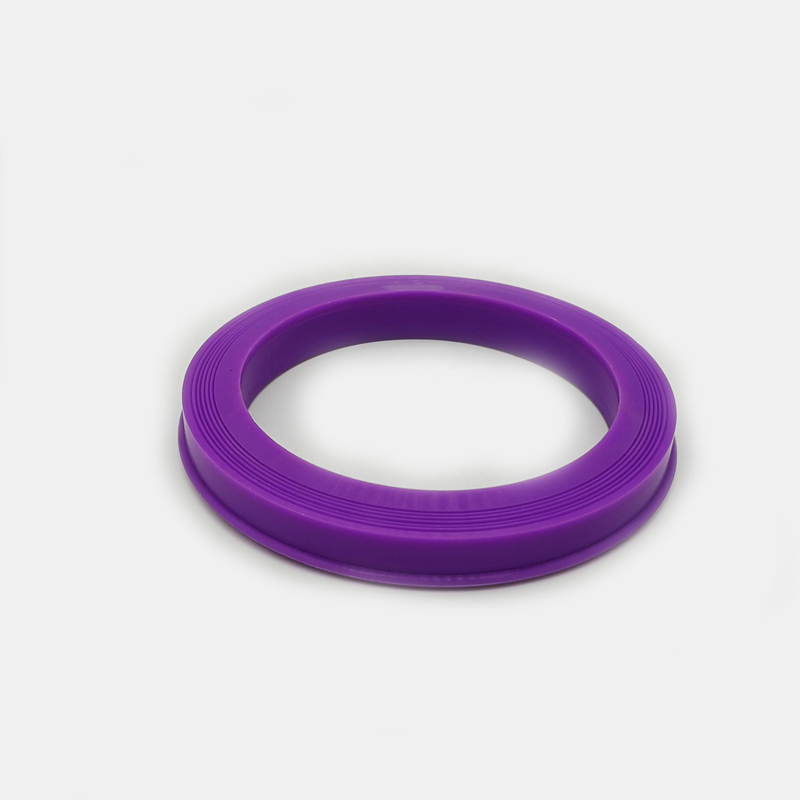

NBR / Buna-N Nitrile Union Seals for Oil and Gas Replacement Enquiries
Hammer Union Seals are used in the connections between flexible hoses or pipes used in the oil drilling industry. The seal provides a critical fluid tight connection within the union hardware.
Hammer Unions consist of a thread end, a nut end, and a hammer nut that when tightened seal the assembly with the assistance of an elastomeric seal. The seal is lipped to prevent it from falling out when inverted.
Material Introduction
NBR, HNBR and FKM are rubber compound alternatives. PTFE is a thermoplastic needing separate profile and support review. Compare the selected grade with the specified fluid and operating exposure.
| Material | Temperature Range | Advantage | Deficiencies |
| NBR(Nitrile, Buna-N) |
NBR temperature by selected compound Confirm continuous and peak exposure |
1.Presently the most widely used rubber in the seal industry 2.Exceptional balance of good mechanical properties, wear properties, and chemical resistance 3.Resistance to most mineral oils and greases |
Don't used with glycol-based brack fluids and strong acids |
| HNBR |
HNBR temperature by selected compound Confirm fluid and equipment requirements |
1.Nitrile based compound with improved chemical resistance 2.Wide temperature range 3.High stength material that resists extrusion, abrasion, and wear 4.Water and steam suitability by selected compound and exposure 5.Sour-service suitability requires compound-specific qualification 6.Commonly used with petroleum oils and co2 |
Don't use with chlorinated hydrocarbons, polar solvents, or strong acids |
| FKM(Fluorocarbon) |
FKM temperature by selected compound Confirm fluid and equipment requirements |
1.Excellent resistance to higher temperature, petroleum oils, and gasonline 2.Wide range of chemical resistance 3.Great ozone, weather, and aging resistance |
1.Poor low temperature characteriistic 2.Review sour gas, amines, hot water and steam against the exact FKM grade |
| PTFE |
PTFE temperature by grade and sealing design Separate thermoplastic construction review |
1.Chemical resistance, resistance to various organic solvents 2.High sealingperformance 3.anti-aging 4.Heat temperature resistance |
All Available Hammer Union Seals list
1'' 1502, Buna/FKM/HSN
1-1/2'' 1502, Buna/FKM/HSN
2'' 607, Guiberson style seal ring
2'' 602/1002/1502, Buna/FKM/HSN(Brass/Stainless backup)
3'' 602/1002/1502, Buna/FKM/HSN(Brass/Stainless backup)
4'' 602/1002/1502, Buna/FKM/HSN(Brass/Stainless backup)
2'' FIG 206, Buna/FKM/HSN(AS568-228)
3'' FIG 206, Buna/FKM/HSN; dash size by mating drawing
4'' FIG 206, Buna/FKM/HSN; dash size by mating drawing
Product details
![]()
![]()
![]()
![]()
Company Profile
NBR, Buna-N and nitrile identify the same polymer family for the featured union seal enquiry. Review the selected NBR compound against the process oil and every cleaning or flushing chemical that contacts the seal. Heat, oil and chemical resistance cannot be treated as one universal rating; concentration, exposure duration and temperature all belong in the specification.
The wider material comparison lists HNBR, FKM and PTFE alternatives for separate review. A change of polymer requires confirmation of the seal profile, hardness specification and support-ring arrangement. PTFE is a thermoplastic construction, so the same temperature range and Shore scale cannot be assumed across all four materials.
For nominal 1 to 7 inch union enquiries, provide the Figure number, mating hardware and drawing for each size. Include normal temperature, brief peaks, pressure cycles, quantity and inspection requirements. Confirm sample availability and lead time in the quotation. Suitability depends on the approved compound and complete assembly rather than the generic material names.
