| Place of Origin: | Shanghai,China |
| Brand Name: | Royal Way |
| Certification: | ISO 9001 |
| Model Number: | Fig 1502 1002 602 206 |
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | USD$0.1-3/PC |
| Packaging Details: | Carton/pallet |
| Delivery Time: | 7-15days according to the quantity of order |
| Payment Terms: | L/C, T/T, Western Union, Paypal |
| Supply Ability: | 100000 per month |
| Product Name: | Oilfield Hammer Union Replacement Seals By Thermal Duty | Material: | NBR, HNBR Or FKM By Fluid Duty; PTFE By Separate Design Review |
|---|---|---|---|
| Type: | Rubber-only Or Brass/stainless Support Configuration By Approved Drawing | Size: | Nominal Union Sizes 1 To 7 Inch By Enquiry; Profile By Mating Drawing |
| Color: | Black /Red/Purple/Green And Accept Custom | Shape: | Annular Union Seal; Cross-section By Approved Mating Drawing |
| Feature: | Thermal And Fluid Suitability By Selected Compound And Exposure | Application: | Oil And Gas Industry |
| Usage: | Replacement Sealing Element For The Specified Mating Union | Temperature: | By Selected Compound Or PTFE Grade, Fluid And Exposure |
| Hardness: | Confirm Value And Shore Test Scale For The Ordered Material | Samples: | Availability And Sample Lead Time By Quotation |
| Delivery Time: | 7-15 Days | Service: | OEM/ ODM |
| Packing: | Plastic Bag+ Carton+pallet | Certificate: | ISO 9001 Quality Management; Order Documents By Agreement |
| Highlight: | Durable Hammer Union Seal,PTFE Hammer Union Seal,Heat resistance Hammer Union Seal |
||
Durable NBR HNBR FKM PTFE Hammer Union Seals for oilfield
Product introduction
Hammer Union Seals are used in the connections between flexible hoses or pipes used in the oil drilling industry. The seal provides a critical fluid tight connection within the union hardware.
Hammer Unions consist of a thread end, a nut end, and a hammer nut that when tightened seal the assembly with the assistance of an elastomeric seal. The seal is lipped to prevent it from falling out when inverted.
Material Introduction
NBR, HNBR and FKM are rubber compound alternatives. PTFE is a thermoplastic needing separate profile and support review. Compare the selected grade with the specified fluid and operating exposure.
| Material | Temperature Range | Advantage | Deficiencies |
| NBR(Nitrile, Buna-N) |
NBR temperature by selected compound Confirm continuous and peak exposure |
1.Presently the most widely used rubber in the seal industry 2.Exceptional balance of good mechanical properties, wear properties, and chemical resistance 3.Resistance to most mineral oils and greases |
Don't used with glycol-based brack fluids and strong acids |
| HNBR |
HNBR temperature by selected compound Confirm fluid and equipment requirements |
1.Nitrile based compound with improved chemical resistance 2.Wide temperature range 3.High stength material that resists extrusion, abrasion, and wear 4.Water and steam suitability by selected compound and exposure 5.Sour-service suitability requires compound-specific qualification 6.Commonly used with petroleum oils and co2 |
Don't use with chlorinated hydrocarbons, polar solvents, or strong acids |
| FKM(Fluorocarbon) |
FKM temperature by selected compound Confirm fluid and equipment requirements |
1.Excellent resistance to higher temperature, petroleum oils, and gasonline 2.Wide range of chemical resistance 3.Great ozone, weather, and aging resistance |
1.Poor low temperature characteriistic 2.Review sour gas, amines, hot water and steam against the exact FKM grade |
| PTFE |
PTFE temperature by grade and sealing design Separate thermoplastic construction review |
1.Chemical resistance, resistance to various organic solvents 2.High sealingperformance 3.anti-aging 4.Heat temperature resistance |
All Available Hammer Union Seals list
1'' 1502, Buna/FKM/HSN
1-1/2'' 1502, Buna/FKM/HSN
2'' 607, Guiberson style seal ring
2'' 602/1002/1502, Buna/FKM/HSN(Brass/Stainless backup)
3'' 602/1002/1502, Buna/FKM/HSN(Brass/Stainless backup)
4'' 602/1002/1502, Buna/FKM/HSN(Brass/Stainless backup)
2'' FIG 206, Buna/FKM/HSN(AS568-228)
3'' FIG 206, Buna/FKM/HSN; dash size by mating drawing
4'' FIG 206, Buna/FKM/HSN; dash size by mating drawing

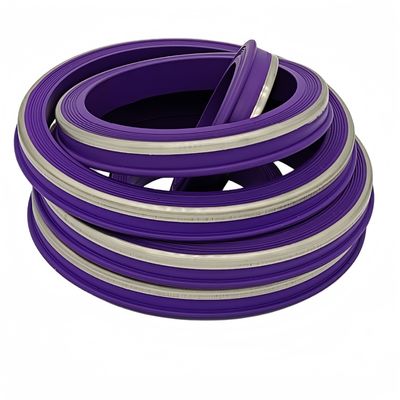

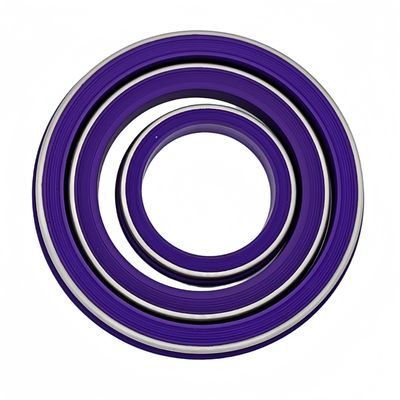

Product details
![]()
![]()
![]()
![]()
Company Profile
For hammer union seals exposed to changing temperatures, include cold start-up, normal operation, short peaks and the frequency of heating and cooling cycles. Service life depends on the exact compound, fluid exposure and assembly fit; the terms durable and heat resistant do not define a verified operating limit.
Review NBR, HNBR and FKM as separate rubber compound options. PTFE is a thermoplastic requiring its own seal profile and support design. Specify the required rubber-only, brass-supported or stainless-supported configuration and confirm hardness with the appropriate test scale for the selected material.
For nominal 1 to 7 inch enquiries, supply the Figure number, mating drawing, seal dimensions and quantity for each size. Include inspection requirements and planned maintenance conditions; confirm sample availability and delivery dates in the quotation. Pressure suitability follows the complete documented union rating. ISO 9001 relates to quality management, while order-specific origin and conformity documents should be agreed separately.
