Hammer Union Seal Selection for Figures 602, 1002 and 1502

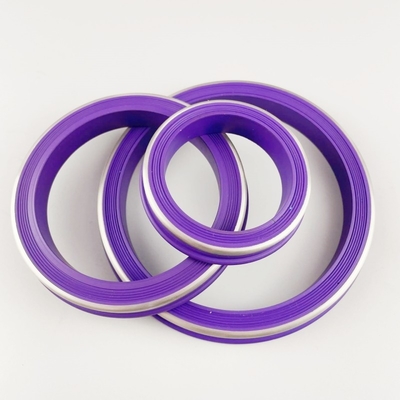

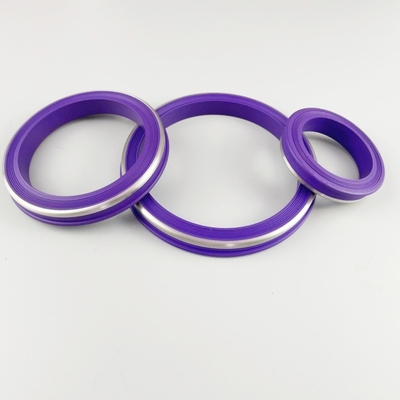

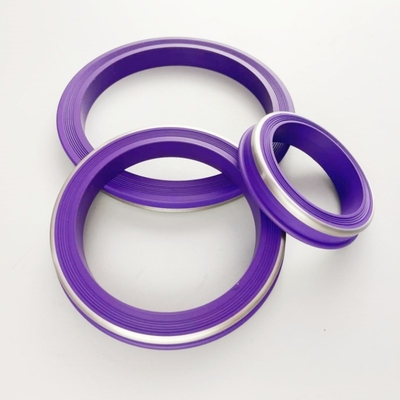

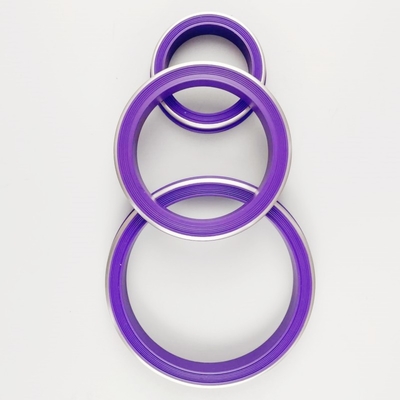

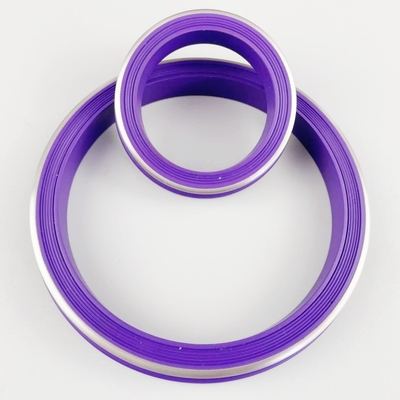

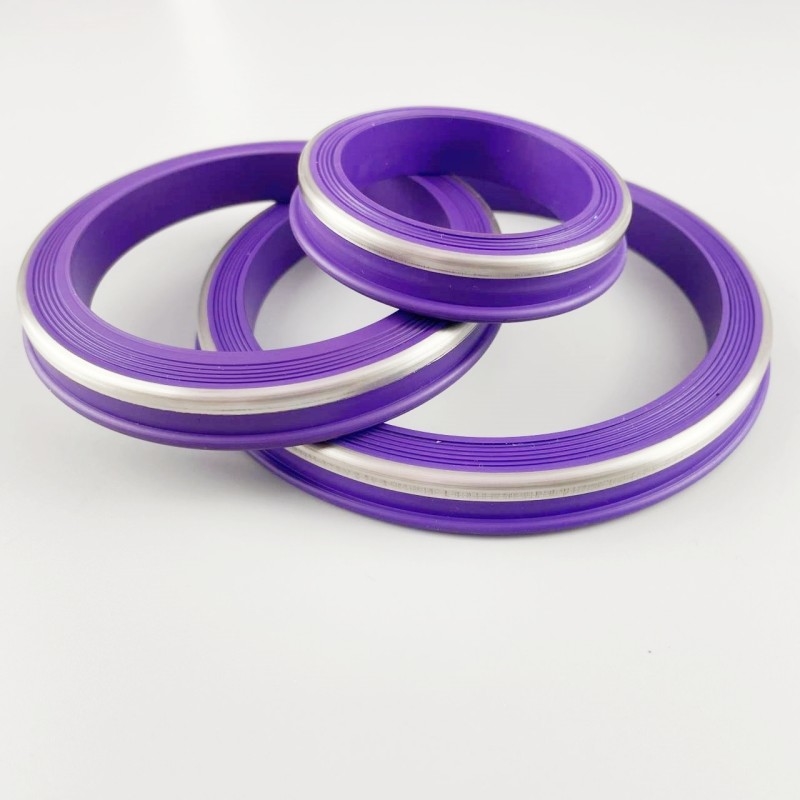

Replacement hammer union seals for oil and gas flowlines are ordered by union figure, nominal connection size and seal drawing. The catalogue below includes Figures 602, 1002 and 1502, plus separate Figure 206 O-ring references. Specify each part separately: a shared nominal size does not establish interchangeability between figures or manufacturers.
1. Pressure Resistance: Figures 602, 1002 and 1502 identify union configurations. Working pressure and testing must follow the complete identified assembly; a replacement seal has no independent assembly pressure rating.
2. Corrosion Resistance: Choose the specified NBR, HNBR or FKM compound against fluid composition, additives and operating temperature. Sour-gas service requires compound-specific qualification.
3. Ease of Installation: Confirm the seal recess, lip section and backing arrangement before installation. Follow the union manufacturer's inspection and replacement procedure.
4. Variety of Sizes and Materials: Nominal 1, 1-1/2, 2, 3 and 4-inch entries require individually matched dimensions. For brass or stainless anti-extrusion backing, include the ring section and backing details with the enquiry.
5. Safety: Provide maximum working pressure, temperature, fluid and pressure-cycle conditions for part selection. Inspect the complete union and carry out the required assembly test before returning it to service.
| 1" 1502, Buna / FKM/ HSN |
| 1-1/2" 1502, Buna / FKM/ HSN |
| 2" 602/1502, Buna / FKM/ HSN(Brass/Stainless Anti-Ext) |
| 3" 602/1502, Buna / FKM/ HSN(Brass/Stainless Anti-Ext) |
| 4" 602/1002/1502, Buna / FKM/ HSN(Brass/Stainless Anti-Ext) |
| 2" FIG 206, Buna / FKM/ HSN(AS568-228) |
| 3" FIG 206, Buna / FKM/ HSN(AS568-236) |
| 4" FIG 206, Buna / FKM/ HSN(AS568-346) |
|
1" 1502, Buna / FKM/ HSN
1-1/2" 1502, Buna / FKM/ HSN
1-1/2" 1502, Buna / FKM/ HSN
3" 602/1502, Buna / FKM/ HSN(Brass/Stainless Anti-Ext)
4" 602/1002/1502, Buna / FKM/ HSN(Brass/Stainless Anti-Ext)
2" FIG 206, Buna / FKM/ HSN(AS568-228)
3" FIG 206, Buna / FKM/ HSN(AS568-236)
4" FIG 206, Buna / FKM/ HSN(AS568-346)
|
Best Selling
Swivel Joint Repair Kits
Swivel Joint Repair Kits are comprehensive sets of components designed to maintain and restore the functionality of swivel joints, which are crucial in facilitating rotational movement while preventing fluid leakage in various mechanical systems. The kits typically include seals, O-rings, bearings, and other necessary components.
| 2" Normal Swivel Kit |
| 2" SMI-Oversized Swivel Joint Kits |
| 3" SPM Swivel Kit |
| 3" Swivel Kit |
| 3" Wide Swivel Kits |
| 4" 15k Forum Swivel Kits |
| 4" 10k FET-Flowvalve Swivel kits |
| 4" 15k TSI Swivel Kit |
| 4" 15k FlowValve Swivel Kit |
Redress Kit
Redress kit. Parts used to re-dress a tool after use. Roller Systems. Tools that utilise rollers to enhance intervention in deviated wells.
| #10 setting tool |
| #20 setting tool |
| #10 BP3.SEC kits |
| #20 BP3.SEC kits |
| AP Compact Setting Tool Kit |
| 3 1/2" Shorty Kits |
| DWS 3 5/8 COMPACT |
| Tool Trap Shaft Kit |
| T-BRT redress kit |
| GC Stripper Head Redress Kit |
| T-Set |
| #20 Firing Head Kit |
Plug valve seal Kits
Plug valve soft kits are vital components of plug valves, designed to ensure effective sealing and operation of the valve. These kits typically contain soft sealing materials tailored for various industrial applications.
| 1" Low Torque Plug Valve Seal Kit |
| 2"x1" Low Torque Plug Valve Seal Kit |
| 2"x2" Low Torque Plug Valve Seal Kit |
| 3" Low Torque Plug Valve Seal Kit |
| 4" Low Torque Plug Valve Seal Kit |
Swab cup
Swab cups are essential tools used in oilfield operations, primarily for well maintenance, cleaning, and intervention tasks.
TA style: TA is a medium load Swab Cup built around a steel or aluminum bushing for use in most sizes of tubing or drill pipe. When under load, it will compress to form a solid rubber mass for maximum lifting capacity and minimum wear. Manufactured from a newly developed rubber compound, these cups provide our customers with a high quality North American product. Our special Frac Fluid compound is developed for the ultimate in durability and performance. These Frac Swab Cups are designed to perform under the toughest conditions.
MV style: Shanghai Qinuo offers the popular MV Swab Cup in both nitrile and frac fluid rubber compound. The cup has either an aluminum or steel bushing with multiple upturned lips which allows it to pass through tight spots and control the amount of load. It is very efficient in fluid with suspended sand.
V style: Shanghai Qinuo carries the V Series Swab Cup in a light duty and heavy duty all rubber cup that is suited for use in fluids with high concentrations of suspended sand. The upturned lips pass easily through tight spots and will invert to dump excessive loads. The number of cups used will vary with conditions.
TUF style: The design of the GE-TUF cup, with its internal metal reinforcement which maintains the shape of the cup, makes this an excellent choice for deep hot wells or rough and corroded tubing and casing. Strong enough for heavy loads, its flexability also allows it to work in light load situations.
NUF style: The GE-NUF is a heavy load all rubber cup that provides maximum lifting capacity. Bonded to either standard steel or aluminum bushings, and available in a wide range of sizes, this cup is a good choice for deep well applications. This cup is designed for high performance and heavy loads. Made of our special Frac Fluid compound, it will perform under the toughest conditio
