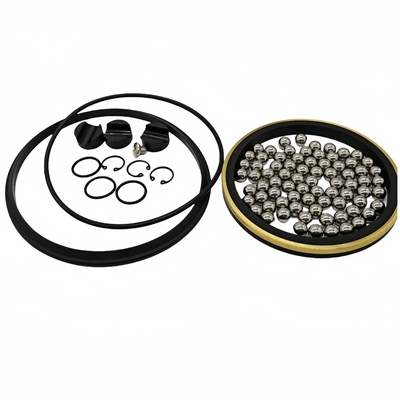

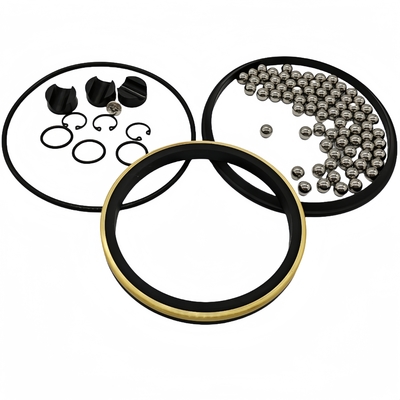

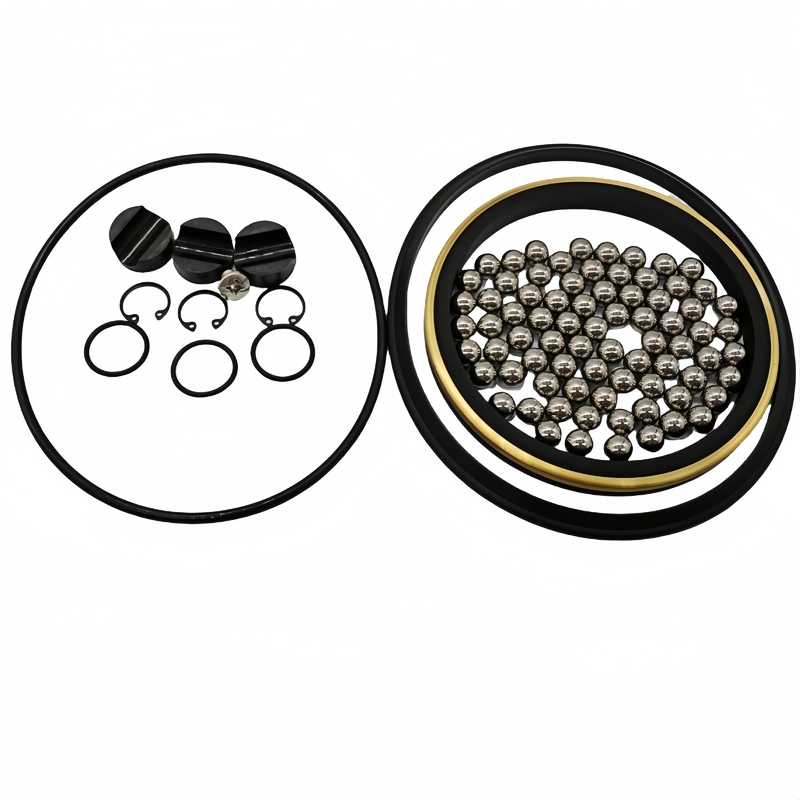

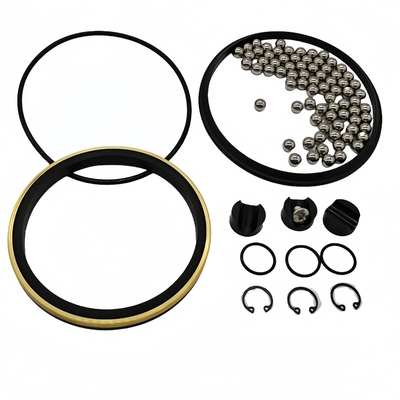

4-inch 15K Kemper Swivel Joint Seal Ring Maintenance Kit

Chiksan/FMC/TSI/SPM Swivel joint maintenance requires components matched to the identified joint rather than a setting tool reference. This swivel joint kit has a nominal 4-inch 15K Kemper assembly reference. Confirm the assembly model, repair kit reference and seal ring dimensions. Setting tool redress kits are selected separately and do not establish compatibility with this swivel joint.

SHQN® supports seal replacement and lubrication according to the equipment maintenance procedure. For the 4-inch 15K Kemper seal ring kit, specify each seal cross-section, mating dimension and compound, with ball plug, steel balls and washer included only where required by the assembly bill of materials. Provide service fluid, temperature range and pressure cycles for selection and inspect mating surfaces before replacement.

What we Shanghai Qinuo Industry Provide:

Rubber O rings

• Rubber O rings -As568 series rubber o rings/JB standard rubber o rings.
• Encapsulated rubber o rings- silicone/ FKM rubber o rings
• PTFE coating rubber o rings-kinds of color rubber o rings

Hammer Union seals- 1" 1.5" 2 3" 4" 6" 7"

• Rubber hammer union seals-Buna/FKM/HNBR rubber type
• Rubber w/brass or stainless steel back up types

Swab cups

• V types 4" 5.5" ect.
• TA type
• MV type
• NUF type
• TUF type

​

Rubber seal kits- custom packing or lable is available

• #10 setting tool - With burst disk
• #20 setting tool - With burst disk
• AP Compact Setting Tool Kit
• Grease Tubes Seal Kit
• 3 1/2” Shorty Kits
• 3 - 1/8" Weight Bar Kit
• #10 Baker Firing Head Kit
• #20 Firing Head Kit
• #20 BP3.SEC kits
• #10 BP3.SEC kits
• T-BRT redress kit
• T-1 Set
• GC Stripper Head Redress Kits

Wireline Component Parts:

1) Pressure Relief Disc, ZD Plated (application:rupture(bleeder) Disc)

2) Rubber Push Pin -black

3) Nylon Push Pin -natural

4) Retainer Nut, Steel, ZD Plated (Flat, beveled also available) (application: retainer nut)

5) Threaded Steel Plug, w/ Lathe Cut (application:5" port plug)

6) Threaded Brass Plug (application: setting tool plug )
