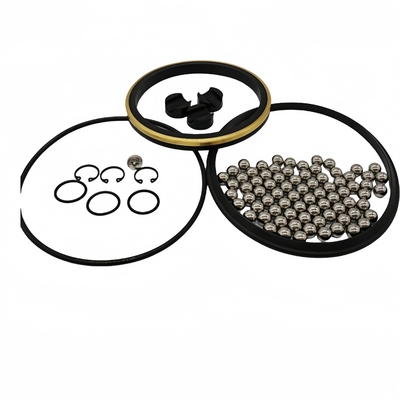

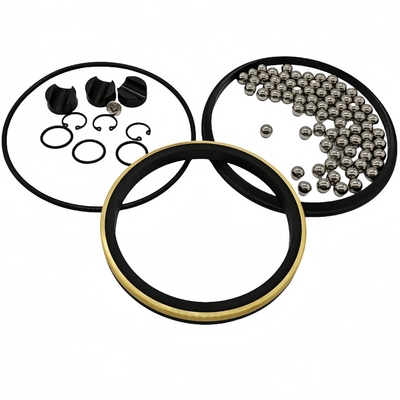

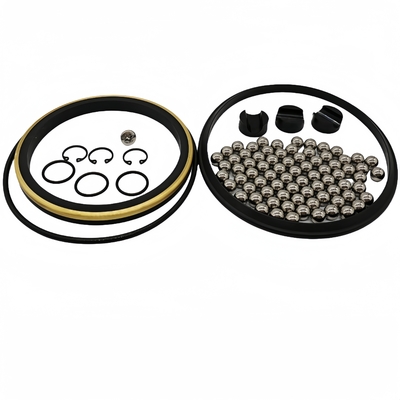

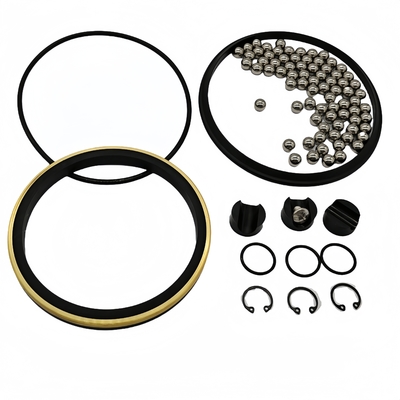

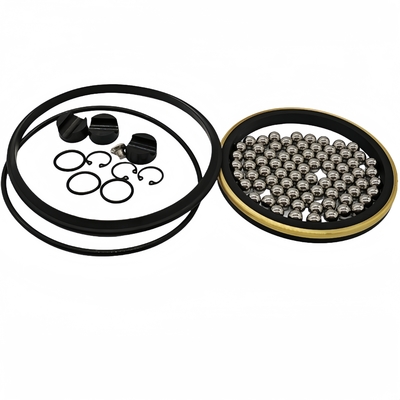

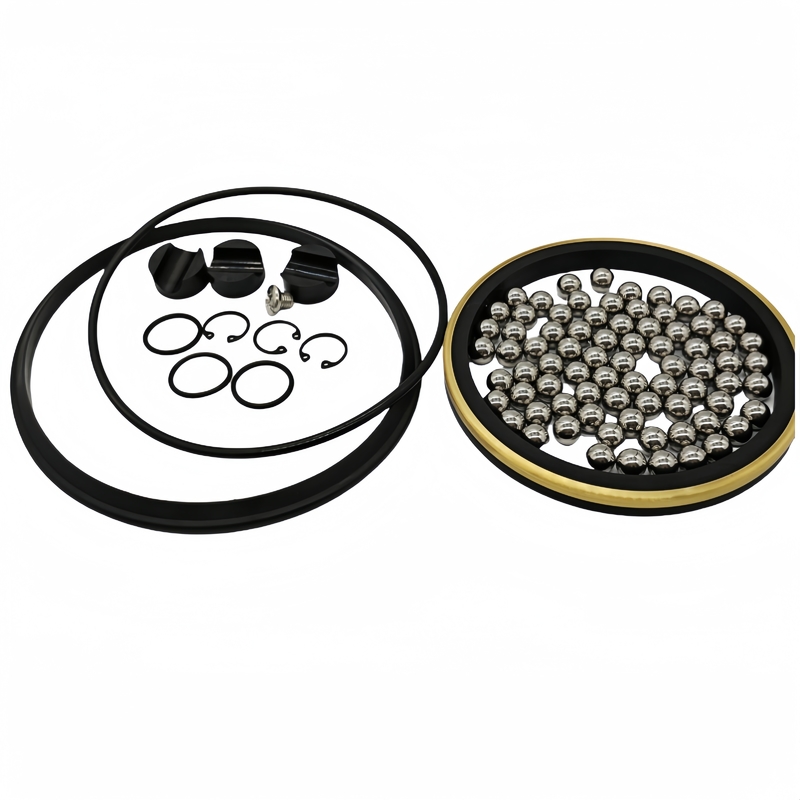

4-inch 15K Kemper Swivel Joint Repair Kit with Steel Balls and Retaining Components

Chiksan/FMC/TSI/SPM Swivel joint maintenance requires seals and bearing components matched to the identified assembly. This swivel joint kit has a nominal 4-inch 15K Kemper assembly reference. The listed 105-piece steel ball quantity must be checked against the exact joint bill of materials, ball diameter and bearing arrangement before ordering. A matching nominal size alone does not establish interchangeability between joint models.

SHQN® supports inspection and lubrication according to the equipment maintenance procedure. For the 4-inch 15K Kemper swivel joint repair kit, specify ball diameter, quantity and material grade, dust seal and fluid seal dimensions, and the required snap ring or other retaining component. Inspect grooves and bearing races for wear. Select the seal compound for the service fluid and temperature; the repaired assembly requires its prescribed inspection and testing.

What we Shanghai Qinuo Industry Provide:

Rubber O rings

• Rubber O rings -As568 series rubber o rings/JB standard rubber o rings.
• Encapsulated rubber o rings- silicone/ FKM rubber o rings
• PTFE coating rubber o rings-kinds of color rubber o rings

Hammer Union seals- 1" 1.5" 2 3" 4" 6" 7"

• Rubber hammer union seals-Buna/FKM/HNBR rubber type
• Rubber w/brass or stainless steel back up types

Swab cups

• V types 4" 5.5" ect.
• TA type
• MV type
• NUF type
• TUF type

​

Rubber seal kits- custom packing or lable is available

• #10 setting tool - With burst disk
• #20 setting tool - With burst disk
• AP Compact Setting Tool Kit
• Grease Tubes Seal Kit
• 3 1/2” Shorty Kits
• 3 - 1/8" Weight Bar Kit
• #10 Baker Firing Head Kit
• #20 Firing Head Kit
• #20 BP3.SEC kits
• #10 BP3.SEC kits
• T-BRT redress kit
• T-1 Set
• GC Stripper Head Redress Kits

Wireline Component Parts:

1) Pressure Relief Disc, ZD Plated (application:rupture(bleeder) Disc)

2) Rubber Push Pin -black

3) Nylon Push Pin -natural

4) Retainer Nut, Steel, ZD Plated (Flat, beveled also available) (application: retainer nut)

5) Threaded Steel Plug, w/ Lathe Cut (application:5" port plug)

6) Threaded Brass Plug (application: setting tool plug )
