3 Inch Coiled Tubing Reel Swivel Joint Repair and Sealing Kits
Chiksan/FMC/TSI/SPM Swivel joint maintenance enquiries require the exact reel swivel model and seal drawing. Fluid exposure, abrasive particles and operating conditions can affect seals and sealing surfaces. Inspect the complete assembly and replace worn components according to the original joint maintenance instructions.
SHQN® supplies replacement seal enquiries by drawing or sample; follow the joint manufacturer instructions for inspection intervals, seal replacement and lubrication.
We offer Swivel Joint Repair kits for model-specific maintenance. Confirm each kit component and quantity before ordering.

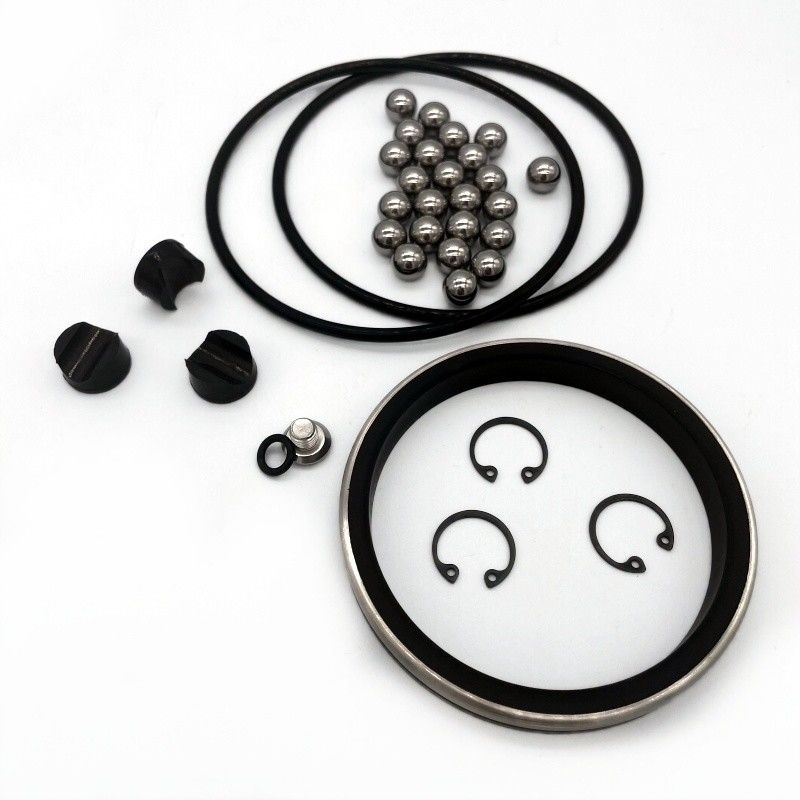

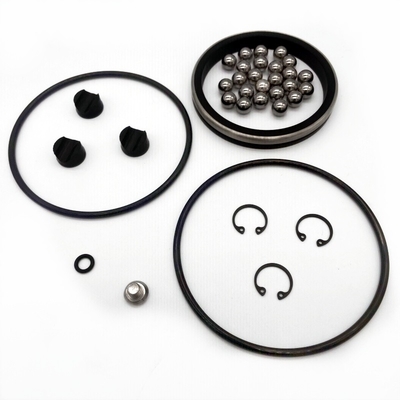

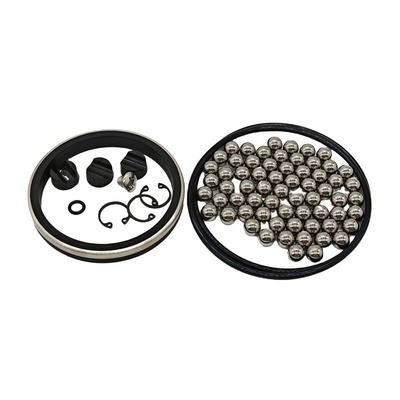

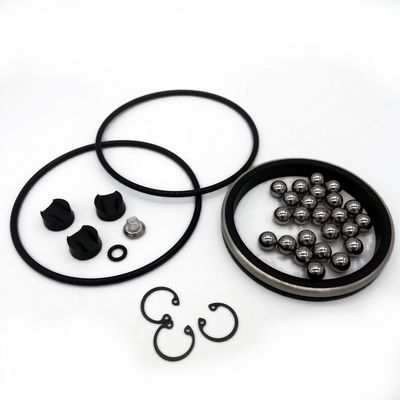

3 Inch Coiled Tubing Reel Swivel Seal Kit Selection
For a reel swivel seal-kit enquiry, send the reel and swivel model, assembly part number and seal-groove drawing. Identify the sealing ring cross-section and diameters, backup-ring profile, and any ball plugs, steel balls or washers required. State whether the enquiry is for rubber seals only or a complete component kit.
Specify the operating fluid, temperature range and existing joint rating for compound selection. The nominal 3 inch size and an FMC or Chiksan reference alone do not confirm fit. The reference list below covers different joint designs; verify the specific kit against the original assembly before installation.
| Swivel kit references for model-specific enquiries |
|
2" Normal Swivel Kit
|
|
2” SMI- Oversized Swivel Kit
|
|
3" SPM Swivel Kit
|
|
3" FMC Swivel Kit
|
|
3" Wide Swivel Kit
|
|
3" TSI Swivel Kit
|
|
4" 15k Kemper Swivel Kit
|
|
4" 15k Forum Swivel Kit
|
|
4" 15k FlowValve Swivel Kit
|
|
4" 15k TSI Swivel Kit
|
| ... |
What we Shanghai Qinuo Industry Provide:
Rubber O rings
- Rubber O rings -As568 series rubber o rings/JB standard rubber o rings.
- Encapsulated rubber o rings- silicone/ FKM rubber o rings
- PTFE coating rubber o rings-kinds of color rubber o rings
Hammer Union seals- 1" 1.5" 2 3" 4" 6" 7"
- Rubber hammer union seals-Buna/FKM/HNBR rubber type
- Rubber w/brass or stainless steel back up types
Swab cups
- V types 4" 5.5" ect.
- TA type
- MV type
- NUF type
- TUF type
Rubber seal kits- custom packing or lable is available
- #10 setting tool - With burst disk
- #20 setting tool - With burst disk
- AP Compact Setting Tool Kit
- Grease Tubes Seal Kit
- 3 1/2” Shorty Kits
- 3 - 1/8" Weight Bar Kit
- #10 Baker Firing Head Kit
- #20 Firing Head Kit
- #20 BP3.SEC kits
- #10 BP3.SEC kits
- T-BRT redress kit
- T-1 Set
- GC Stripper Head Redress Kits
Wireline Component Parts:
1) Pressure Relief Disc, ZD Plated (application:rupture(bleeder) Disc)
2) Rubber Push Pin -black
3) Nylon Push Pin -natural
4) Retainer Nut, Steel, ZD Plated (Flat, beveled also available) (application: retainer nut)
5) Threaded Steel Plug, w/ Lathe Cut (application:5" port plug)
6) Threaded Brass Plug (application: setting tool plug )
More pictures of our products for reference:
Corner View of our factory:
Our Service capability:
| Customized services |
Plastic & Rubber bonding |
Mold Design |
| Customized extrusion |
Extrusion and bonded gaskets |
Mold Production |
| Injection Molding |
Self Adhesive rubber profile |
Customized Package |
| Sheet Cutting |
Rubber Complex Intake Hose |
Problem Solving |
| Standard Size extrusion |
Reinforced rubber tubes |
Assembly |
| Special Compound design |
Rubber Solution Suggestion |
Sourcing |
| Rubber& Metal bonding |
FAQ:
Q1: Are you manufacture or trading company?
We are manufacture. Our factory located in Haimen District, Nantong City, Jiangsu Province.
Q2: How can we guarantee quality?
Always a pre-production sample before mass production;Always final Inspection before shipment;
Q3: Can I get some samples?
Sure, samples are available,3-10 samples are for free. Please note that only needs to pay for shipping cost.
Q4: Can you produce OEM products?
Yes, we can produce by your samples or 3D drawings. We can build the molds and fixtures.
Q5: What's the term of payment ?
Amount < US$5000,100% paid in advance by paypal or T/T;
Amount >= US$5000, 30% paid in advance, 70% balance before shipment by T/T
Q6: Can you manage the shipment?
Sure, we can arrange different ship ways according to the goods final packing: by express, by air or by sea.
Q7: What is the lead time?
Stock goods: generally within 7days according to the quantity.
Produce Goods: 12-25days according to the packing and quantity.
