2-inch Normal Swivel Joint Ring Seal Repair Kit

Chiksan/FMC/TSI/SPM Swivel joint maintenance uses replacement seals and hardware selected for the identified assembly. This listing is for the nominal 2-inch normal swivel kit configuration. Confirm the manufacturer, joint model and kit reference before selecting components for coiled tubing equipment. Provide the seal groove dimensions, fluid composition and temperature range for the seal compound review.

SHQN® supports replacement of packings and seals and lubrication according to the equipment maintenance procedure. Inspect sealing surfaces and bearing tracks before fitting replacement components.

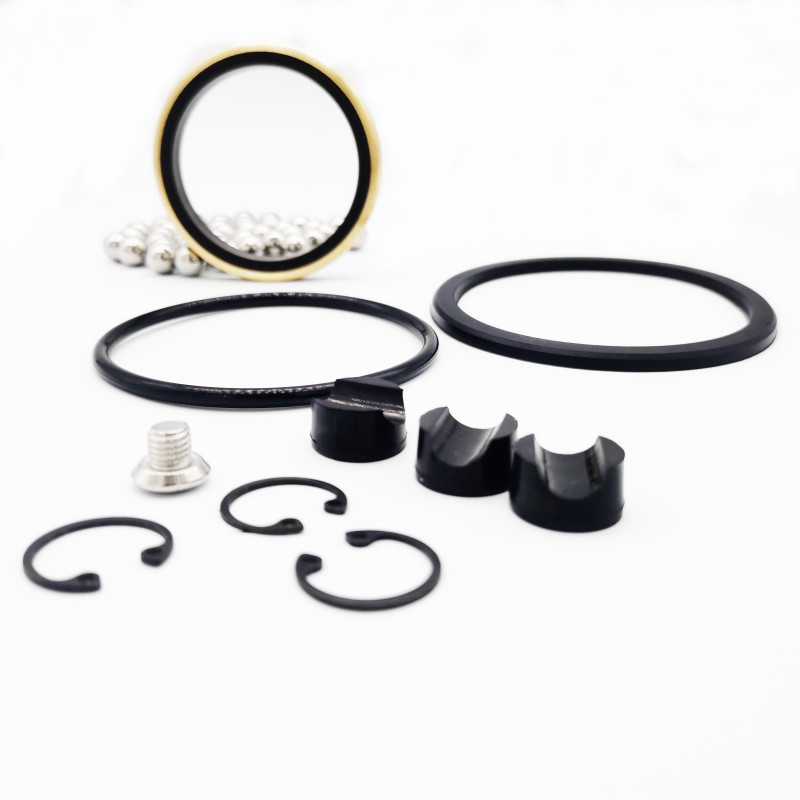

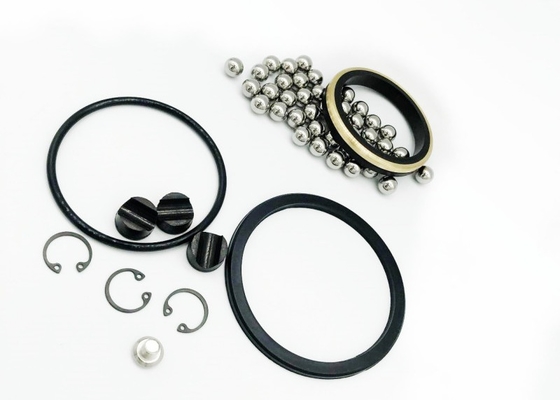

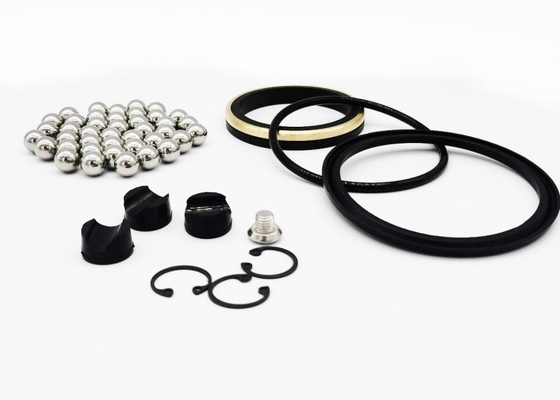

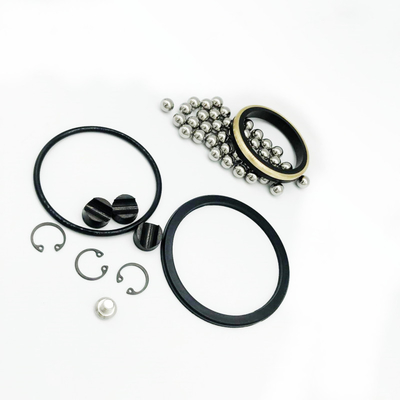

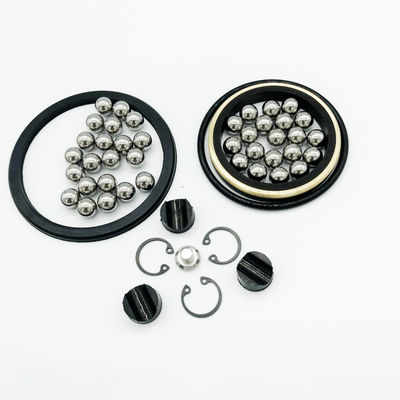

The 2-inch normal swivel joint repair kit component list includes O-rings, seals, a ball plug, steel balls and a washer only as specified by the confirmed kit bill of materials. Record the seal cross-sections, ball diameter and quantities separately. A 2-inch normal kit requires its own fit check and should not be selected solely from the nominal size of a 2-inch oversized joint. Confirm FMC compatibility from the equipment and kit references.

What we Shanghai Qinuo Industry Provide:

Rubber O rings

• Rubber O rings -As568 series rubber o rings/JB standard rubber o rings.
• Encapsulated rubber o rings- silicone/ FKM rubber o rings
• PTFE coating rubber o rings-kinds of color rubber o rings

Hammer Union seals- 1" 1.5" 2 3" 4" 6" 7"

• Rubber hammer union seals-Buna/FKM/HNBR rubber type
• Rubber w/brass or stainless steel back up types

Swab cups

• V types 4" 5.5" ect.
• TA type
• MV type
• NUF type
• TUF type

​

Rubber seal kits- custom packing or lable is available

• #10 setting tool - With burst disk
• #20 setting tool - With burst disk
• AP Compact Setting Tool Kit
• Grease Tubes Seal Kit
• 3 1/2” Shorty Kits
• 3 - 1/8" Weight Bar Kit
• #10 Baker Firing Head Kit
• #20 Firing Head Kit
• #20 BP3.SEC kits
• #10 BP3.SEC kits
• T-BRT redress kit
• T-1 Set
• GC Stripper Head Redress Kits

Wireline Component Parts:

1) Pressure Relief Disc, ZD Plated (application:rupture(bleeder) Disc)

2) Rubber Push Pin -black

3) Nylon Push Pin -natural

4) Retainer Nut, Steel, ZD Plated (Flat, beveled also available) (application: retainer nut)

5) Threaded Steel Plug, w/ Lathe Cut (application:5" port plug)

6) Threaded Brass Plug (application: setting tool plug )

More pictures of our products for reference:

Corner View of our factory:

Our Service capability:

FAQ:
