1 to 7 Inch Union Seals: NBR, FKM and HNBR Compound and Color Options

Hammer union seals are used in the connections between flexible hoses or pipes used in the oil drilling industry. The seal provides a critical fluid tight connection within the union hardware.
Hammer unions consist of a thread end, a nut end, and a hammer nut that when tightened seal the assembly with the assistance of an elastomeric seal. The seal is lipped to prevent it from falling out when inverted.
Some profiles such as Fig 206, Fig 1004, Fig 1502, Fig 2002, Fig 602, Fig 1002 etc require a Hammer Union Lip Seal or an 'O'Ring depending on the Size of the Hammer Union.

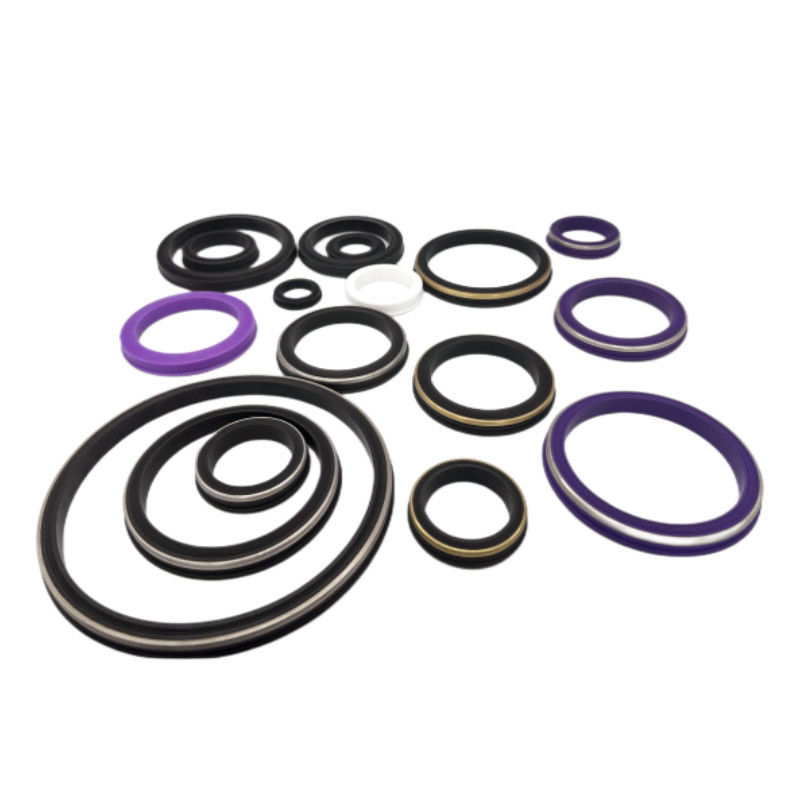

We produce 1" ,1.5",2",3",4" ,6" and 7"Hammer Union Seals in NBR, FKM or HNBR compounds selected for the specified fluid and service requirements. In addition to the standard molded rubber seals, we offer these with either a brass or stainless steel anti-extrusion ring.

Color identification for mixed-size union seal orders

For orders covering 1, 1.5, 2, 3, 4, 6 and 7 inch nominal connections, identify each seal by the union manufacturer, figure reference and profile drawing. Nominal connection size alone does not define the seal dimensions. Agree a color code for warehouse sorting and keep the compound designation on the packaging; color does not establish NBR, FKM or HNBR composition, hardness or service suitability. Specify the approved hardness and any brass or stainless steel backing separately for each item. Use the same part reference and drawing revision when replenishing stock.

What we Shanghai Qinuo Industry Provide:

Rubber O rings

• Rubber O rings -As568 series rubber o rings/JB standard rubber o rings.
• Encapsulated rubber o rings- silicone/ FKM rubber o rings
• PTFE coating rubber o rings-kinds of color rubber o rings

Hammer Union seals- 1" 1.5" 2 3" 4" 6" 7"

• Rubber hammer union seals-Buna/FKM/HNBR rubber type
• Rubber w/brass or stainless steel back up types

Swab cups

• V types 4" 5.5" ect.
• TA type
• MV type
• NUF type
• TUF type

​

Rubber seal kits- custom packing or lable is available

• #10 setting tool - With burst disk
• #20 setting tool - With burst disk
• AP Compact Setting Tool Kit
• Grease Tubes Seal Kit
• 3 1/2” Shorty Kits
• 3 - 1/8" Weight Bar Kit
• #10 Baker Firing Head Kit
• #20 Firing Head Kit
• #20 BP3.SEC kits
• #10 BP3.SEC kits
• T-BRT redress kit
• T-1 Set
• GC Stripper Head Redress Kits

Wireline Component Parts:

1) Pressure Relief Disc, ZD Plated (application:rupture(bleeder) Disc)

2) Rubber Push Pin -black

3) Nylon Push Pin -natural

4) Retainer Nut, Steel, ZD Plated (Flat, beveled also available) (application: retainer nut)

5) Threaded Steel Plug, w/ Lathe Cut (application:5" port plug)

6) Threaded Brass Plug (application: setting tool plug )
