Oil And Gas Industry 1"-7" Oil Resistant Hammer Union Seals With Brass Back Up Customizable

Oil And Gas Industry 1"-7" Oil Resistant Hammer Union Seals With Brass Back Up Customizable

Product Details:
Place of Origin: Shanghai, China
Brand Name: Royal Way
Certification: ISO 9001
Model Number: Fig 1502 1002 602 206 607
Payment & Shipping Terms:
Minimum Order Quantity: 200pcs
Price: EXW USD$1-$4.3/pc
Packaging Details: 40cm*40cm*40cm carton
Delivery Time: 5-12days according to the quantity of order
Payment Terms: T/T, Western Union, L/C, Paypal
Supply Ability: 50000pcs per week
Contact Now
Detailed Product Description
Name: Hammer Union Seal Size: Nominal Union Sizes 1, 1.5, 2, 3, 4, 6 And 7 Inch; Profile By Drawing
Material:: Approved NBR/HNBR/FKM Or PTFE Grade; Brass Backup To Drawing Type: Union Figure And Maker To Exact Seal Drawing; Profiles Are Not Interchangeable
MOQ: 200pcs Hardness: 80-95 Shore A Old Elastomer Reference; Selected Grade And Tolerance By Approval
Feature: Oil And Wear Compatibility To Selected Compound And Support Geometry Color: Black /Red/Purple/Green And Accept Custom
Application: Oil And Gas Industry Pressure Rating: By Complete Union Specification; Seal Alone Has No Universal Pressure Rating
Temperature Range: By Selected Grade, Fluid And Complete Union Specification Sample: Freely
Packing: Plastic Bag+ Carton+pallet
Highlight:

Brass Back Up Hammer Union Seal

,

7” Hammer Union Seal

,

Customizable Hammer Union Seal

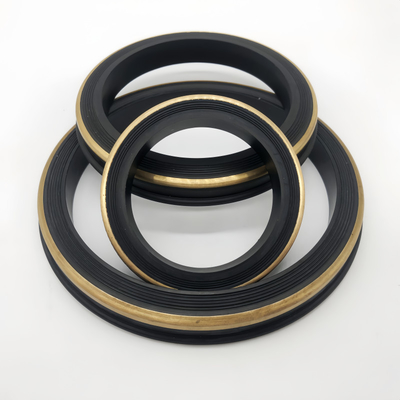

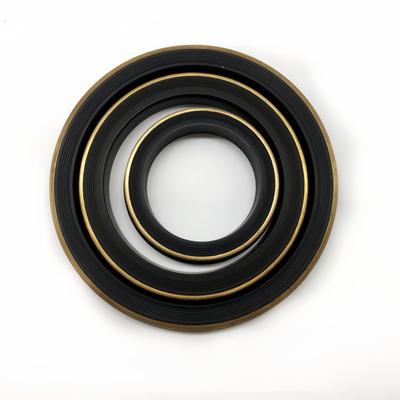

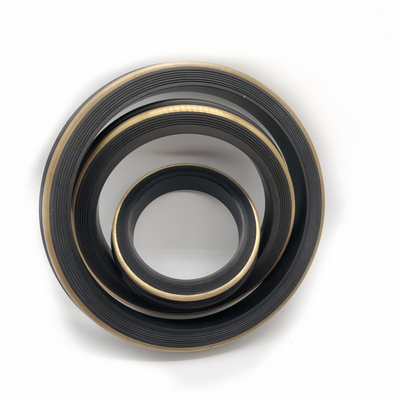

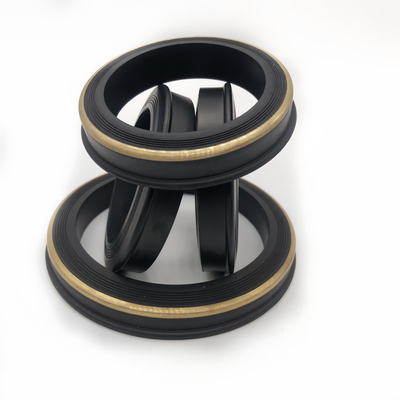

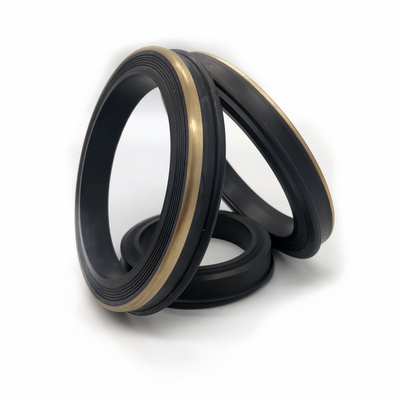

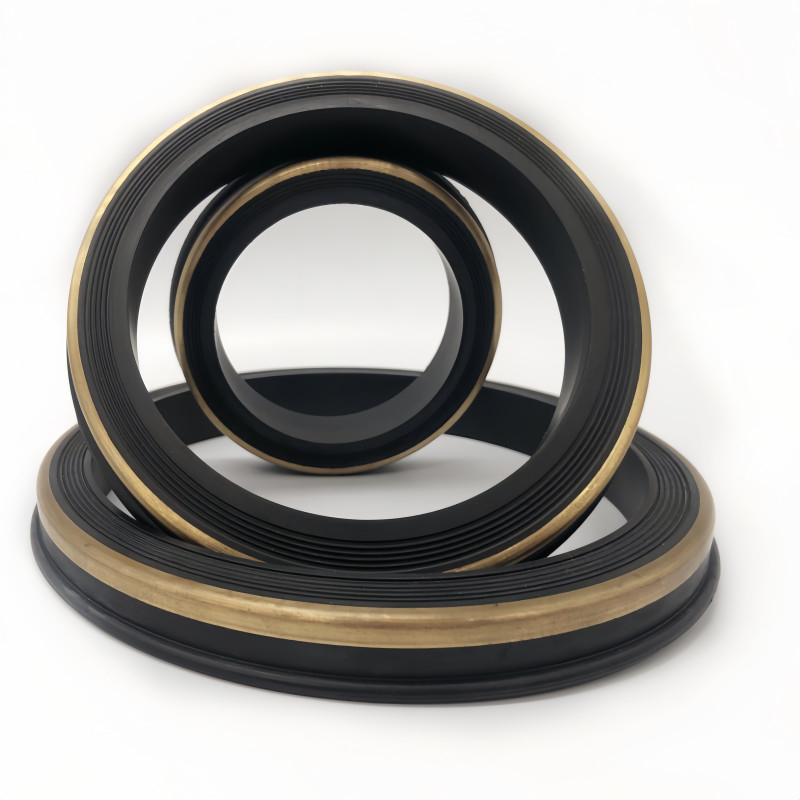

   Hammer Union Seals with Brass Backup — Nominal Size and Custom Profile Selection

Oil And Gas Industry 1"-7" Oil Resistant Hammer Union Seals With Brass Back Up CustomizableOil And Gas Industry 1"-7" Oil Resistant Hammer Union Seals With Brass Back Up CustomizableOil And Gas Industry 1"-7" Oil Resistant Hammer Union Seals With Brass Back Up CustomizableOil And Gas Industry 1"-7" Oil Resistant Hammer Union Seals With Brass Back Up CustomizableOil And Gas Industry 1"-7" Oil Resistant Hammer Union Seals With Brass Back Up CustomizableOil And Gas Industry 1"-7" Oil Resistant Hammer Union Seals With Brass Back Up Customizable









    A hammer union seal is a type of seal that is used in hammer union-style pipe connections. Hammer unions are a type of quick-connect coupling that is used to connect two pieces of pipe together. They are often used in the oil and gas industry, as well as in other industries where it is important to be able to quickly connect and disconnect pipes.

    Hammer union seals are made of a variety of materials, including elastomers, metal, and composite materials. Sealing performance depends on the approved seal profile, union condition, compound and installation. Hammer union seals are available in a variety of sizes and styles to accommodate different pipe sizes and applications.

    Hammer union seals are a critical component of hammer union-style pipe connections. Select the seal to the exact union maker, figure and nominal size; pressure rating belongs to the complete connection.

Some profiles such as Fig 2202, Fig 1004, Fig 1502, Fig 2002, Fig 602, Fig 1002 etc require a Hammer Union Lip Seal or an 'O'Ring depending on the Size of the Hammer Union.
    Nominal union-size references include 1, 1.5, 2, 3, 4, 6 and 7 inches. Nitrile, FKM or HNBR grades are selected against actual fluid and temperature; sour-gas service requires compound-specific qualification. In addition to the standard molded rubber seals, we offer these with either a brass or stainless steel anti-extrusion ring.



Size: 1" 1.5" 2" 3" 4" 6" 7" and accept custom
Material: Approved NBR, FKM, HNBR or PTFE grade; brass backup construction by union drawing





Here are some of the benefits of using hammer union seals:



Quick and easy installation: Follow the union-maker procedure and confirm profile, groove condition and support-ring seating before assembly.
Sealing fit: Confirm seal geometry and installation against the specified union; leak performance requires equipment-specific acceptance.
Durable: Wear and extrusion behaviour depend on the approved grade, support geometry and actual operating conditions.
Cost-effective: Hammer union seals are a cost-effective option for sealing hammer union-style pipe connections.
If you are looking for a reliable and cost-effective way to seal hammer union-style pipe connections, then hammer union seals are a good option.



What we Shanghai Qinuo Industry Provide:



Rubber O rings

  • Rubber O rings -As568 series rubber o rings/JB standard rubber o rings.
  • Encapsulated rubber o rings- silicone/ FKM rubber o rings
  • PTFE coating rubber o rings-kinds of color rubber o rings

Oil And Gas Industry 1"-7" Oil Resistant Hammer Union Seals With Brass Back Up Customizable

Hammer Union seals- 1" 1.5" 2'' 3" 4" 6" 7"

  • Rubber hammer union seals-Buna/FKM/HNBR/PTFE rubber
  • Rubber hammer union seals with brass/stainless back up



Oil And Gas Industry 1"-7" Oil Resistant Hammer Union Seals With Brass Back Up Customizable

Swab cups

  • V types 4" 5.5" ect.
  • TA type
  • MV type
  • NUF type
  • TUF type

Oil And Gas Industry 1"-7" Oil Resistant Hammer Union Seals With Brass Back Up Customizable







Rubber seal kits- custom packing or lable is available

  • #10 setting tool - With burst disk
  • #20 setting tool - With burst disk
  • AP Compact Setting Tool Kit
  • Grease Tubes Seal Kit
  • 3 1/2” Shorty Kits
  • 3 - 1/8" Weight Bar Kit
  • #10 Baker Firing Head Kit
  • #20 Firing Head Kit
  • #20 BP3.SEC kits
  • #10 BP3.SEC kits
  • T-BRT redress kit
  • T-1 Set
  • GC Stripper Head Redress Kits



Wireline Component Parts:

1) Pressure Relief Disc, ZD Plated (application:rupture(bleeder) Disc)

2) Rubber Push Pin -black

3) Nylon Push Pin -natural

4) Retainer Nut, Steel, ZD Plated (Flat, beveled also available) (application: retainer nut)

5) Threaded Steel Plug, w/ Lathe Cut (application:5" port plug)

6) Threaded Brass Plug (application: setting tool plug )





Rubber Packer Elements:

Oil And Gas Industry 1"-7" Oil Resistant Hammer Union Seals With Brass Back Up Customizable

Rubber Oil Savers:

Oil And Gas Industry 1"-7" Oil Resistant Hammer Union Seals With Brass Back Up Customizable

Seal repair kit:

Oil And Gas Industry 1"-7" Oil Resistant Hammer Union Seals With Brass Back Up Customizable

Oil And Gas Industry 1"-7" Oil Resistant Hammer Union Seals With Brass Back Up CustomizableOil And Gas Industry 1"-7" Oil Resistant Hammer Union Seals With Brass Back Up CustomizableOil And Gas Industry 1"-7" Oil Resistant Hammer Union Seals With Brass Back Up Customizable



Contact us for seal and backup-ring selection:

www.unionseal.com

Brass Backup Seal Enquiries: Separate Nominal Size from Custom Dimensions

The 1-to-7-inch range describes nominal union-size references, not a continuous range of interchangeable seals. Confirm each union figure and part drawing. A custom brass support ring must preserve the specified interface with the rubber seal and union groove; changing the ring material or profile requires approval.

Order detail Information needed
Connection Union maker, figure, nominal size and existing seal part number.
Brass support Ring grade, dimensions, section and bonded or separate arrangement.
Rubber profile Sealing lips, support interface and critical drawing tolerances.
Compound Fluid, additives, temperature and selected elastomer grade; agree Shore A hardness where applicable.
Custom acceptance Approve drawing and sample fit before repeat production; complete connection rating remains equipment-specific.
