Name: 2" FKM Seal Rings Fig 607 Guiberson 6000PSI Union Seal For Hammer Union
Brand: Shanghai Qinuo Industry Co., Ltd.
SKU: Fig 607
Price: 0.10 USD
Availability: InStock

Home Products Hammer Union Seal

2" FKM Seal Rings Fig 607 Guiberson 6000PSI Union Seal For Hammer Union

Product Details:

Place of Origin:	Shanghai, China
Brand Name:	Royal Way
Certification:	ISO9001
Model Number:	Fig 607

Payment & Shipping Terms:

Minimum Order Quantity:	200pcs
Price:	0.1~2USD/PCS
Packaging Details:	404040cm Carton packing(Carton in pallets if necessary)
Delivery Time:	3-10 days
Payment Terms:	T/T, Western Union, L/C, Paypal
Supply Ability:	50000 PCS Per Month

Contact Now

Detailed Product Description

Features:	Figure 607 Replacement Seal Profile; Backing Per Approved Assembly Drawing	Material:	FKM; Compound Grade Per Specified Fluid And Temperature Service
Available Size:	Nominal 2 Inches; Actual Ring Dimensions Per Matched Figure 607 Drawing	Color:	Black,Green,and Custom
Pressure:	6,000 Psi Service Requirement Subject To Complete Rated Union Assembly	Shape:	Round
Type:	Service Suitability Per Qualified Compound And Equipment Specification	Hardness:	Per Selected FKM Compound And Approved Part Drawing
Using:	Establish Flow Lines, Prevent Leakage	Packing:	Carton Packing
Sample:	Freely	Custom Service:	OEM ODM
Highlight:	2" 6000PSI Union Seal , FKM 6000PSI Union Seal , 6000PSI Hammer Union Seal

2 Inch FKM Replacement Seal Rings for Figure 607 Guiberson Hammer Unions

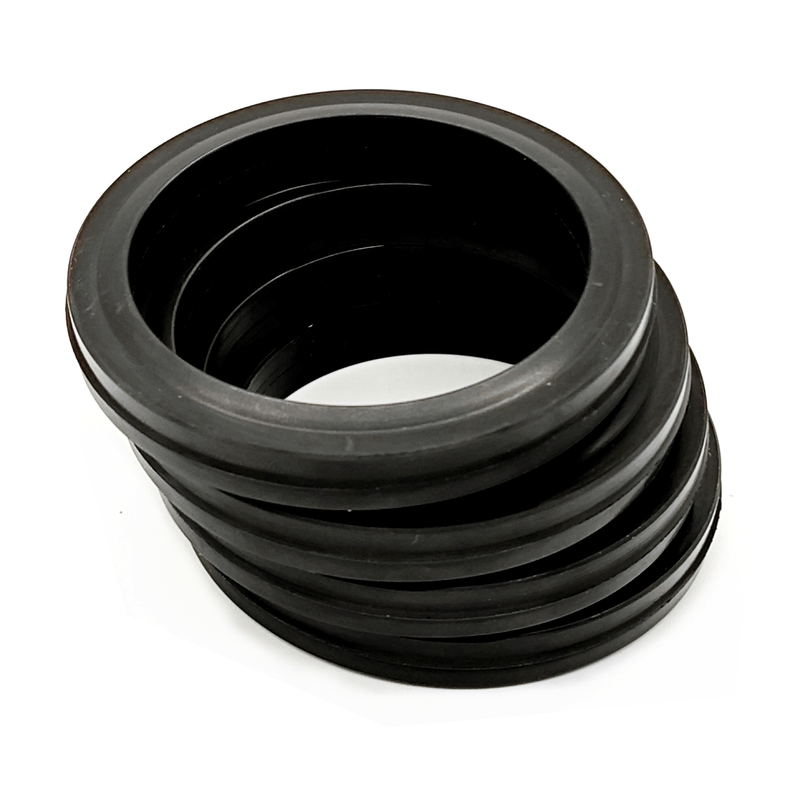

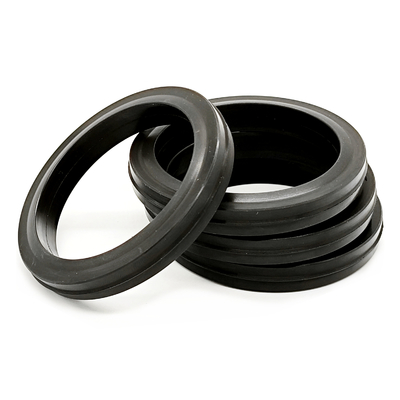

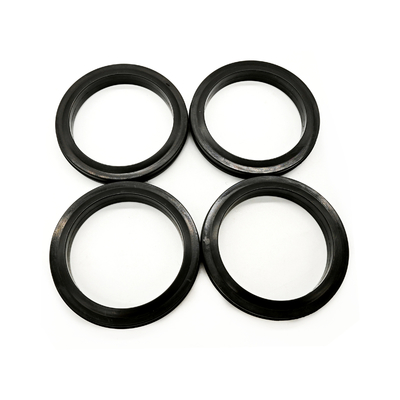

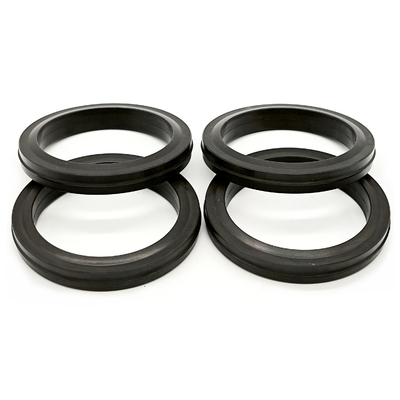

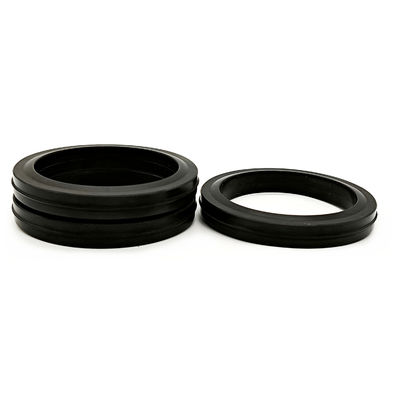

Product Photo

2" FKM Seal Rings Fig 607 Guiberson 6000PSI Union Seal For Hammer Union

Product Specification

The nominal 2-inch FKM seal ring is specified as a replacement component for an identified Figure 607 Guiberson hammer union. For spare-parts procurement, provide the equipment part number, union manufacturer and a drawing or sample of the existing ring. Record the inside diameter, outside diameter, overall height and lip section so the replacement can be matched to the actual sealing recess.

Specify the FKM compound grade and Shore A hardness separately from colour, along with the fluid composition and normal and peak temperatures. Confirm the required backing arrangement against the assembly drawing. For a 6,000 psi operating requirement, verify the complete union rating and applicable service and test conditions; the rubber ring has no independent assembly rating. Sour-gas and H2S use requires specific compound qualification.

	Product Information
	Material	FKM; grade per specified fluid and temperature service
	Size	Nominal 2 inches; confirm actual ring and seal recess dimensions
	Color	Black or Custom Color
	Hardness	Per approved FKM compound and part drawing
	Feature	Matched Figure 607 replacement profile and specified backing

	Type
	rubber union seals
	union seal with brass rings
	union seal with stainless rings

Package Detail

Relate Product

2" FKM Seal Rings Fig 607 Guiberson 6000PSI Union Seal For Hammer Union

Company Introduction

Shanghai Qinuo Industry Co.,Ltd . is a comprehensive enterprise that integrates design and development, production and manufacturing, and sales services.

Main Technology:

1,Compression molding Rubber parts (NR/SILICONE/FKM/HNBR/ NBR....)

2,3D Print and CNC Machining For checking the design before fabricate the mold

Main Products: rubber and plastic products Products line:

1,Standard Rubber Parts:Silicone molds,Rubber door stopper,kinds of dialy and house use rubber products.

2,Custom Rubber Parts:Custom made kinds of rubber parts according to customers' drawings.
3,Oil amd Gas Field Fittings:Plastic Thread Protectors,Rubber o rings,Rubber swab cups ,Hammer Union seals.

4,Custom Oil and Gas Field fittings.

OED/ODM Service

1,Custom Logo:Printing logo or custom make logo sticker service
2,Custom design:tell us your idea, we may help make it come ture.
3,Custom products:We can exactly copy according to design drawing or original samples.
4,Custom Packing:Custom make kinds of bags, boxes, blister packing etc.
5,One-stop service:Design/Produce/Shipping

Delivery Service

FAQ

Q1: Can I get some samples?
A: Certainly, samples are available. We offer 1-5 samples or 1 pack of samples for free. Please note that shipping

costs are not included. Alternatively, we can arrange shipping using your courier account.

Q2: What is the shipping time of samples?
A: Usually 3-5 Day.

Q3: Can I custom product and print my logo on the product or packaging?
A: Yes, we offer customization services. For details, please contact us.

Q4: Can you manage the shipment of products?
A: Absolutely, we can arrange different shipping methods based on the final packaging of the goods, including

express, air, or sea shipping.

Q5: Can you send the goods to an Amazon warehouse?
A: Certainly, just provide us with the exact address, and we will arrange the shipment accordingly.

Q6: What payment methods do you accept?
A: We accept PayPal, Western Union, TT (bank transfer), credit card, and other payment arrangements confirmed in the quotation.

Q7: What is the lead time?
A: For stock goods, the lead time is generally within 15 days, depending on the quantity. For custom orders, production takes approximately 12-15 days, depending on the packaging and quantity.
