2"3"4" High Temperature Resistance Nitrile Hammer Union Lip Seal Gasket

2-, 3- and 4-Inch Nitrile Hammer Union Lip Seals — Temperature and Fit Selection

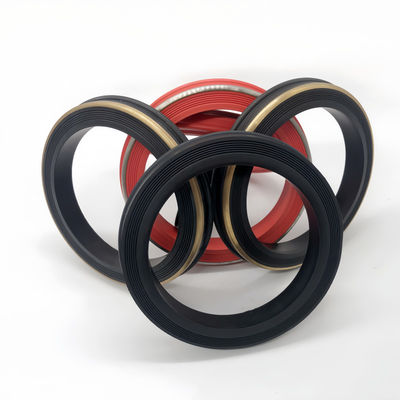

These nitrile (NBR/Buna-N) hammer union lip seals are selected for 2-, 3- or 4-inch nominal connections using the exact union figure and seal-pocket dimensions. The lip must match the mating seat and installation arrangement. Confirm the union manufacturer, profile drawing and construction before ordering a replacement.

A hammer union may use a lip seal or an O-ring according to its design and size. The nominal 2-, 3- and 4-inch sizes are connection designations, not seal inner diameters. Supply the union identification and measured seal dimensions so the replacement profile and backing arrangement can be checked.
For elevated-temperature oil service, specify the actual NBR compound and provide continuous temperature, short-duration peaks, exposure time, fluid additives and pressure cycles. A generic nitrile designation does not establish a maximum service temperature. FKM or HNBR alternatives require separate compatibility review; sour-gas applications need compound-specific qualification. Brass or stainless steel backing must match the approved union design.

Here are some of the benefits of using hammer union seals:

Quick and easy installation: Hammer union seals are easy to install and remove. This makes them a convenient option for applications where it is important to be able to quickly connect and disconnect pipes.
Matched sealing contact: Check lip condition, seal-pocket finish and correct seating before assembly. Sealing performance depends on the complete connection and service conditions.
Durable:Select compound requirements for heat exposure, compression set and fluid compatibility. Establish inspection and replacement intervals for the actual duty.
Cost-effective: Hammer union seals are a cost-effective option for sealing hammer union-style pipe connections.
For a quotation, send the selected nominal size, union figure, drawing or unused sample, backing material and normal/peak operating conditions.

What we Shanghai Qinuo Industry Provide:

Rubber O rings

• Rubber O rings -As568 series rubber o rings/JB standard rubber o rings.
• Encapsulated rubber o rings- silicone/ FKM rubber o rings
• PTFE coating rubber o rings-kinds of color rubber o rings

Hammer Union seals- 1" 1.5" 2" 3" 4" 6" 7"

• Rubber hammer union seals-Buna/FKM/HNBR rubber type
• Rubber w/brass or stainless steel back up types

Swab cups

• V types 4" 5.5" ect.
• TA type
• MV type
• NUF type
• TUF type

Rubber seal kits- custom packing or lable is available

• #10 setting tool - With burst disk
• #20 setting tool - With burst disk
• AP Compact Setting Tool Kit
• Grease Tubes Seal Kit
• 3 1/2” Shorty Kits
• 3 - 1/8" Weight Bar Kit
• #10 Baker Firing Head Kit
• #20 Firing Head Kit
• #20 BP3.SEC kits
• #10 BP3.SEC kits
• T-BRT redress kit
• T-1 Set
• GC Stripper Head Redress Kits
