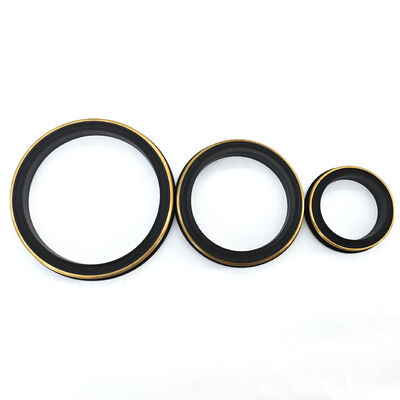

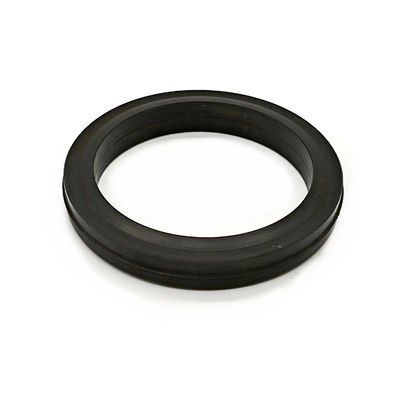

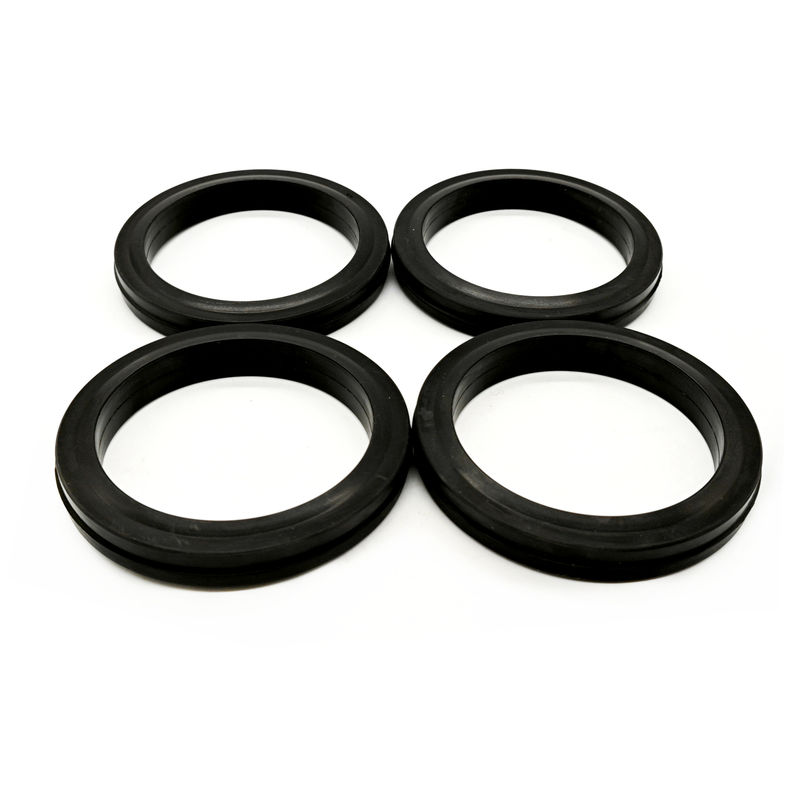

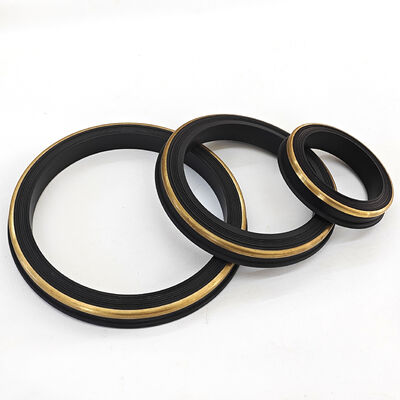

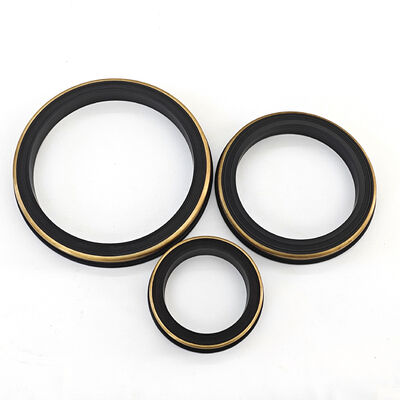

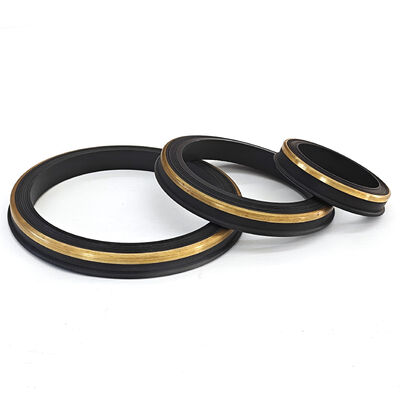

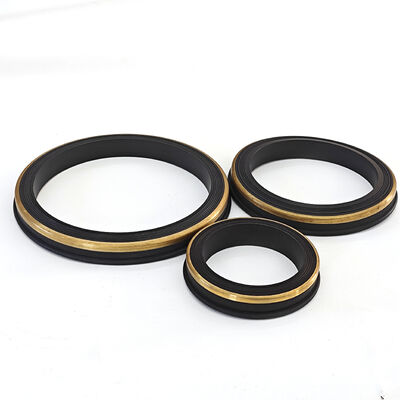

Bulk Figure 602/1002/1502 Hammer Union Seals Manufacturer for Oilfield Applications
Introduction to High-Performance Hammer Union Seals
Hammer Union Seals (also known as Lip Seals) are critical components used in the oil and gas industry to ensure leak-free connections between hammer union joints. Designed to withstand extreme pressures and harsh chemical environments, these seals are essential for high-pressure flow lines, fracturing, acidizing, and cementing.
As a leading ISO9001 certified rubber seal manufacturer, SHQN (Royal Way) provides premium-grade hammer union seals that are fully interchangeable with standard industry figure numbers. Our seals are engineered to provide a tight, dependable seal even in the most demanding oilfield conditions.
Technical Specifications & Working Pressure
Our hammer union seals are available in various sizes (1” to 4”) and configurations to match specific service requirements.
| Figure 602 |
6,000 PSI |
Low-to-medium pressure mud service |
Lip Seal Design |
| Figure 1002 |
10,000 PSI |
High-pressure systems, cementing |
Lip Seal Design |
| Figure 1502 |
15,000 PSI |
Extreme pressure, fracturing, acidizing |
Lip Seal with Metal Backup |
| Figure 2002/2202 |
20,000 PSI |
Ultra-high pressure environments |
Lip Seal with Stainless Ring |
Material Comparison: Choosing the Right Elastomer
The performance of a hammer union seal depends heavily on the material. At Qinuo (SHQN), we offer three primary elastomers to suit different oilfield mediums:
1. Nitrile (NBR/Buna-N)
-
Temperature Range: -30°C to +100°C (-22°F to +212°F)
-
Best For: General oil and water service, drilling mud, and hydraulic fluids.
-
Advantage: Cost-effective, excellent abrasion resistance.
2. FKM / Fluorocarbon
-
Temperature Range: -20°C to +200°C (-4°F to +392°F)
-
Best For: High-temperature applications and aggressive chemicals.
-
Advantage: Superior resistance to heat, chemicals, and ozone.
3. HNBR (Hydrogenated Nitrile)
-
Temperature Range: -40°C to +150°C (-40°F to +302°F)
-
Best For: Sour Gas (H2S) service and high-pressure CO2 environments.
-
Advantage: Exceptional mechanical strength and wear resistance.
Key Features of SHQN Hammer Union Seals
Oilfield Applications
Our seals are widely used in the following energy sectors:
-
Well Completion & Stimulation: Hydraulic fracturing and acidizing.
-
Drilling Operations: Mud pump manifolds and flow lines.
-
Midstream Transport: Temporary pipework and manifold trailers.
-
Offshore & Onshore Rigs: Cementing units and high-pressure gas lines.
Why Choose Qinuo (SHQN) as Your Supply Partner?
Established in 2013 in the Shanghai Free Trade Zone, Shanghai Qinuo Industry Co., Ltd is a high-tech enterprise dedicated to the "Quality for Survival" philosophy.
-
Manufacturing Expertise: Two wholly-owned factories in Nantong with advanced R&D capabilities.
-
Global Reach: Trusted by customers in over 100 countries, including the USA, Canada, Germany, and the UK.
-
Custom Solutions: We provide professional design and production for custom rubber, plastic, and machined parts based on your drawings.
-
Logistics Advantage: Strategically located near Shanghai Port for efficient international shipping.
Frequently Asked Questions (FAQ)
Q1: Are your seals compatible with Weco® style hammer unions?
A: Yes, our SHQN seals are designed to be fully interchangeable with industry-standard figure numbers (602, 1002, 1502) used in common hammer union connections.
Q2: What is the lead time for bulk orders?
A: With our 20-ton monthly capacity, standard sizes are often in stock. Bulk production typically takes 7–15 days depending on the quantity.
Q3: Do you provide seals for Sour Gas (H2S) service?
A: Yes, we recommend our HNBR or Special Grade FKM seals with Stainless Steel backup rings for H2S and sour gas applications.
Company and factory
Established in 2013 within the Shanghai Free Trade Zone, Qinuo is a high-tech enterprise specializing in rubber seal manufacturing for the Oil & Gas sector. We integrate R&D, production, and sales under our core philosophy: "Quality for Survival, Innovation for Development." This commitment has earned us recognition across global markets, where we currently promote our Royal Way and SHQN brands in the energy industry.
Qinuo provides professional design and production services for rubber parts, plastic components, and machined parts. Our solutions serve diverse sectors including oil & gas, automotive, home appliances, and industrial equipment. Guided by our principles of "High Quality, High Professionalism, High Efficiency," our dedicated team ensures excellence at every stage.
We operate two wholly-owned factories in Nantong City—strategically located just one hour from Shanghai Pudong Airport and Shanghai Port. Equipped with over 30 rubber vulcanization presses and supporting machinery, we produce more than 20 types of rubber seals and related products. Our monthly production capacity exceeds 20 tons (approximately 40,000 lbs), and we continue to expand rapidly.
Operating under a comprehensive ISO9001-based quality management system, we export to over 100 countries including the USA, Canada, UK, Germany, Finland, and Australia. We're confident in our ability to meet your requirements and look forward to a productive partnership.
