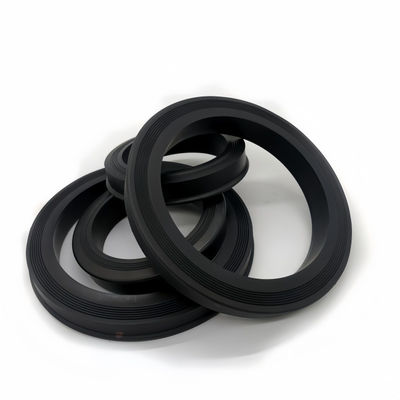

HNBR 250 Celsius Resistance Misaligning Union Seals Weco Wing Unions Seals For Sour Gas Service

HNBR 250 Celsius Resistance Misaligning Union Seals Weco Wing Unions Seals For Sour Gas Service

Product Details:
Place of Origin: Shanghai, China
Brand Name: SHQN
Model Number: Weco Hammerless Union Seals
Payment & Shipping Terms:
Minimum Order Quantity: 500PCS
Price: 0.1-2usd/pcs
Packaging Details: 40*40*40cm carton packing
Delivery Time: 5-20days
Payment Terms: T/T, Western Union, L/C, Paypal
Supply Ability: 50,000pcs per week
Contact Now
Detailed Product Description
Material:: Buna, FKM, HNBR, PTFE Size: 1" 1.5" 2" 3" 4" 6" 7"
MOQ: 500PCS Types: All-rubber, Brass Or Stainless Steel Backing Per Union Drawing
Hardness: 80–90 Shore A Options; Confirm Specified Compound Feature: Compound And Backing Matched To The Specified Union
Color: Black Or Custom Color Brand: Royal Way
Temperature Range: Confirm For The Selected Compound And Union Assembly Pressure: Confirm Complete Union Assembly Rating
Using: Replacement Sealing In Specified Flow-line Union Connections
Highlight:

HNBR Misaligning Union Seals

,

250 Celsius Misaligning Union Seals

HNBR Replacement Union Seals for Specified Wing and Misaligning Union Assemblies HNBR 250 Celsius Resistance Misaligning Union Seals Weco Wing Unions Seals For Sour Gas Service

Hammer Union seals:

Hammer union seals are used in the connections between flexible hoses or pipes used in the oil drilling industry. The seal provides a critical fluid tight connection within the union hardware.
Hammer unions consist of a thread end, a nut end, and a hammer nut that when tightened seal the assembly with the assistance of an elastomeric seal. The seal is lipped to prevent it from falling out when inverted.
Some profiles such as Fig 2202, Fig 1004, Fig 1502, Fig 2002, Fig 602, Fig 1002 etc require a Hammer Union Lip Seal or an 'O'Ring depending on the Size of the Hammer Union.
We produce 1" ,1.5",2",3",4" ,6" and 7"Hammer Union Seals in NBR, FKM or HNBR compounds selected for the specified fluid and service requirements. In addition to the standard molded rubber seals, we offer these with either a brass or stainless steel anti-extrusion ring.

HNBR selection for a specified misaligning union assembly

Identify the exact union model and provide its seal drawing when requesting an HNBR replacement. A misaligning union can require a profile different from a conventional wing union; confirm the actual component rather than relying on the connection size alone. Specify the HNBR compound designation and hardness, with fluid composition, operating temperature, pressure and gas decompression conditions for review. Confirm allowable temperature and sour-gas suitability from compound-specific qualification. Include any required backing ring dimensions and inspection specification on the order.

Size: 1" 1.5" 2" 3" 4" 6" 7"
Material: Buna/FKM/HNBR/PTFE
Types:  rubber/ rubber+brass back-up/rubber+ss back-up

HNBR 250 Celsius Resistance Misaligning Union Seals Weco Wing Unions Seals For Sour Gas Service

What we Shanghai Qinuo Industry Provide:

Rubber O rings

  • Rubber O rings -As568 series rubber o rings/JB standard rubber o rings.
  • Encapsulated rubber o rings- silicone/ FKM rubber o rings
  • PTFE coating rubber o rings-kinds of color rubber o ringsHNBR 250 Celsius Resistance Misaligning Union Seals Weco Wing Unions Seals For Sour Gas Service

Hammer Union seals- 1" 1.5" 2 3" 4" 6" 7"

  • Rubber hammer union seals-Buna/FKM/HNBR rubber type
  • Rubber w/brass or stainless steel back up types

Swab cups

  • V types 4" 5.5" ect.
  • TA type
  • MV type
  • NUF type
  • TUF type

​HNBR 250 Celsius Resistance Misaligning Union Seals Weco Wing Unions Seals For Sour Gas Service

Rubber seal kits- custom packing or lable is available

  • #10 setting tool - With burst disk
  • #20 setting tool - With burst disk
  • AP Compact Setting Tool Kit
  • Grease Tubes Seal Kit
  • 3 1/2” Shorty Kits
  • 3 - 1/8" Weight Bar Kit
  • #10 Baker Firing Head Kit
  • #20 Firing Head Kit
  • #20 BP3.SEC kits
  • #10 BP3.SEC kits
  • T-BRT redress kit
  • T-1 Set
  • GC Stripper Head Redress Kits

Wireline Component Parts:

1) Pressure Relief Disc, ZD Plated (application:rupture(bleeder) Disc)

2) Rubber Push Pin -black

3) Nylon Push Pin -natural

4) Retainer Nut, Steel, ZD Plated (Flat, beveled also available) (application: retainer nut)

5) Threaded Steel Plug, w/ Lathe Cut (application:5" port plug)

6) Threaded Brass Plug (application: setting tool plug )

HNBR 250 Celsius Resistance Misaligning Union Seals Weco Wing Unions Seals For Sour Gas Service

More pictures of our products for reference:

HNBR 250 Celsius Resistance Misaligning Union Seals Weco Wing Unions Seals For Sour Gas Service

HNBR 250 Celsius Resistance Misaligning Union Seals Weco Wing Unions Seals For Sour Gas Service

Corner View of our factory:

HNBR 250 Celsius Resistance Misaligning Union Seals Weco Wing Unions Seals For Sour Gas Service

HNBR 250 Celsius Resistance Misaligning Union Seals Weco Wing Unions Seals For Sour Gas Service

Our Service capability:

Customized services Plastic & Rubber bonding Mold Design
Customized extrusion Extrusion and bonded gaskets Mold Production
Injection Molding Self Adhesive rubber profile Customized Package
Sheet Cutting Rubber Complex Intake Hose Problem Solving
Standard Size extrusion Reinforced rubber tubes Assembly
Special Compound design Rubber Solution Suggestion Sourcing
Rubber& Metal bonding

FAQ:

Q1: What is Hammer Union Seal?

A1: Hammer union seal, produced by SHQN, is a kind of sealing device used for pipeline connection, whose model number is Hammer union seals. It is made in China..

Q2: What is the packaging of Hammer Union Seal?

A2: The packaging of Hammer Union Seal can be customized or standard packing.

Q3: What is the delivery time of Hammer Union Seal?

A3: The delivery time of Hammer Union Seal is about 15 days.

Q4: What is the material of Hammer Union Seal?

A4: Hammer Union Seal is made of high quality rubber compounds.

Q5: Are you manufacture or trading company?

We are manufacture. Our factory located in Haimen District, Nantong City, Jiangsu Province.
