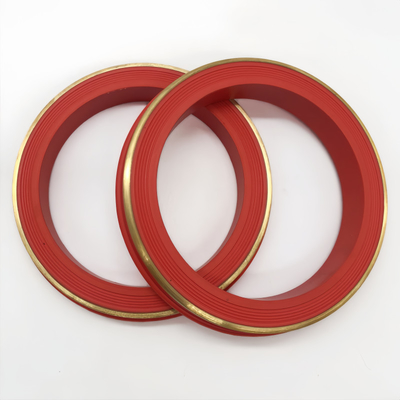

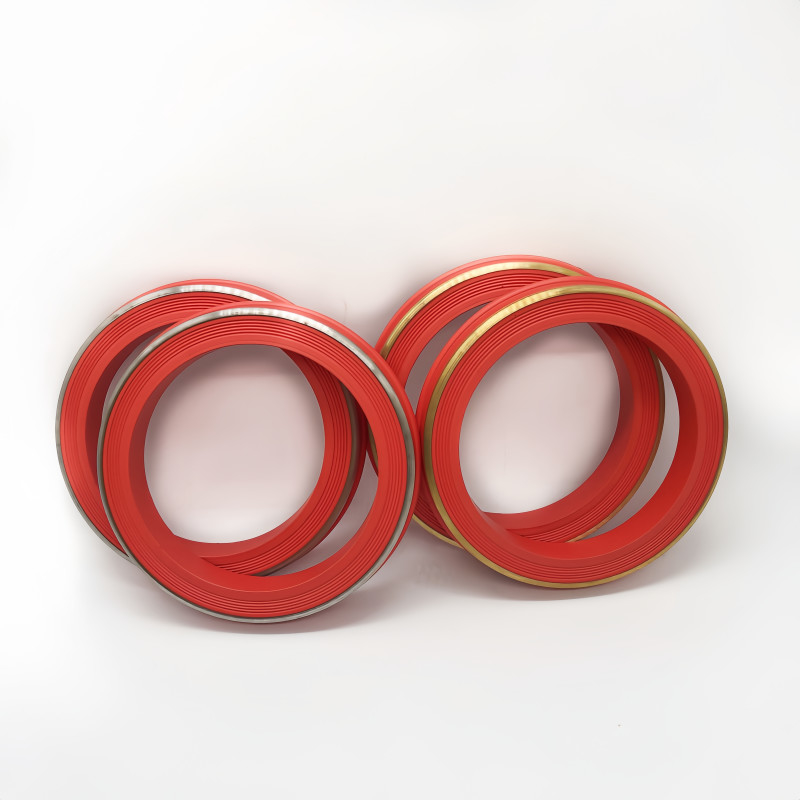

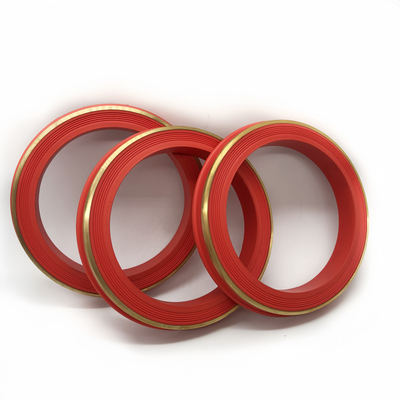

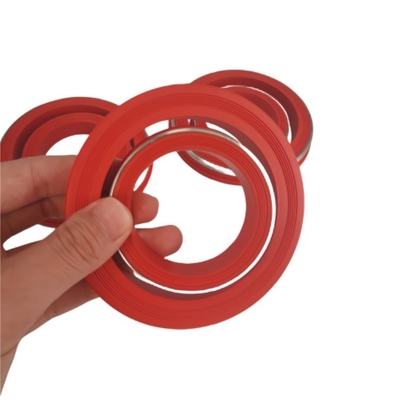

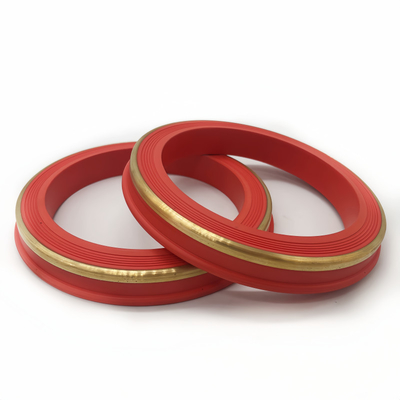

Red Hammer Union Seal and Custom Identification Options
Shanghai Qinuo supplies hammer union seal enquiries with red or agreed custom-color options. Specify NBR, HNBR or FKM compound independently from color, together with union figure, nominal size and seal profile. A red appearance helps meet an agreed identification scheme but does not establish material, pressure or sour-service suitability.
Product Specification
1. Pressure specification: Provide working pressure, transient peaks, temperature and pressure direction. The complete union assembly and selected seal design require qualification; a figure designation is not a standalone seal pressure rating.
2. Compound selection: Provide fluid composition, additives, cleaning chemicals and exposure duration. Review NBR, HNBR or FKM compound data against those conditions; polymer family alone does not establish chemical or sour-service suitability.
3. Installation fit: Confirm seal dimensions, lip orientation, mating surfaces and any brass or stainless steel backup ring against the equipment drawing. Follow the assembly installation procedure.
4. OEM dimensions: Send seal OD, ID, axial height, section profile and dimensional tolerances, together with nominal union size and figure. Include insert geometry and hardness where applicable.
5. Inspection requirements: Agree dimensional, material and leakage-test acceptance criteria for the selected design. Verify the complete assembly before service; no blanket pressure or leakage guarantee is implied.
Red Seal Color, Compound and Packaging Identification
Include the requested red color reference or approved sample with the compound specification and seal drawing. Agree color acceptance separately from hardness, dimensions and material requirements. Do not identify NBR, HNBR or FKM solely from the photographed color.
For replacement orders, specify the union figure, nominal size, rubber OD and ID, axial height and any brass or stainless steel backup ring. Review fluid composition, operating temperature and pressure cycle for the selected compound. The figure/size list below is an enquiry reference requiring equipment drawing confirmation.
For multiple colors or compounds in one order, state quantities separately and agree bag labels showing part number, size, compound and lot identification. Confirm any molded marking location against the sealing geometry. Manufacturing uses an ISO 9001 quality management system; color selection does not establish a performance rating.
| 1" 1502, Buna / FKM/ HSN |
| 1-1/2" 1502, Buna / FKM/ HSN |
| 2" 602/1502, Buna / FKM/ HSN(Brass/Stainless Anti-Ext) |
| 3" 602/1502, Buna / FKM/ HSN(Brass/Stainless Anti-Ext) |
| 4" 602/1002/1502, Buna / FKM/ HSN(Brass/Stainless Anti-Ext) |
| 2" FIG 206, Buna / FKM/ HSN(AS568-228) |
| 3" FIG 206, Buna / FKM/ HSN(AS568-236) |
| 4" FIG 206, Buna / FKM/ HSN(AS568-346) |
