Versatile Hammer Union Seals for Various Pipe Sizes and Materials

Versatile Hammer Union Seals for Various Pipe Sizes and Materials

Product Details:
Place of Origin: Shanghai,China
Brand Name: SHQN
Certification: ISO9001
Model Number: Standard Size
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: 0.3~0.5$
Packaging Details: Carton Packing
Delivery Time: 7-15 days
Payment Terms: L/C, T/T, Western Union,
Supply Ability: 2000pcs per week
Contact Now
Detailed Product Description
Application: Oil And Gas Industry Material: NBR, HNBR Or FKM; Specify Compound Per Order Line
Available Size: 1, 1.5, 2, 3, 4 Inch Nominal; Figure/profile To Drawing Hardness: Specify Hardness And Tolerance For Selected Compound
Pressure Rating: To Complete Union Assembly Specification And Qualification Nearest Port: Shanghai
Color: Black Or Custom Packing: Carton Packing
Style: Hammer Union Replacement Seals; Individual Profiles To Drawing Keyward: Figure 602 1002 1502 Hammer Union Seals, Hammer Union
Highlight:

Pipe Sizes Hammer Union Seals

,

Versatile Hammer Union Seals

,

Materials Hammer Union Seals


Hammer Union Seals for Multiple Sizes and Material Requirements

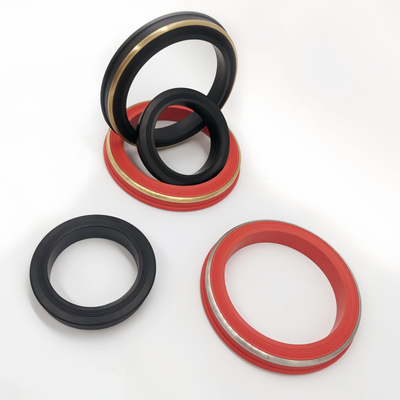

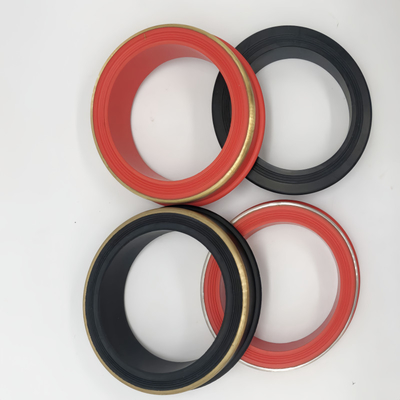

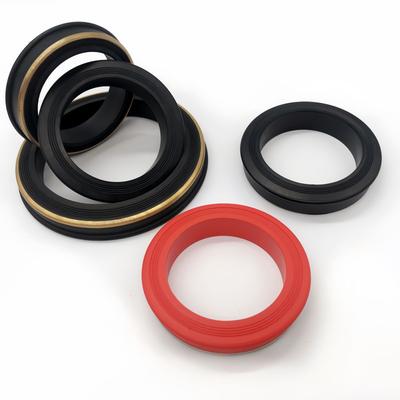

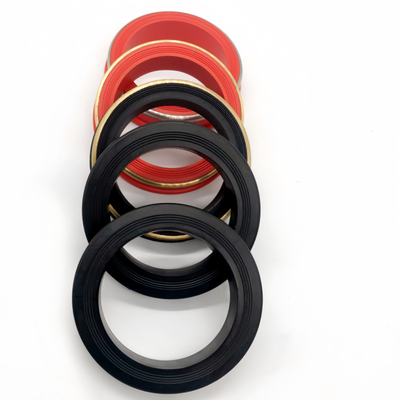

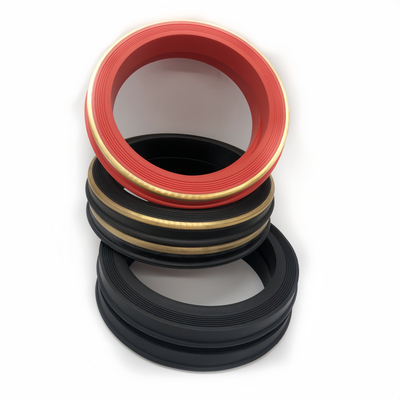

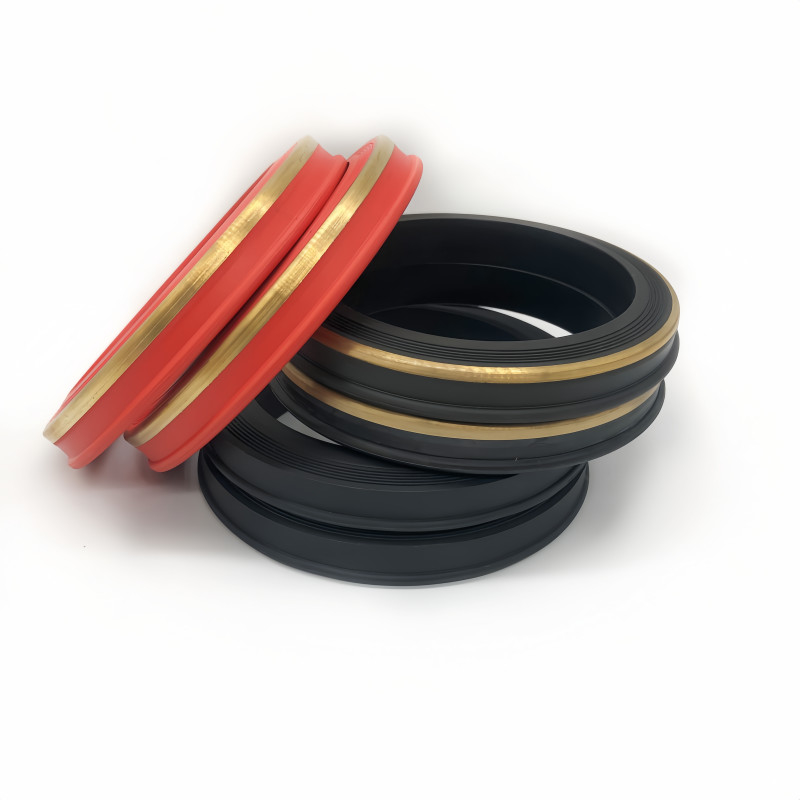

Shanghai Qinuo supplies hammer union replacement-seal enquiries across the listed 1, 1.5, 2, 3 and 4 inch nominal connection sizes. Identify each size, union figure and required NBR, HNBR or FKM compound separately. A mixed-size order requires individual seal drawings and quantities rather than one universal profile.



Versatile Hammer Union Seals for Various Pipe Sizes and Materials


Product Specification



1. Pressure specification: Provide working pressure, transient peaks, temperature and pressure direction. The complete union assembly and selected seal design require qualification; a figure designation is not a standalone seal pressure rating.



2. Compound selection: Provide fluid composition, additives, cleaning chemicals and exposure duration. Review NBR, HNBR or FKM compound data against those conditions; polymer family alone does not establish chemical or sour-service suitability.



3. Installation fit: Confirm seal dimensions, lip orientation, mating surfaces and any brass or stainless steel backup ring against the equipment drawing. Follow the assembly installation procedure.



4. OEM dimensions: Send seal OD, ID, axial height, section profile and dimensional tolerances, together with nominal union size and figure. Include insert geometry and hardness where applicable.



5. Inspection requirements: Agree dimensional, material and leakage-test acceptance criteria for the selected design. Verify the complete assembly before service; no blanket pressure or leakage guarantee is implied.





Mixed-Size Hammer Union Seal Procurement List

Prepare one order line for each union nominal size, figure, seal part number and drawing revision. Add the rubber compound, hardness, rubber-only or metal-backed construction and quantity. For brass or stainless steel backed options, specify the insert drawing and material.

The original list below includes FIG 1502 references for 1 and 1.5 inch connections, FIG 602/1502 references for 2 and 3 inch connections, and FIG 602/1002/1502 references for 4 inch connections. Treat these as separate drawing-based enquiries; a grouped row does not establish interchangeable seal profiles. FIG 206 O-ring references require their own dimensional check.

For orders containing multiple compounds or sizes, agree separate bag labels, part identification and inspection requirements. Include service fluid, temperature and pressure cycles for each application. Manufacturing uses an ISO 9001 quality management system; confirm availability and lead time by individual order line.

1" 1502, Buna / FKM/ HSN
1-1/2" 1502, Buna / FKM/ HSN
2" 602/1502, Buna / FKM/ HSN(Brass/Stainless Anti-Ext)
3" 602/1502, Buna / FKM/ HSN(Brass/Stainless Anti-Ext)
4" 602/1002/1502, Buna / FKM/ HSN(Brass/Stainless Anti-Ext)
2" FIG 206, Buna / FKM/ HSN(AS568-228)
3" FIG 206, Buna / FKM/ HSN(AS568-236)
4" FIG 206, Buna / FKM/ HSN(AS568-346)
