Heat Resistant High Quality Rubber Sealing Gasket Hammer Union Seals For Oil And Gas Industry

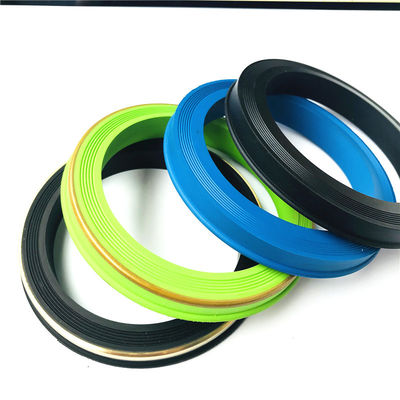

Hammer Union Replacement Gaskets With Brass or Stainless Steel Support Ring by Approved Drawing

A hammer union seal is a type of seal that is used in hammer union-style pipe connections. Hammer unions are a type of quick-connect coupling that is used to connect two pieces of pipe together. They are often used in the oil and gas industry, as well as in other industries where it is important to be able to quickly connect and disconnect pipes.

Hammer union seals are made of a variety of materials, including elastomers, metal, and composite materials. They are designed to seal the mating union connection when the profile, compound and assembly conditions are correct. Hammer union seals are available in a variety of sizes and styles to accommodate different pipe sizes and applications.

Hammer union seals are a critical component of hammer union-style pipe connections. Correct seal selection, mating surface condition and assembly are essential to reliable connection sealing.

Some profiles such as Fig 2202, Fig 1004, Fig 1502, Fig 2002, Fig 602, Fig 1002 etc require a Hammer Union Lip Seal or an 'O'Ring depending on the Size of the Hammer Union.
We produce 1" ,1.5",2",3",4" ,6" and 7"Hammer Union Seals in Nitrile for suitable standard fluid duties, with FKM or HNBR alternatives selected by compound and service conditions. Sour-gas duty requires compound-specific qualification. In addition to the standard molded rubber seals, we offer these with either a brass or stainless steel anti-extrusion ring.

Here are some of the benefits of using hammer union seals:

Quick and easy installation: Hammer union seals are easy to install and remove. This makes them a convenient option for applications where it is important to be able to quickly connect and disconnect pipes.
Leak-proof seal: Hammer union seals help contain fluid within a correctly selected and assembled mating connection. This is essential for the safe and reliable operation of these connections.
Durable: Hammer union seals are made of durable materials that can withstand the harsh conditions of the oil and gas industry.
Cost-effective: Hammer union seals are a cost-effective option for sealing hammer union-style pipe connections.
If you are looking for a reliable and cost-effective way to seal hammer union-style pipe connections, then hammer union seals are a good option.

What we Shanghai Qinuo Industry Provide:

Rubber O rings

• Rubber O rings -As568 series rubber o rings/JB standard rubber o rings.
• Encapsulated rubber o rings- silicone/ FKM rubber o rings
• PTFE coating rubber o rings-kinds of color rubber o rings

Hammer Union seals- 1" 1.5" 2 3" 4" 6" 7"

• Rubber hammer union seals-Buna/FKM/HNBR rubber type
• Rubber w/brass or stainless steel back up types

Swab cups

• V types 4" 5.5" ect.
• TA type
• MV type
• NUF type
• TUF type

Rubber seal kits- custom packing or lable is available

• #10 setting tool - With burst disk
• #20 setting tool - With burst disk
• AP Compact Setting Tool Kit
• Grease Tubes Seal Kit
• 3 1/2” Shorty Kits
• 3 - 1/8" Weight Bar Kit
• #10 Baker Firing Head Kit
• #20 Firing Head Kit
• #20 BP3.SEC kits
• #10 BP3.SEC kits
• T-BRT redress kit
• T-1 Set
• GC Stripper Head Redress Kits

Wireline Component Parts:

1) Pressure Relief Disc, ZD Plated (application:rupture(bleeder) Disc)

2) Rubber Push Pin -black

3) Nylon Push Pin -natural

4) Retainer Nut, Steel, ZD Plated (Flat, beveled also available) (application: retainer nut)

5) Threaded Steel Plug, w/ Lathe Cut (application:5" port plug)

6) Threaded Brass Plug (application: setting tool plug )

Rubber Packer Elements:

Rubber Oil Savers:

Hammer Union Gaskets: Confirm the Seal and Support Ring for Heated Fluid Duty

For replacement gaskets exposed to heated fluids, specify the normal temperature, brief peaks, cold start-up and fluid formulation. NBR, HNBR and FKM compounds need individual compatibility and temperature review. PTFE is a separate thermoplastic construction rather than a rubber grade with the same hardness and sealing behaviour.

Match each nominal union size and Figure to the approved seal drawing. Confirm whether rubber-only, brass-supported or stainless-supported construction is required; support-ring grade, dimensions and fit should follow the specified assembly. The listed sizes and figures do not establish universal interchangeability.

Send quantity, drawing revision, hardness target and inspection tolerances with the enquiry. The legacy 80 to 90 Shore A range is an enquiry target for rubber compounds and must be agreed for the selected grade. Pressure capability follows the complete documented union rating. ISO 9001 quality management does not establish API certification or compound-specific sour-service qualification.
