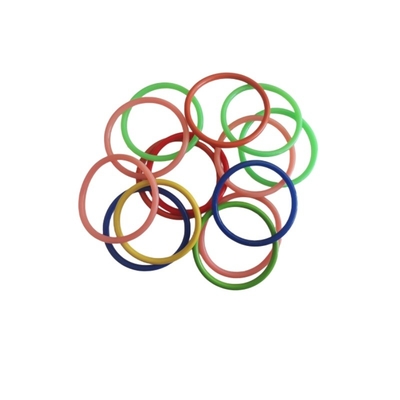

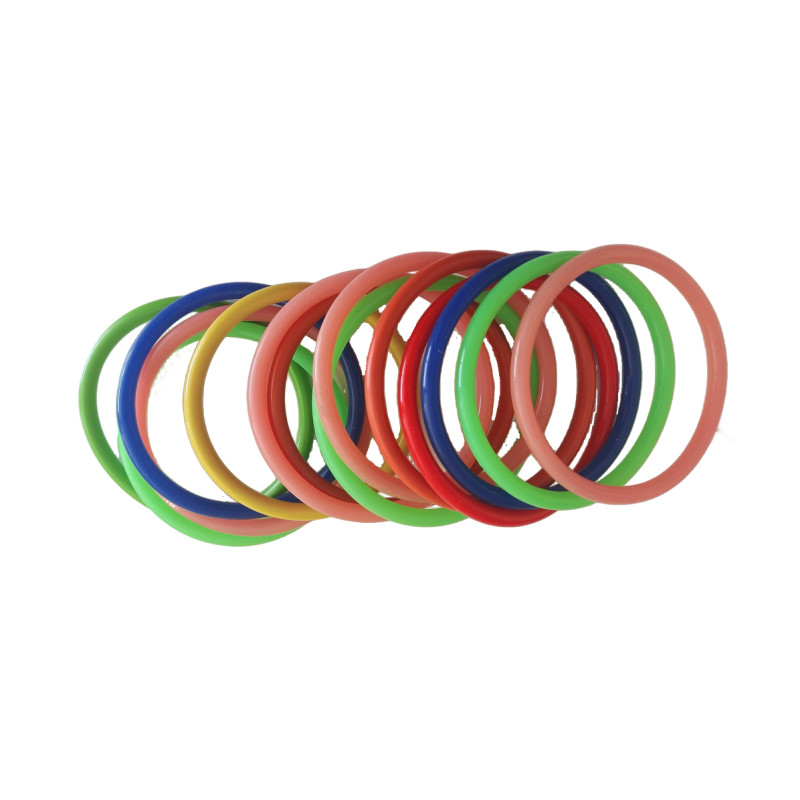

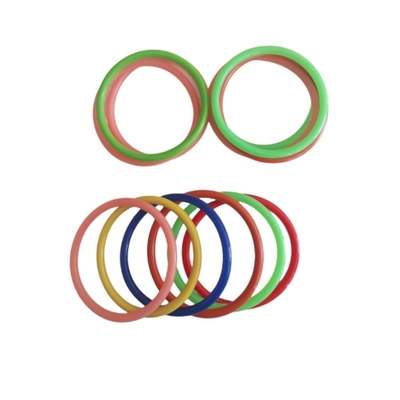

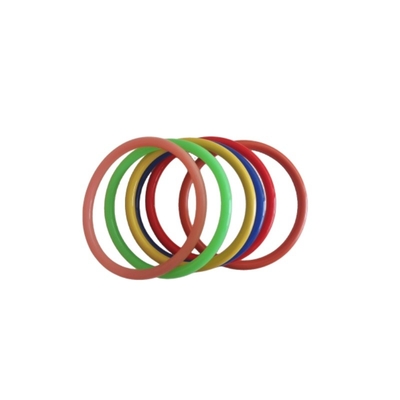

Silicone Rubber O-Ring Enquiries for Specified Medical-Equipment Sealing Positions
Equipment Seal Enquiries: Specify Cleaning Exposure and the Approved Silicone Grade
| Requirement |
Information for review |
| Component location |
Housing, fluid joint or gas path, with the equipment part reference and drawing. |
| Seal geometry |
ID, cross-section, tolerance, gland dimensions and static or moving duty. |
| Cleaning exposure |
Cleaning agent, concentration, temperature, contact time and frequency; define sterilisation conditions if applicable. |
| Approved material |
Exact silicone grade, hardness and documents required by the equipment manufacturer. |
| Acceptance and packing |
Sample approval, dimensional and surface criteria, cleanliness and agreed packaging. |
Food-contact documentation does not establish medical-device or breathing-gas suitability. For oxygen exposure, the equipment manufacturer must assess the selected material and component under the actual oxygen concentration, pressure, temperature and ignition conditions. This page does not establish medical, oxygen-service or biocompatibility approval for an unspecified silicone compound.
Silicone rubber O-ring enquiries for medical-equipment components start with the approved part drawing and compound specification. Define the sealing position and whether the ring contacts process fluid, breathing gas or only an external housing. Specify ID and cross-section or an exact standard size reference; material suitability must follow the equipment requirements.
|
Material
|
Silicone compound to the equipment specification; other polymers require separate material review.
|
|
Hardness
|
Target Shore A hardness and tolerance by approved silicone grade.
|
|
Feature
|
Sealing performance depends on the approved compound, gland geometry and operating conditions.
|
|
Mode of Production
|
Compression, injection, injection transfer, extrusion, molding
|
|
Production Capabilities
|
Tooling and inspection requirements confirmed for each requested size and compound.
|
|
Size/Color
|
The size and color can be custom as customer’s requirements
|
|
Other Service
|
Customized drawing designs are welcome.Customized OEM products
|
Application of the rubber o ring:
Provide the equipment part reference, sealing location, fluid or gas contact, temperature and pressure conditions. Identify any cleaning or sterilisation procedure and required material documentation. An external housing seal and a breathing-gas-path seal require separate reviews; do not substitute a generic silicone grade without equipment approval.
Structure and sizes:
AS568 enquiries by exact dash number and revision; list custom ID and cross-section separately.
Sizes: (ID × C/S) (mm)
Packing and shipping:
Standard export packing, inner plastic bag, outer with carton. Carton in pallets if necessary.
1: Express: DHL,UPS, TNT, FedEx, EMS ect, for urgent and small order.
2: Air shipment: air port to air port or air port to door.
3: Sea shipment: suitable for bulk goods. it will takes more longer time than air shipment.
The steps of the production:
Other relative rubber products for oil drilling use:
Company Profile:
Shanghai Qinuo Industry Co. Ltd supplies rubber, plastic and machined parts to agreed drawings. Our ISO 9001 quality management supports specification review and inspection. For equipment sealing components, agree the approved material, dimensions, cleanliness, packing and acceptance requirements with the order.
FAQ
Q1: Are you manufacture or trading company?
We are manufacture. Our factory located in Haimen District, Nantong City, Jiangsu Province.
Q2: How can we guarantee quality?
Agree dimensional, hardness and surface inspection criteria against the equipment-approved drawing and silicone specification. Include required material documents, cleanliness acceptance and packaging requirements with the order.
Q3: Can I get some samples?
Confirm sample availability, quantity, approved silicone grade, handling requirements and shipping terms for the specified equipment component with the quotation.
Q4: Can you produce OEM products?
Yes, we can produce by your samples or 3D drawings. We can build the molds and fixtures.
Q5: What's the term of payment ?
Amount < US$5000,100% paid in advance by paypal or T/T;
Amount >= US$5000, 30% paid in advance, 70% balance before shipment by T/T
Q6: Can you manage the shipment?
Sure, we can arrange different ship ways according to the goods final packing: by express, by air or by sea.
Q7: What is the lead time?
Stock goods: generally within 7days according to the quantity.
Produce Goods: 12-25days according to the packing and quantity.
