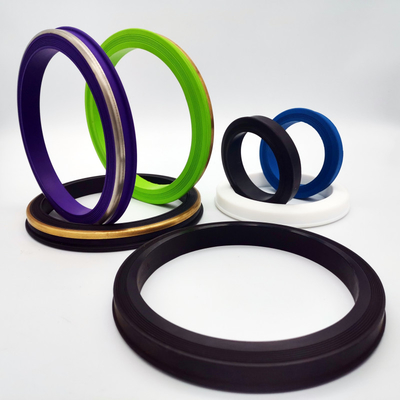

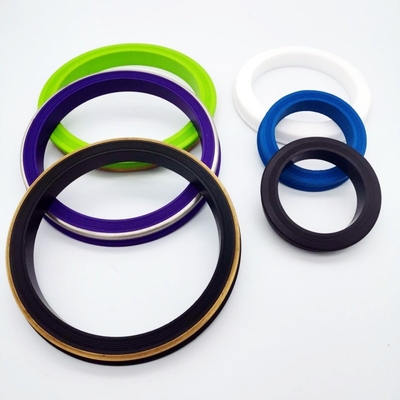

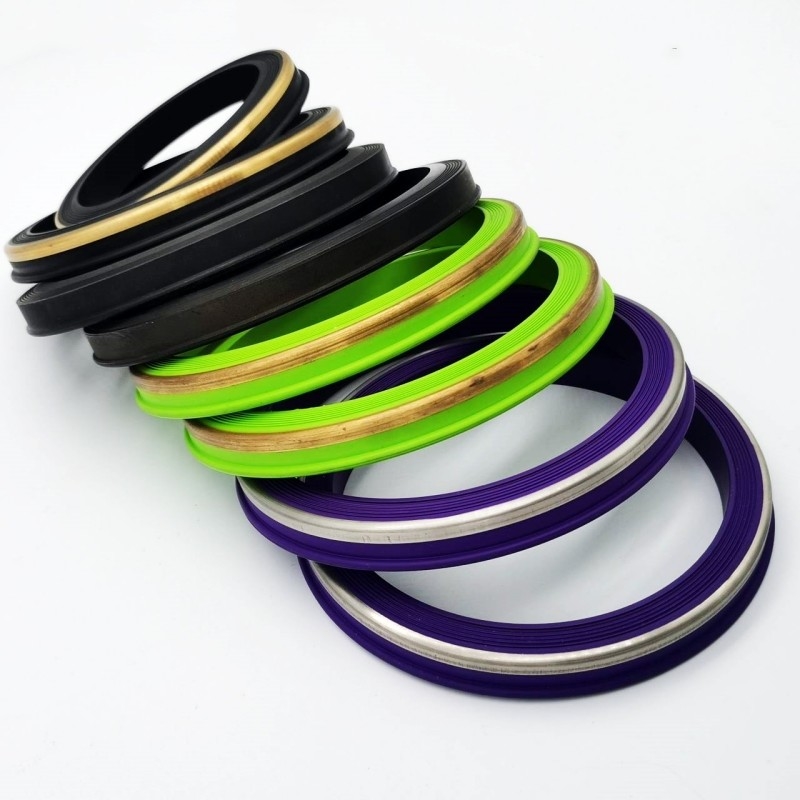

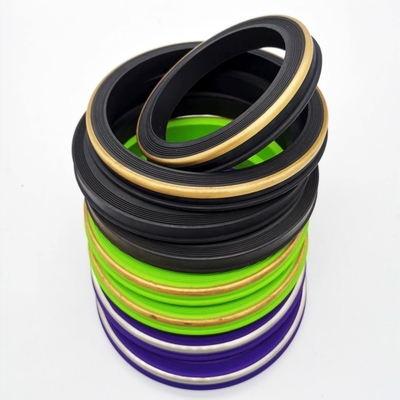

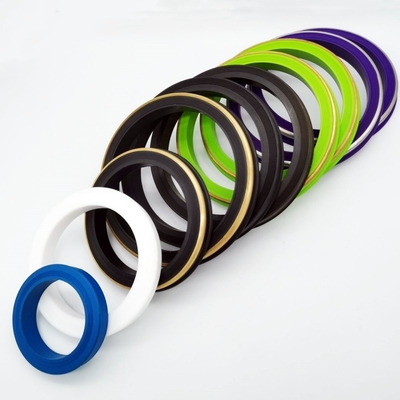

Durable Professional 1/1.5/2/3/4 Inch Nitrile Rubber Seal Hammer Union Seal

Durable Professional 1/1.5/2/3/4 Inch Nitrile Rubber Seal Hammer Union Seal

Product Details:
Place of Origin: Shanghai,China
Brand Name: SHQN
Certification: ISO9001
Model Number: Standard Size
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: 0.3~0.5
Packaging Details: Carton Packing
Delivery Time: 7-15 days
Payment Terms: L/C, T/T, Western Union,
Supply Ability: 2000pcs per week
Contact Now
Detailed Product Description
Available Size: Nominal 1, 1-1/2, 2, 3 Or 4 Inches; Each Part Separately Matched Material: NBR/nitrile (Buna-N); Grade Per Approved Fluid-service Specification
Application: Oilfield Hammer Union Replacement And Multi-size Spare-parts Orders Hardness: Per Selected NBR Compound And Approved Part Specification
Pressure Rating: Per Complete Identified Union Assembly And Specified Service Conditions Nearest Port: Shanghai
Color: Black Or Custom Packing: Carton Packing
Style: Figure-specific Hammer Union Replacement Seal Keyward: NBR Hammer Union Seal, Buna-N Replacement Ring, Multi-size Union Seals
Highlight:

Professional Hammer Union Seal

,

Durable Hammer Union Seal

,

4 Inch Nitrile Rubber Seal


Product Introduction


Nitrile rubber (NBR/Buna-N) hammer union replacement seals are specified for nominal 1-inch, 1-1/2-inch, 2-inch, 3-inch or 4-inch connections as separately matched parts. Identify the union manufacturer and figure number for each size, then confirm the ring inside diameter, outside diameter, height and lip section. A multi-size spare-parts order needs individual part numbers and quantities rather than one universal seal drawing.



Durable Professional 1/1.5/2/3/4 Inch Nitrile Rubber Seal Hammer Union Seal





Durable Professional 1/1.5/2/3/4 Inch Nitrile Rubber Seal Hammer Union SealDurable Professional 1/1.5/2/3/4 Inch Nitrile Rubber Seal Hammer Union Seal


Product Specification


Select the NBR compound grade and Shore A hardness using the actual fluid composition and normal and peak operating temperatures. Confirm rubber-only, brass-backed or stainless-backed construction for the matched assembly. Figure 602, 1002 and 1502 options have separately confirmed profiles and complete assembly ratings. The Figure 206 AS568 entries below are catalogue O-ring references and do not establish lip-seal dimensions for other figures.

1" 1502, Buna / FKM / HSN
1-1/2" 1502, Buna / FKM / HSN
2" 602/1502, Buna / FKM / HSN(Brass/Stainless Anti-Ext)
3" 602/1502, Buna / FKM / HSN(Brass/Stainless Anti-Ext)
4" 602/1002/1502, Buna / FKM / HSN(Brass/Stainless Anti-Ext)
2" FIG 206, Buna / FKM / HSN(AS568-228)
3" FIG 206, Buna / FKM / HSN(AS568-236)
4" FIG 206, Buna / FKM / HSN(AS568-346)

Durable Professional 1/1.5/2/3/4 Inch Nitrile Rubber Seal Hammer Union Seal






Related Repair Products


2" Normal Swivel Kit
2" SMI-Oversized Swivel Joint Kits
3" SPM Swivel Kit
3" FMC Swivel Kit
3" Wide Swivel Kits
4" 15k Forum Swivel Kits
4" 10k FET-Flowvalve Swivel kits
4" 15k TSI Swivel Kit
4" 15k FlowValve Swivel Kit



Durable Professional 1/1.5/2/3/4 Inch Nitrile Rubber Seal Hammer Union Seal




Other Hot Seal Products


Durable Professional 1/1.5/2/3/4 Inch Nitrile Rubber Seal Hammer Union Seal


Package


Durable Professional 1/1.5/2/3/4 Inch Nitrile Rubber Seal Hammer Union Seal


Company Profile


Durable Professional 1/1.5/2/3/4 Inch Nitrile Rubber Seal Hammer Union Seal


Shanghai Qinuo Industry Co.,Ltd . is a comprehensive enterprise that integrates design and development, production and manufacturing, and sales services.


Main Technology:
1,Compression molding Rubber parts (NR/SILICONE/FKM/HNBR/ NBR....)
2,3D Print and CNC Machining For checking the design before fabricate the mold
Durable Professional 1/1.5/2/3/4 Inch Nitrile Rubber Seal Hammer Union Seal
Main Products: rubber and plastic products Products line:
1,Standard Rubber Parts:Silicone molds,Rubber door stopper,kinds of dialy and house use rubber products.
2,Custom Rubber Parts:Custom made kinds of rubber parts according to customers' drawings.
3,Oil amd Gas Field Fittings:Plastic Thread Protectors,Rubber o rings,Rubber swab cups ,Hammer Union seals.
4,Custom Oil and Gas Field fittings.

Durable Professional 1/1.5/2/3/4 Inch Nitrile Rubber Seal Hammer Union Seal


OED/ODM Service


1,Custom Logo:Printing logo or custom make logo sticker service
2,Custom design:tell us your idea, we may help make it come ture.
3,Custom products:We can exactly copy according to design drawing or original samples.
4,Custom Packing:Custom make kinds of bags, boxes, blister packing etc.
5,One-stop service:Design/Produce/Shipping

Delivery


Durable Professional 1/1.5/2/3/4 Inch Nitrile Rubber Seal Hammer Union SealDurable Professional 1/1.5/2/3/4 Inch Nitrile Rubber Seal Hammer Union SealDurable Professional 1/1.5/2/3/4 Inch Nitrile Rubber Seal Hammer Union SealDurable Professional 1/1.5/2/3/4 Inch Nitrile Rubber Seal Hammer Union Seal


FAQ


Q: Can I get some samples?
A: Certainly, samples are available. We offer 1-5 samples or 1 pack of samples for free. Please note that shipping

costs are not included. Alternatively, we can arrange shipping using your courier account.



Q: What is the shipping time of samples?
A: Usually 3-5 Day.



Q: Can I custom product and print my logo on the product or packaging?
A: Yes, we offer customization services. For details, please contact us.



Q: Can you manage the shipment of products?
A: Absolutely, we can arrange different shipping methods based on the final packaging of the goods, including

express, air, or sea shipping.



Q: Can you send the goods to an Amazon warehouse?
A: Certainly, just provide us with the exact address, and we will arrange the shipment accordingly.



Q: What payment methods do you accept?
A: We accept PayPal, Western Union, TT (bank transfer), credit card, and other payment arrangements confirmed in the quotation.



Q: What is the lead time?
A: For stock goods, the lead time is generally within 15 days, depending on the quantity. For custom orders, production takes approximately 12-15 days, depending on the packaging and quantity.
