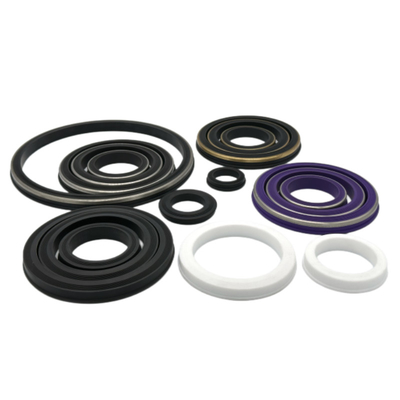

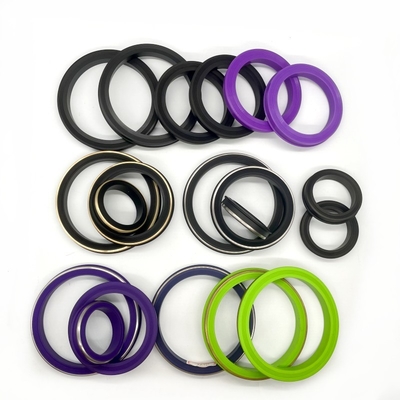

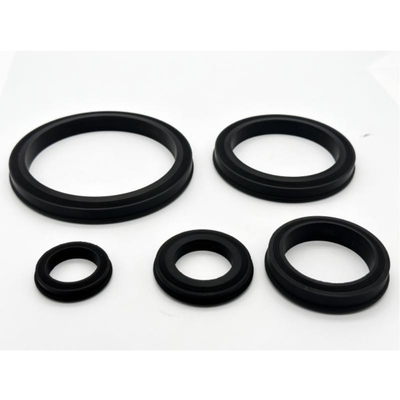

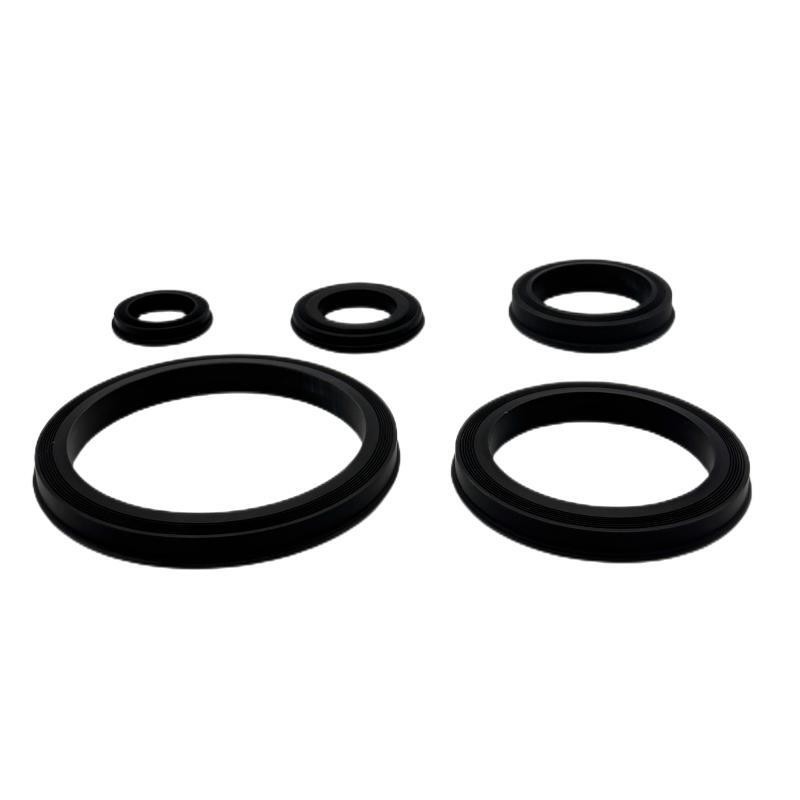

Oil Resistant Different Sizes 1-7 Inch NBR / FKM / HNBR
Weco Seals For Hammer Unions
Product Description:
Hammer union seals in the listed nominal 1-7 inch catalogue range are replacement sealing components for identified oilfield pipe connections. Specify the actual seal dimensions, union manufacturer and figure number for each size. NBR, HNBR and FKM are separate compound choices; PTFE and PU options require a confirmed part design. For oil-service enquiries, provide fluid composition and temperature so that the selected material and backing configuration can be reviewed.
Technical Parameters:
| Technical Parameters |
Details |
| Product Name |
Hammer Union Seal |
| Shape |
Round |
| Size |
Catalogue nominal 1-7 inches; actual dimensions and availability per selected part |
| Pressure |
Per complete rated union assembly and specified service conditions |
| Features |
Figure-specific replacement sealing component |
| Surface Treatment |
Rubber surface and backing finish per approved part specification |
| Color |
Black Or Custom Color |
| Application |
Oil & Gas Industry |
| Material |
NBR, HNBR or FKM; PTFE/PU options by confirmed part design |
| Package |
Carton Box |
| Main Models |
1502/602 Hammer Union Seals, Weco Seal Rings, Weco Hammer Union Seals |
Applications:
SHQN replacement seals for separately specified Figure 1502 or 602 connections

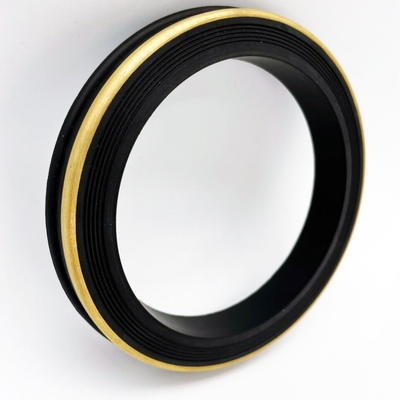

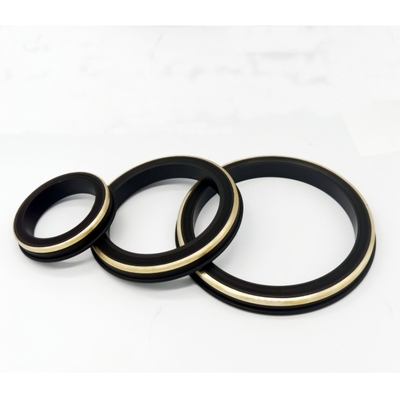

Figure 1502 and Figure 602 connection references require separate manufacturer-specific seal profiles and service specifications. A WECO-referenced replacement must match the selected union drawing. Specify any brass backing by its dimensions and part configuration; a rubber seal and a brass support ring are different elements of the assembly.
Black or custom colours and carton packing are available according to the confirmed order specification. Agree delivery timing for the selected sizes, compounds and quantities; the existing 15-day lead-time reference is subject to order confirmation.
For mixed-size maintenance orders, send a separate part line for each nominal connection size, actual seal profile, compound, Shore A hardness and backing material. Do not substitute between figures or compounds on colour and nominal size alone.
Customization:
Color: Available
Logo: Available
Sizes and materials: Available
Packing: Available
Support and Services:
Hammer Union Seal Technical Support and Service
For product-selection assistance, send the part drawing, union identification and service conditions. Include photos of the removed seal and mating recess where available to help clarify the required configuration.
Follow the equipment manufacturer instructions for assembly, inspection and replacement. Questions concerning seal fit or material selection can be reviewed against the supplied equipment information.
Agree inspection criteria, packaging and after-sales terms in the confirmed quotation and order.
FAQ:
Q1: What is Hammer Union Seal?
A1: A hammer union seal is a replacement component inside the identified pipe union. Select its profile and any backing from the manufacturer-specific part drawing.
Q2: What is the packaging of Hammer Union Seal?
A2: The packaging of Hammer Union Seal can be customized or standard packing.
Q3: What is the delivery time of Hammer Union Seal?
A3: Confirm delivery for the selected part configuration and order quantity; 15 days is an existing reference rather than a guaranteed schedule.
Q4: What is the material of Hammer Union Seal?
A4: Specify NBR, HNBR or FKM with the required hardness and fluid service. Other materials require a confirmed part design.
Q5: Are you manufacture or trading company?
We are manufacture. Our factory located in Haimen District, Nantong City, Jiangsu Province.
