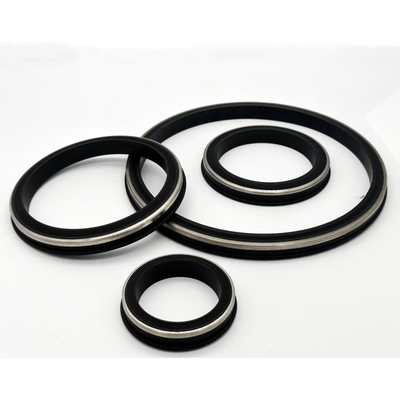

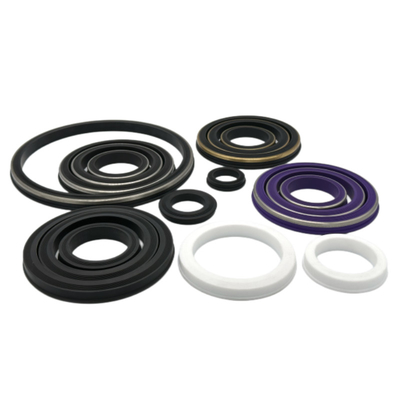

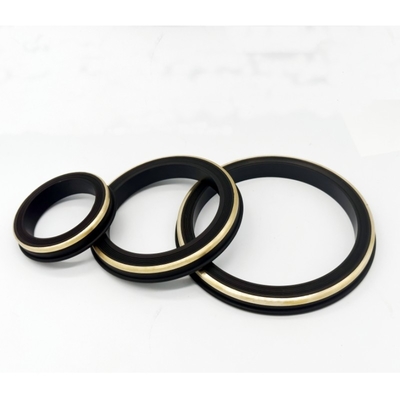

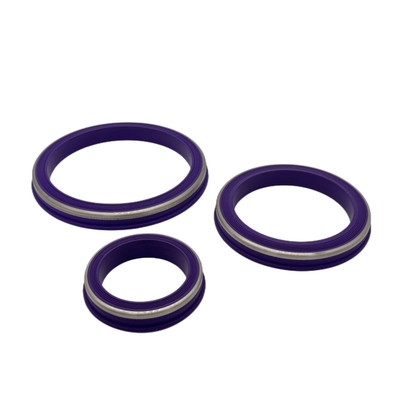

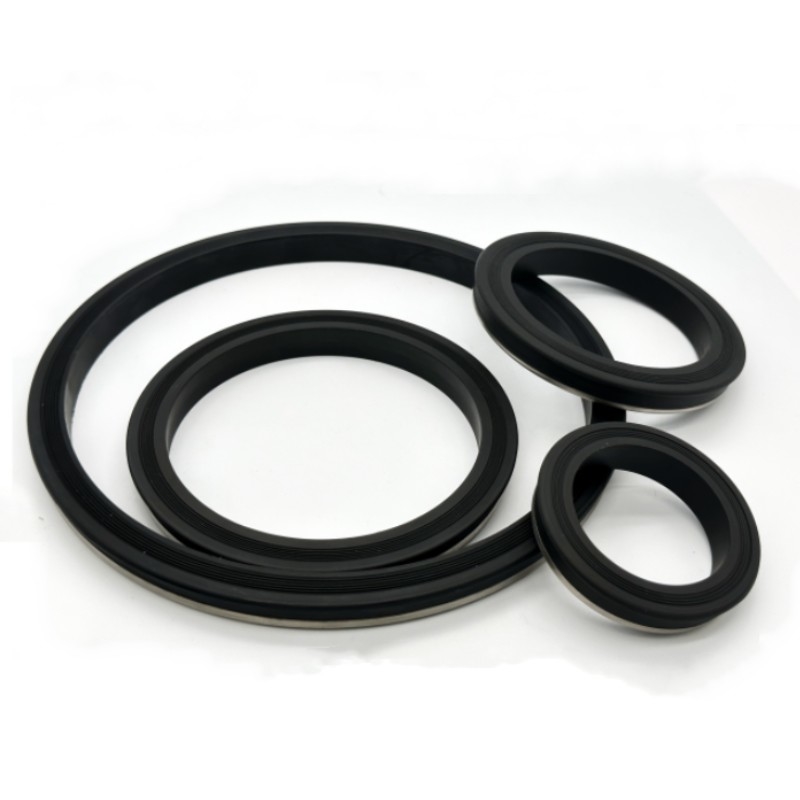

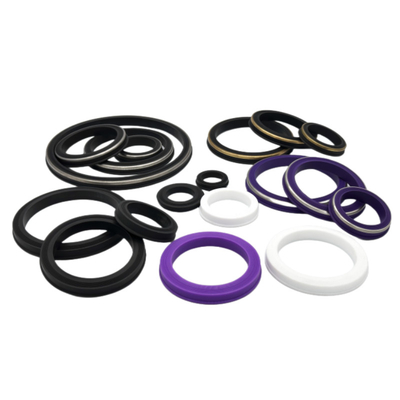

Wing union hammer seals are replacement sealing components for identified oilfield pipe connections. For chemical and oil service, select NBR, HNBR or FKM using the actual fluid composition, concentration and operating temperature. PTFE and PU options require a confirmed part design. The compound name alone does not establish compatibility with every chemical or a complete connection pressure rating.

The catalogue lists nominal 1-7 inch connection sizes. Confirm the actual seal outside diameter, inside diameter, cross-section and any backing dimensions for the selected union. Carton packing or specified custom packing can be agreed for the order.

Send the manufacturer, figure number, part drawing and required inspection criteria for a custom enquiry. Agree compound, hardness, backing and any performance test requirements before manufacture.

Technical Parameters:

Applications:

Figure 1502 and Figure 602 references require separately matched seal profiles and service specifications. For a WECO-referenced connection, confirm the manufacturer-specific drawing before ordering a replacement. Identify each size and compound separately in mixed maintenance orders; nominal size and colour are insufficient to establish interchangeability.

Provide the process-fluid information, temperature and required assembly operating conditions with the enquiry. Confirm any backing material and hardness against the selected part specification. Follow the equipment manufacturer instructions for installation and inspection of the mating recess.

Support and Services:

Hammer Union Seal Technical Support and Service

We are proud to offer our customers a wide range of technical support and service for Hammer Union Seal products. Our knowledgeable customer support team is available to answer any questions you may have and provide solutions to any technical issues you may encounter.

Our product experts are available to help you select the best Hammer Union Seal for your application, and to provide advice on installation and maintenance. We also offer troubleshooting assistance and after-sales support.

If you ever experience any problems with your Hammer Union Seal, please contact us and we will provide prompt assistance to help you get the most out of your product.

FAQ:

• Q: What is the brand name of Hammer Union Seal ?
  A: The brand name of Hammer Union Seal is SHQN.
• Q: Where is Hammer Union Seal made?
  A: Hammer Union Seal is made in China.
• Q: What kind of packing does Hammer Union Seal use?
  A: Hammer Union Seal uses custom packing or standard packing.
• Q: How long does it take for Hammer Union Seal to be delivered?
  A: Confirm delivery for the selected sizes, compounds and quantities; 15 days is an existing reference subject to order confirmation.
