Anti Extrusion Rubber Hammer Union Seals ID 6 Inch

Anti Extrusion Rubber Hammer Union Seals ID 6 Inch

Product Details:
Place of Origin: Shanghai, China
Brand Name: SHQN/Royal Way
Certification: ISO 9001
Model Number: HUS001
Payment & Shipping Terms:
Minimum Order Quantity: 500 pcs
Price: EXW$2/PC-$1.2/PC
Packaging Details: Plastic bag+Carton packing
Delivery Time: 7-15 days
Payment Terms: L/C, T/T, Western Union,
Supply Ability: 50000 per week
Contact Now
Detailed Product Description
Item Name: Hammer Union Seals For FIG 602, 1002 And 1502 References Material: NBR, FKM Or HNBR; Compound And Hardness Specification To Confirm
Color: Black Or Custom Color Size: 1, 1.5, 2, 3, 4 In Nominal Connection References; Actual Seal Dimensions By Figure
Packing: Carton Packing Pressure: By Exact Union Figure, Size And Approved Seal Design; Confirm Rating
Feature: Fluid Compatibility By Compound; Brass Or Stainless Backing By Design Application: Oil Drilling Industry/Oil And Gas Industry
Usage: Replacement Sealing Element For Matched Hammer Union Groove MOQ: 500pcs
Samples: Available Delivery Time: 7-15 Days
Service: OEM/ ODM Shipping Method: By Express, By Air, By Sea, By Car
In Stock: Confirm Availability By Figure, Size, Compound And Backing
Highlight:

Hammer Union Seals

,

Anti Extrusion Hammer Union Seals

,

ID 6 Inch Hammer Union Seals

Weco Fig 602/1002/1502 Hammer Union Seal for oil drilling industry

Product description


Hammer union seals are used in the connections between flexible hoses or pipes used in the oil drilling industry. The seal provides a critical fluid tight connection within the union hardware.



Hammer unions consist of a thread end, a nut end, and a hammer nut that when tightened seal the assembly with the assistance of an elastomer seal. The retaining lip profile must match the specified union groove; verify retention and sealing fit against the approved design.

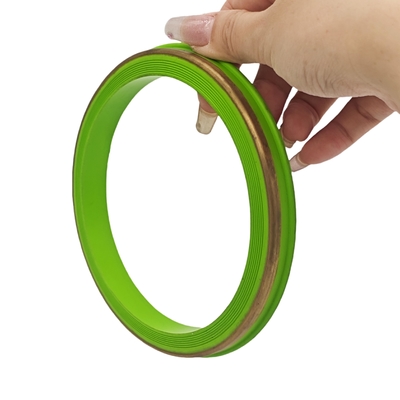

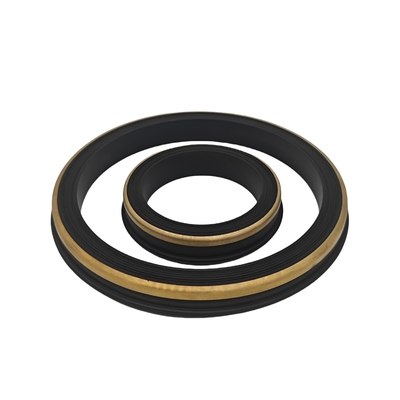

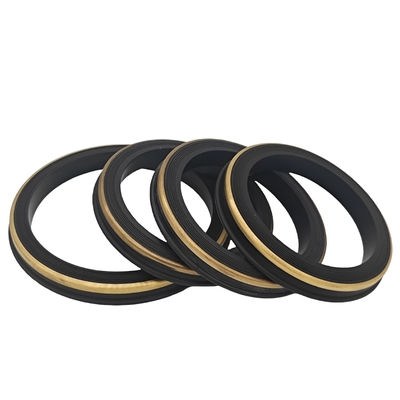

With brass ring:A brass backing ring supports the seal where specified by the connection design. Confirm its geometry and alloy, together with the rubber compound. Suitability for acids, alkalis or salt water depends on the actual medium and conditions; brass backing alone does not guarantee sealing performance or service life.

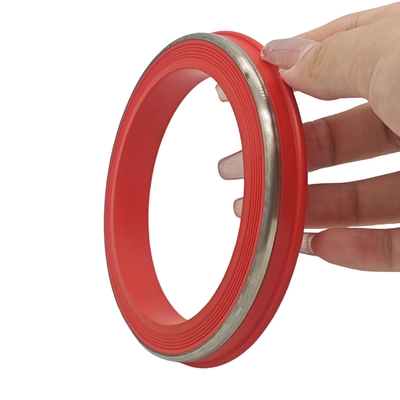

With stainless ring: A stainless backing ring is selected by alloy grade, geometry and service environment. Confirm compatibility with the actual fluid and temperature; a generic stainless designation does not establish resistance to every acid, alkali or salt solution.

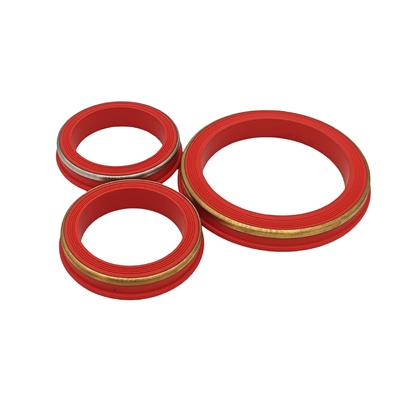

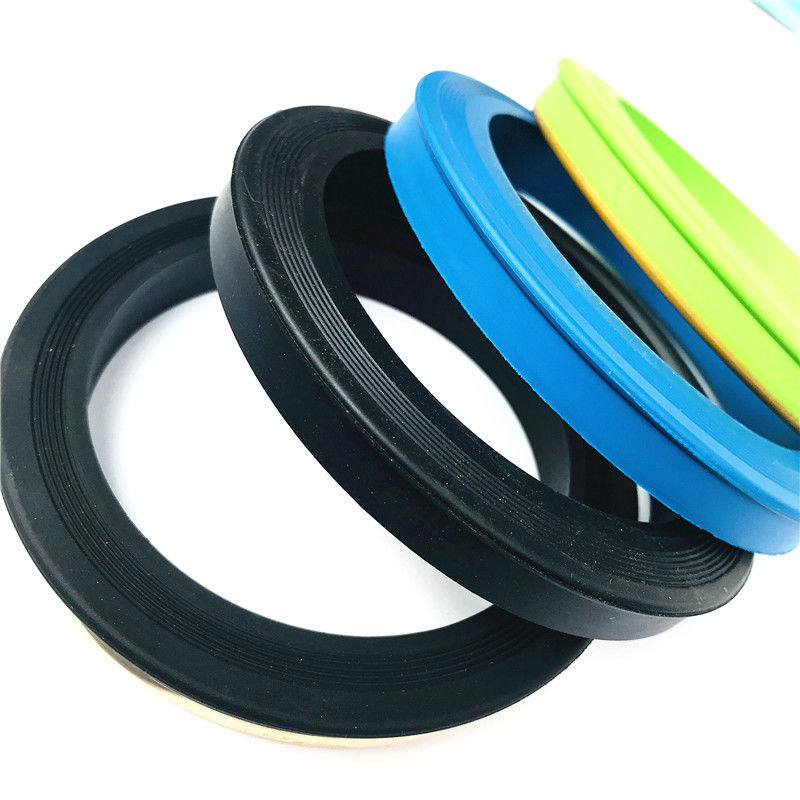

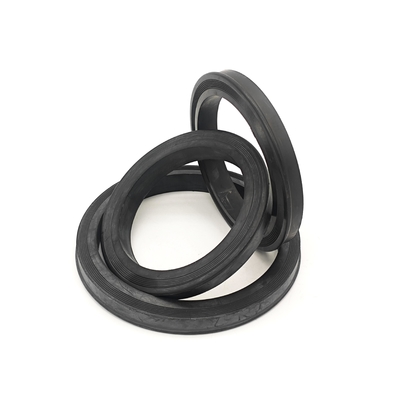

Product detailed photo


Anti Extrusion  Rubber Hammer Union Seals ID 6 InchAnti Extrusion  Rubber Hammer Union Seals ID 6 InchAnti Extrusion  Rubber Hammer Union Seals ID 6 Inch

Anti Extrusion  Rubber Hammer Union Seals ID 6 InchAnti Extrusion  Rubber Hammer Union Seals ID 6 InchAnti Extrusion  Rubber Hammer Union Seals ID 6 Inch
Company and factory profile




Anti Extrusion  Rubber Hammer Union Seals ID 6 InchAnti Extrusion  Rubber Hammer Union Seals ID 6 InchAnti Extrusion  Rubber Hammer Union Seals ID 6 InchAnti Extrusion  Rubber Hammer Union Seals ID 6 InchAnti Extrusion  Rubber Hammer Union Seals ID 6 InchAnti Extrusion  Rubber Hammer Union Seals ID 6 Inch

Shangahi Qinuo Industry Co., Ltd was established in the year of 2013 at Shanghai Free Trade Zone, we are a new and high-tech enterprise integrating R&D, production and sales. Since its inception, we adhering to the "Quality for Survival, Innovation Competes For Development " concept, continuous development and innovation, we won a good reputation at home and abroad, Qinuo has a brand name "SHQN® ".

Qinuo provides professional rubber parts, plastic parts and maching parts design and production services, products mainly used in oil & gas industry, automobiles, household appliances, machinery equipment etc. We have a professional production and sales team, "High-Quality, High Professionalism, High Efficiency" are the principles of doing things.



Under the Shanghai Qinuo, we have two wholly-owned factories in Nantong City, only an hour's drive to Shanghai Pudong Airport or Shanghai Sea port to ensure the quick delivery, we have more than 30 rubber vulcanizing machines and relevanted equipments, so that Qinuo can produce more than 20 kinds of rubber rings or other rubber products together to meet our customer's demands, our monthly rubber processing capability can upto 20 tons (about 40, 000 lbs) or more. And Qinuo is still in rapid growthing.

We adopt comprehensive quality management system based on the ISO9001, our products are mainly exported to the United States, Canada, Britain, Germany, Finland, Australia more than 100 countries extend all over the globe. Qinuo is sincerely wishing to cooperate with you.



Related rubber products


Anti Extrusion  Rubber Hammer Union Seals ID 6 Inch Rubber o ring



Anti Extrusion  Rubber Hammer Union Seals ID 6 Inch Rubber bung stopper(silicone rubber or natural rubber)



Anti Extrusion  Rubber Hammer Union Seals ID 6 InchRubber Swab Cup(TA Type)



Anti Extrusion  Rubber Hammer Union Seals ID 6 Inch Rubber Oil Packer

Anti Extrusion  Rubber Hammer Union Seals ID 6 Inch Oil Saver Rubber



Anti Extrusion  Rubber Hammer Union Seals ID 6 Inch Swivel joint repair kit

Anti Extrusion  Rubber Hammer Union Seals ID 6 Inch Plug valve seal kit





FIG 602, 1002 and 1502 Union Seals: Compare Brass and Stainless Backing Requirements

Choose the replacement by union manufacturer, figure number and nominal size before selecting the backing material. The original 1, 1.5, 2, 3 and 4-inch entries are range references. Confirm the seal dimensions and groove for the exact connection; FIG 602, 1002 and 1502 references do not establish interchangeable profiles.

When comparing brass-backed and stainless-backed seals, specify the metal alloy, ring dimensions and rubber-to-metal arrangement on the drawing or sample. Match the backing to the required support geometry and fluid environment. Black colour does not identify the rubber compound, and an 80 or 90 hardness reference must include its test scale and tolerance.

For an enquiry, provide the seal drawing, fluid composition, operating temperature and marked connection rating. Select NBR, FKM or HNBR by the compound requirements and confirm any special gas-service qualification separately. Inspect seal lips, backing surfaces and dimensions before fitting the replacement. Pressure capability depends on the exact union assembly and approved seal configuration.
