NBR hammer union seals for specified fluid service and union configuration
Hammer Union seals
NBR (nitrile/Buna-N) hammer union seals fit the matched seal recess in oilfield flow-line connections. For chemical-service enquiries, provide the fluid composition, concentration and operating temperature together with the union manufacturer, figure and part dimensions. Chemical compatibility must be assessed for the selected compound; the NBR material name alone does not establish resistance to every process fluid.
Available size : 1", 2", 3", 4" and 5"
Material: Nitrile rubber is also called NBR, Buna or Buna-N. FKM, HNBR and PTFE are separately specified material options requiring confirmed dimensions and service suitability. Sour-gas use requires the appropriate material qualification and equipment specification. Brass or stainless steel anti-extrusion rings are available for specified part configurations; backing material and dimensions must match the identified union.
| Available size: |
1" 2" 3" 4" 5" |
| Available Material |
NBR for this enquiry; alternative compounds and Shore A hardness per approved part specification
|
| Hammer union seals pressure |
A 15,000 psi working or 22,500 psi test requirement must be confirmed for the complete identified union assembly. No standalone seal test rating is established here.
|
- Confirm actual seal inside diameter, outside diameter and cross-section from the part drawing
- NBR; alternative compounds require separate service and fit confirmation
- Shore A hardness per selected compound and approved part specification

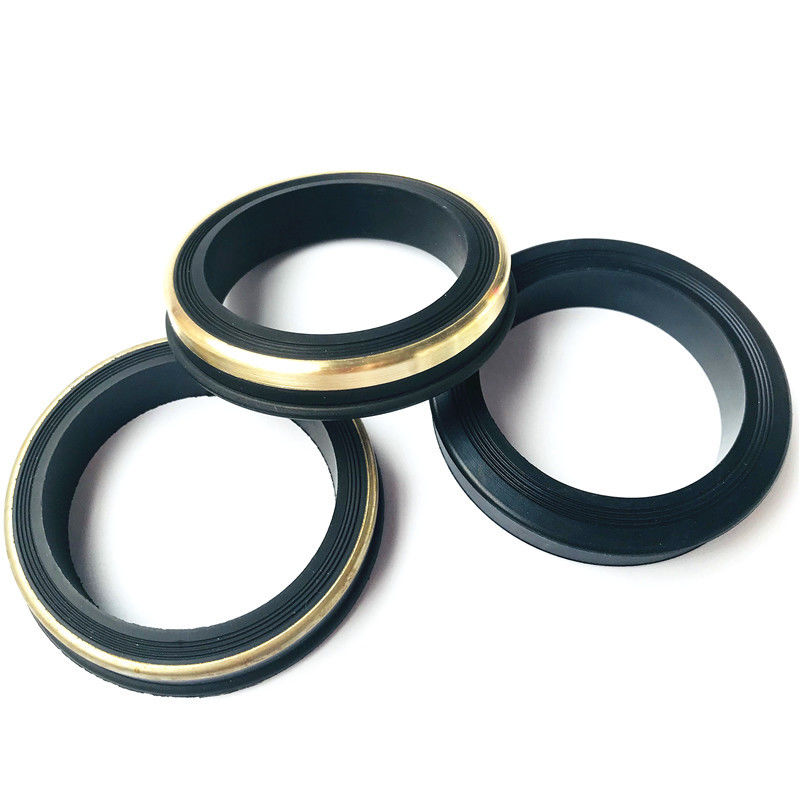

- May be reinforced with brass or stainless steel anti-extrusion ring
Application: Hammer union seals are used in the connections between flexible hoses or pipes used in the oil drilling industry. The seal provides a critical fluid tight connection within the union hardware.
Available for various figures and styles.
Shanghai Qinuo Industry produced a full line of Hammer Union Seals.
For a Figure 1502 replacement, confirm the manufacturer and matching seal drawing before ordering. Brass-backed and stainless-backed versions are separate configurations. Submit any 15,000 psi working-pressure or 22,500 psi test requirement with the complete assembly specification for review; suitability and test evidence must be established for that configuration and fluid service.
