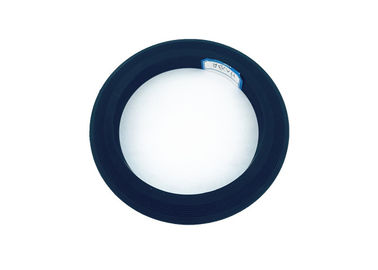

1502 WECO HNBR 3" Hammer Union Fittings For Various Figures And Styles

3-inch HNBR hammer union replacement seal rings for specified Figure 1502 connections

The 3-inch HNBR replacement seal is selected for the identified Figure 1502 union recess. Confirm the equipment manufacturer, seal profile and part drawing before ordering for a WECO-referenced connection. Nominal 3-inch line size is not the seal inside diameter, and the replacement ring does not include the complete union fitting. Other figures require their own matched seal specification.

Available size :  1", 1 1/2", 2", 3", 4" and 5"

Material: HNBR is specified for this 3-inch seal enquiry. Confirm Shore A hardness and compound against the approved part specification: the legacy information lists both 80 and 83 Shore A, so the required value must be agreed for the order. Brass-backed and stainless-backed variants require a matching backing drawing; NBR alternatives and customised colours are separately specified configurations.

Application: Hammer union seals are used in the connections between flexible hoses or pipes used in the oil drilling industry. The seal provides a critical fluid tight connection within the union hardware.

Available for various figures and styles.

– O-Rings.

– Lip Seal Rings.

– Brass Backed Seal Rings.

– Stainless Steel Backed Seal Rings.

Shanghai Qinuo Industry produced a full line of Hammer Union Seals.

For a 3-inch Figure 1502 replacement, compare rubber cross-section, backing configuration and mating recess with the specified part drawing. Include fluid composition, temperature and required service qualification in the enquiry. HNBR identification alone does not establish sour-gas suitability or a complete assembly pressure rating. Working-pressure and test requirements require configuration-specific evidence.

Other relative rubber products for oil drilling use:

Shanghai Qinuo Industry Co. Ltd was established in 2003, is a new and high-tech enterprise integrating R&D, production and sales. Since its inception, we adhering to the "Quality for Survival, Innovation Competes For Development " concept, continuous development and innovation, we won a good reputation at home and abroad.
Our company provides professional plastic parts, rubber parts and maching parts design and production services, products mainly used in automobiles, household appliances, machinery equipment and oil industry and other fields. We have a professional production and sales team, "High-Quality, High Professionalism, High Efficiency" are the principles of doing things.
We have two factories, more than 30 injection molding machines, molding machines and CNC lathes. Our company is located in Pudong New Area, Shanghai. Elegant environment, convenient transportation, Only need 30 minutes from our company to Pudong Airport.
We adopt comprehensive quality management system, applicable material compliance documentation is provided for the specified product when available, our products are mainly exported to the United States, Canada, Britain, Germany, Finland, New Zealand, Australia and other countries and regions.

Qinuo Equipment list:

Welcome to contact us for more information.
