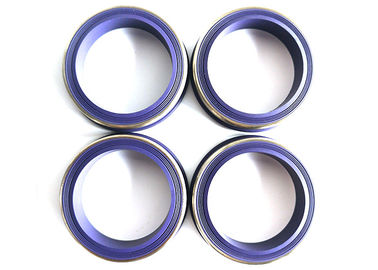

Flow Line / Oil Field Rubber Lip Seal With Metal Backed Seal Ring

                                                           Product   Description
Metal-backed rubber lip seals for oilfield flow-line unions combine the selected rubber profile with a support ring matched to the connection recess. The union nut compresses the seal within the mating hardware. Order the rubber and backing as the specified configuration, using the union manufacturer, figure number and part drawing to identify the replacement.
For a backed lip seal, check backing inside diameter, outside diameter and thickness alongside the lip cross-section. Inspect the removed component and mating recess for damage before replacement, following the equipment manufacturer instructions. Specify the rubber compound, Shore A hardness, backing material and fluid-service conditions together. Figure references 602, 1002, 1502, 2002 and 2202 require individual fit confirmation; nominal line size does not establish compatibility or assembly pressure rating.

                                                              Product    Show


                                                                  Our  comapany
Shanghai Qinuo Industry
Shanghai Qinuo Industry Co., Ltd was specialized in rubber and plastic field for more than 10 years.
Our company have strong technical force, advanced technical equipments, complete testing means and scientific quality management.
Our main services include develop and manufacture rubber parts and molds, plastic parts and molds.
We can also according to customers requirement to provide various kinds of mixing rubber
