Industrial Hammer Union Seal For High Pressure Pipe ISO9001 Listed

Industrial Hammer Union Replacement Seals with Specified Metal Support

Custom-molded oilfield rubber components supplied to agreed drawings and material specifications

One Stop service, from the mold design to finished products.

Send the component drawing, material requirements and service conditions for a manufacturing enquiry.

Qinuo Equipment list:

Qinuo Material processing range:

Qinuo Custom Capabilties:

Application

NBR nitrile hammer union seal rings are replacement sealing elements for compatible hose and pipe union connections used in oil-drilling equipment. Specify the nominal connection size, union figure and original seal drawing so that each ring matches its intended groove.

Product Description

A hammer union comprises of a thread end, a nut end and a hammer nut which, when cinched up, compresses a composite seal assembly thereby preventing leakage.

The seal assembly comprises a metal insert of a size to pass into the seal groove of conventional hammer unions and a small seal acting between the insert, the thread end and the nut end.

The small seal is conveniently an O-ring or a Hammer Union Seal (Lip Seal) and is of a size that is compressed when the seal assembly is inserted into the thread end of the hammer union.

A hammer union is the complete metal connection; the seal is its replaceable sealing element. Confirm the manufacturer drawing and groove for each connection.

Figure references 602, 1002, 1502, 2002 and 2202 require their own seal drawing and service review.

Available size : 1", 2", 3", 4" and 5"

Material:

For a custom-size union seal, select one compound and hardness per drawing. NBR, nitrile and Buna-N identify the same polymer family; HNBR/HSN, FKM and PU are separate options. PTFE is a separate thermoplastic choice requiring its own design review.

Shanghai Qinuo Industry produced a full line of Hammer Union Seals.

For Figure 1502 enquiries, confirm the complete union manufacturer rating and applicable proof-test documentation. A replacement seal has no independent assembly pressure rating.

Brass-supported and stainless-supported seal enquiries require the specified metal grade, support geometry and original groove drawing.

Other seal enquiries; confirm material, figure and drawing for each item:

1" HAMMER UNION LIP SEAL RING, BUNA

1-1/2" HAMMER UNION LIP SEAL RING, BUNA

2" HAMMER UNION LIP SEAL RING, BUNA

3" HAMMER UNION LIP SEAL RING, BUNA

1" HAMMER UNION LIP SEAL RING,

1-1/2" HAMMER UNION LIP SEAL RING,

2" HAMMER UNION LIP SEAL RING,

3" HAMMER UNION LIP SEAL RING,

2" HAMMER UNION SEAL RING, BUNA W/ BRASS BACKING

3" HAMMER UNION SEAL RING, BUNA W/ BRASS BACKING

4" HAMMER UNION SEAL RING, BUNA W/ BRASS BACKING

2" HAMMER UNION SEAL RING, W/ BRASS BACKING

3" HAMMER UNION SEAL RING, W/ BRASS BACKING

4" HAMMER UNION SEAL RING, W/ BRASS BACKING

2" HAMMER UNION SEAL RING, BUNA W/ STAINLESS STEEL BACKING

3" HAMMER UNION SEAL RING, BUNA W/ STAINLESS STEEL BACKING

4" HAMMER UNION SEAL RING, BUNA W/ STAINLESS STEEL BACKING

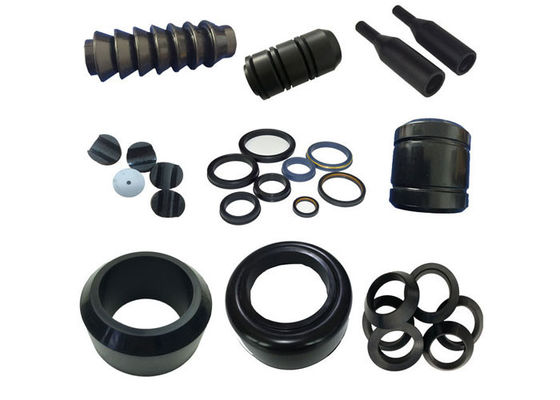

Other relative rubber products for oil drilling use:

Packing and shipping

1: Express: S.F. ,DHL,UPS, TNT, FedEx ect, for urgent and small order.

2: Air shipment: air port to air port or air port to door.

3: Sea shipment: suitable for bulk goods. it will takes more longer time than air shipment.

Our company

Shanghai Qinuo Industry Co. Ltd

was established in 2003, is a new and high-tech enterprise integrating R&D, production and sales. Since its inception, we adhering to the "Quality for Survival, Innovation Competes For Development " concept, continuous development and innovation, we won a good reputation at home and abroad.

Our company provides professional plastic parts, rubber parts and maching parts design and production services, products mainly used in automobiles, household appliances, machinery equipment and oil industry and other fields. We have a professional production and sales team, "High-Quality, High Professionalism, High Efficiency" are the principles of doing things.

We have two factories, more than 30 injection molding machines, molding machines and CNC lathes. Our company is located in Pudong New Area, Shanghai. Elegant environment, convenient transportation, Only need 30 minutes from our company to Pudong Airport.

We adopt comprehensive quality management system, material-compliance documentation is reviewed against the specified product and order requirements, our products are mainly exported to the United States, Canada, Britain, Germany, Finland, New Zealand, Australia and other countries and regions.

----------------------------------------------------------------------------------------------------------------------------------------------------------------------

The steps of the production:

Industrial Union Seal Supply: Define Inspection Documents Alongside the Drawing

For an industrial high-pressure pipe connection, identify the union manufacturer, figure, nominal size and seal part number. Provide the lip-section drawing and any brass or stainless support details. The seal is a replacement component; the complete union assembly establishes the connection rating.

Specify the required inspection documents with the order, including dimensional results, material identification and any agreed batch records. ISO 9001 relates to the quality management system and does not establish a product pressure rating or API certification. Certificates of origin and conformity documents are defined by the agreed shipment and order requirements.

State the selected compound, hardness, fluid composition, temperature and pressure-cycle conditions before sample approval. Agree drawing revision, acceptance criteria, packaging and quantity per part. Sour-service, decompression or other special qualification needs the exact compound and relevant test requirements.
