Rubber Hammer Union Seals , NBR / Buna Lip Seal ISO9001 Certification

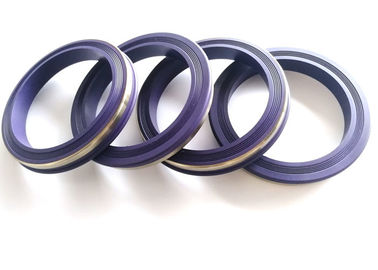

Industrial Hammer Union Replacement Seals with Specified Metal Support

Other seal enquiries; confirm material, figure and drawing for each item:

1" HAMMER UNION LIP SEAL RING, BUNA

1-1/2" HAMMER UNION LIP SEAL RING, BUNA

2" HAMMER UNION LIP SEAL RING, BUNA

3" HAMMER UNION LIP SEAL RING, BUNA

1" HAMMER UNION LIP SEAL RING,

1-1/2" HAMMER UNION LIP SEAL RING,

2" HAMMER UNION LIP SEAL RING,

3" HAMMER UNION LIP SEAL RING,

2" HAMMER UNION SEAL RING, BUNA W/ BRASS BACKING

3" HAMMER UNION SEAL RING, BUNA W/ BRASS BACKING

4" HAMMER UNION SEAL RING, BUNA W/ BRASS BACKING

2" HAMMER UNION SEAL RING, W/ BRASS BACKING

3" HAMMER UNION SEAL RING, W/ BRASS BACKING

4" HAMMER UNION SEAL RING, W/ BRASS BACKING

2" HAMMER UNION SEAL RING, BUNA W/ STAINLESS STEEL BACKING

3" HAMMER UNION SEAL RING, BUNA W/ STAINLESS STEEL BACKING

4" HAMMER UNION SEAL RING, BUNA W/ STAINLESS STEEL BACKING

                                         Application

NBR nitrile hammer union seal rings are replacement sealing elements for compatible hose and pipe union connections used in oil-drilling equipment. Specify the nominal connection size, union figure and original seal drawing so that each ring matches its intended groove.

                                 Product Description

A hammer union comprises of a thread end, a nut end and a hammer nut which, when cinched up, compresses a composite seal assembly thereby preventing leakage.

The seal assembly comprises a metal insert of a size to pass into the seal groove of conventional hammer unions and a small seal acting between the insert, the thread end and the nut end.

The small seal is conveniently an O-ring or a Hammer Union Seal (Lip Seal) and is of a size that is compressed when the seal assembly is inserted into the thread end of the hammer union.

A hammer union is the complete metal connection; the seal is its replaceable sealing element. Confirm the manufacturer drawing and groove for each connection.

Figure references 602, 1002, 1502, 2002 and 2202 require their own seal drawing and service review.

Available size : 1", 2", 3", 4" and 5"

Material:

NBR, nitrile and Buna-N identify the material family for this lip-seal listing. Specify the exact NBR compound and Shore A hardness for each drawing. Alternative HNBR, FKM, PU or PTFE options are reviewed and quoted separately.

Shanghai Qinuo Industry produced a full line of Hammer Union Seals.

For Figure 1502 enquiries, confirm the complete union manufacturer rating and applicable proof-test documentation. A replacement seal has no independent assembly pressure rating.

Brass-supported and stainless-supported seal enquiries require the specified metal grade, support geometry and original groove drawing.
