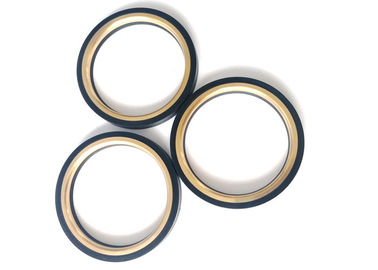

Industrial Hammer Union Seal / Oil Lip Seal With Brass Backed Rings

Industrial Hammer Union Seal / Oil Lip Seal With Brass Backed Rings

Product Details:
Place of Origin: Shanghai, China
Brand Name: SHQN/Royal Way
Certification: ISO9001
Model Number: HUS001
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pieces
Price: US$ 0.2-1
Packaging Details: bulking packing , standard carton
Delivery Time: 50000 pcs/ week
Payment Terms: T/T, Western Union
Contact Now
Detailed Product Description
Material: NBR (nitrile) To Approved Grade With Specified Brass Backing Size: 1, 2, 3, 4 Or 5 Inch Line References; Seal And Brass Dimensions By Drawing
Pressure: By Complete Union Manufacturer Rating And Approved Service; No Independent Seal Rating Color: Black Or Customized Color
Nearest Port: Shanghai Custom: Customize According To Client's Drawing And Requirements
MOQ: 1000pcs
Highlight:

rubber lip seal

,

rubber hammer union seal

NBR Hammer Union Lip Seals with Specified Brass Backing

Brass-Backed Union Seal Orders: Specify Rubber and Metal as One Construction

Construction item Enquiry requirement
Union identity Manufacturer, figure, nominal pipe size and seal part number.
Rubber profile ID, OD, lip geometry, height and dimensional tolerances.
Brass backing Backing dimensions, material specification and bonded or separate construction.
NBR compound Grade, hardness and actual oil, fluid and temperature exposure.
Acceptance Approved sample fit and inspection requirements for repeat orders.

Nominal line size is not the seal outside diameter. Inspect the union groove and mating surfaces before replacement and follow the original assembly procedure. ISO 9001 quality management supports specification review and inspection; special sour-gas duty requires separate compound qualification.



                                         Application

Hammer union seals are used in the connections between flexible hoses or pipes used in the oil drilling industry. The seal provides a critical fluid tight connection within the union hardware.

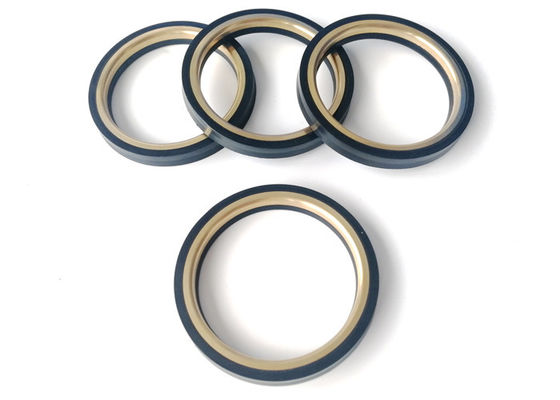

Industrial Hammer Union Seal / Oil Lip Seal With Brass Backed Rings



Industrial Hammer Union Seal / Oil Lip Seal With Brass Backed Rings

                                 Product Description

A hammer union comprises of a thread end, a nut end and a hammer nut which, when cinched up, compresses a composite seal assembly thereby preventing leakage.



The brass-backed seal construction must match the original union groove and approved profile. Confirm rubber dimensions, backing dimensions and whether the backing is bonded or separately assembled.



Use the seal profile specified by the union manufacturer. An O-ring and a lip seal are separate designs and must not be substituted solely from nominal pipe size.



Hammer union hardware provides the pipe connection; the replacement rubber seal is one component of that assembly. Follow the original manufacturer instructions for compatible halves, assembly and inspection.



For Figure 602, 1002, 1502, 2002 or 2202 enquiries, specify the manufacturer, figure, nominal size and seal drawing. Figure references alone do not establish interchangeability or stock availability.



Available size : 1", 2", 3", 4" and 5"



Material:



Specify the NBR (nitrile) grade, hardness and Shore scale for this brass-backed seal. HNBR or other compounds require a separate material specification and service review.



Shanghai Qinuo Industry produced a full line of Hammer Union Seals.

For Figure 1502 service, verify the complete union rating and required testing against the original manufacturer documentation. A replacement seal or brass backing does not independently establish a working-pressure or test-pressure rating.



Brass and stainless-steel backing versions require separate construction specifications. Confirm the backing material, dimensions and fit for the actual union; do not substitute one material without an approved drawing.



Related Hammer Union Seal References — Confirm Material and Drawing:

1" HAMMER UNION LIP SEAL RING, BUNA

1-1/2" HAMMER UNION LIP SEAL RING, BUNA

2" HAMMER UNION LIP SEAL RING, BUNA

3" HAMMER UNION LIP SEAL RING, BUNA

1" HAMMER UNION LIP SEAL RING,

1-1/2" HAMMER UNION LIP SEAL RING,

2" HAMMER UNION LIP SEAL RING,

3" HAMMER UNION LIP SEAL RING,

2" HAMMER UNION SEAL RING, BUNA W/ BRASS BACKING

3" HAMMER UNION SEAL RING, BUNA W/ BRASS BACKING

4" HAMMER UNION SEAL RING, BUNA W/ BRASS BACKING

2" HAMMER UNION SEAL RING, W/ BRASS BACKING

3" HAMMER UNION SEAL RING, W/ BRASS BACKING

4" HAMMER UNION SEAL RING, W/ BRASS BACKING

2" HAMMER UNION SEAL RING, BUNA W/ STAINLESS STEEL BACKING

3" HAMMER UNION SEAL RING, BUNA W/ STAINLESS STEEL BACKING

4" HAMMER UNION SEAL RING, BUNA W/ STAINLESS STEEL BACKING
