2'' 3'' 4'' Hammer Union Seals For High Pressure Pipe Manifolds And Plug Valve

2'' 3'' 4'' Hammer Union Seals For High Pressure Pipe Manifolds And Plug Valve

Product Details:
Place of Origin: Shanghai, China
Brand Name: SHQN
Certification: ISO9001
Model Number: HUS001
Payment & Shipping Terms:
Minimum Order Quantity: 500 pieces
Price: US$ 0.2/pc-1/pc
Packaging Details: bulking packing , standard carton
Delivery Time: 50000 pcs/ week
Payment Terms: T/T, Western Union
Supply Ability: 50000pcs Per Month
Contact Now
Detailed Product Description
Material: NBR Nitrile; Exact Compound And Hardness To Confirm Size: 2, 3 And 4-inch Nominal Connection Enquiry; Dimensions To Drawing
Color: Black Or Customized Color Nearest Port: Shanghai
Custom: Customize According To Client's Drawing And Requirements Feature: Fluid And Temperature Suitability By Selected NBR Grade
Application: Hammer Union Connections On Specified Manifold Or Valve Assembly Usage: Replacement Connection Seal; Internal Valve Seals Separately Identified
Shape: Union Seal Profile To Original Groove MOQ: 500pcs
Delivery Time: 5-15 Days Samples: Available
Shipping Method: By Sea, By Express, By Air, By Truck Service: OEM/ ODM
Pressure: By Complete Assembly And Union Specification; No Universal Seal-only Rating
Highlight:

rubber lip seal

,

rubber hammer union seal

2, 3 and 4-Inch NBR Hammer Union Seals — Manifold Connection Replacement



Product Description

A hammer union comprises of a thread end, a nut end and a hammer nut which, when cinched up, compresses a composite seal assembly thereby preventing leakage. The seal assembly comprises a metal insert of a size to pass into the seal groove of conventional hammer unions and a small seal acting between the insert, the thread end and the nut end. The small seal is conveniently an O-ring or a Hammer Union Seal (Lip Seal) and is of a size that is compressed when the seal assembly is inserted into the thread end of the hammer union.



The hammer union seal is a sealing component installed within the matching union hardware; it is not the complete threaded or welded connection. Shanghai Qinuo can supply you best Hammer Union seal in different figs like 602, 1002, 1502, 2002 and 2202.



Available size : 1", 2", 3", 4" and 5"



Material:



NBR nitrile replacements for identified union connections; confirm grade, hardness scale and exact profile for each nominal size



Shanghai Qinuo Industry produced a full line of Hammer Union Seals.

Figure 1502 replacement fit requires the original union drawing and selected compound. Confirm working pressure and any proof-test requirement from the complete union specification and applicable documentation. Brass-backed and stainless-backed versions are separate construction choices; no universal pressure or proof-test rating is stated for the seal alone.

                                         Application

Hammer union seals are used in the connections between flexible hoses or pipes used in the oil drilling industry. The seal provides a critical fluid tight connection within the union hardware.



All available Hammer Union seals list :

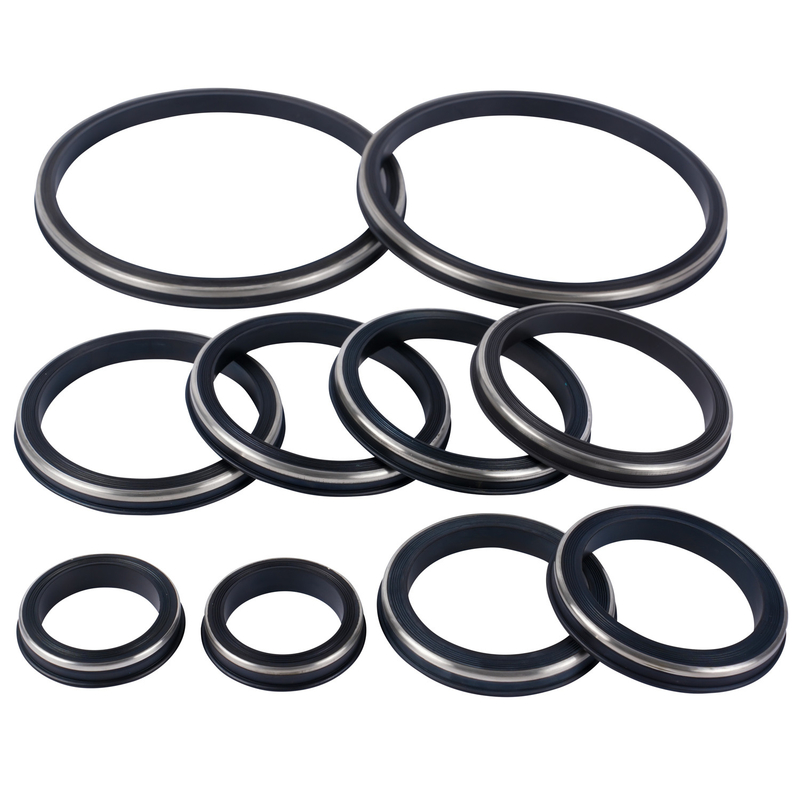

1" HAMMER UNION LIP SEAL RING, BUNA

1-1/2" HAMMER UNION LIP SEAL RING, BUNA

2" HAMMER UNION LIP SEAL RING, BUNA

3" HAMMER UNION LIP SEAL RING, BUNA

1" HAMMER UNION LIP SEAL RING,

1-1/2" HAMMER UNION LIP SEAL RING,

2" HAMMER UNION LIP SEAL RING,

3" HAMMER UNION LIP SEAL RING,

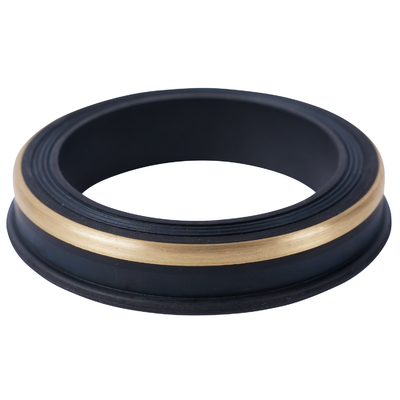

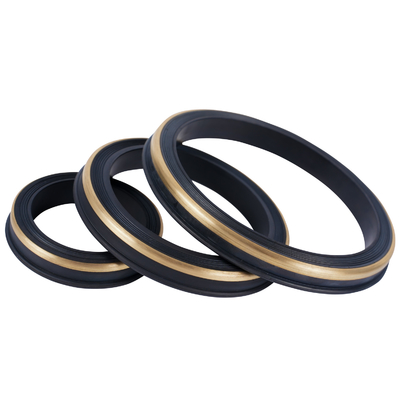

2" HAMMER UNION SEAL RING, BUNA W/ BRASS BACKING

3" HAMMER UNION SEAL RING, BUNA W/ BRASS BACKING

4" HAMMER UNION SEAL RING, BUNA W/ BRASS BACKING

2" HAMMER UNION SEAL RING, W/ BRASS BACKING

3" HAMMER UNION SEAL RING, W/ BRASS BACKING

4" HAMMER UNION SEAL RING, W/ BRASS BACKING

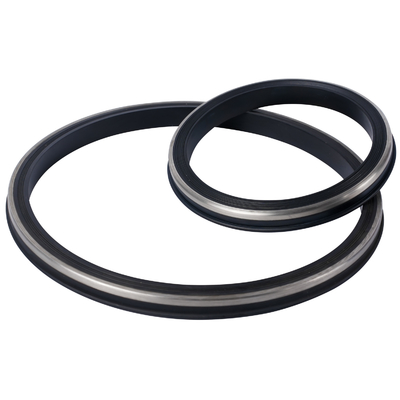

2" HAMMER UNION SEAL RING, BUNA W/ STAINLESS STEEL BACKING

3" HAMMER UNION SEAL RING, BUNA W/ STAINLESS STEEL BACKING

4" HAMMER UNION SEAL RING, BUNA W/ STAINLESS STEEL BACKING



Other relative rubber products for oil drilling use:

2'' 3'' 4'' Hammer Union Seals For High Pressure Pipe Manifolds And Plug Valve

                                   Packing and shipping

1: Express: S.F. ,DHL,UPS, TNT, FedEx ect, for urgent and small order.

2: Air shipment: air port to air port or air port to door.

3: Sea shipment: suitable for bulk goods. it will takes more longer time than air shipment.

2'' 3'' 4'' Hammer Union Seals For High Pressure Pipe Manifolds And Plug Valve

2'' 3'' 4'' Hammer Union Seals For High Pressure Pipe Manifolds And Plug Valve

                                            Our company



Shanghai Qinuo Industry Co. Ltd

was established in 2003, is a new and high-tech enterprise integrating R&D, production and sales. Since its inception, we adhering to the "Quality for Survival, Innovation Competes For Development " concept, continuous development and innovation, we won a good reputation at home and abroad.

Our company provides professional plastic parts, rubber parts and maching parts design and production services, products mainly used in automobiles, household appliances, machinery equipment and oil industry and other fields. We have a professional production and sales team, "High-Quality, High Professionalism, High Efficiency" are the principles of doing things.

We have two factories, more than 30 injection molding machines, molding machines and CNC lathes. Our company is located in Pudong New Area, Shanghai. Elegant environment, convenient transportation, Only need 30 minutes from our company to Pudong Airport.

We adopt comprehensive quality management system, material-specific compliance documentation can be reviewed for the ordered compound, our products are mainly exported to the United States, Canada, Britain, Germany, Finland, New Zealand, Australia and other countries and regions.

2'' 3'' 4'' Hammer Union Seals For High Pressure Pipe Manifolds And Plug Valve



The steps of the production:



2'' 3'' 4'' Hammer Union Seals For High Pressure Pipe Manifolds And Plug Valve



Welcome to contact us for more information.

Manifold and Plug-Valve Connections: Identify the Union Seal Location

This enquiry concerns the hammer union connection seal on an identified manifold or plug-valve connection. Provide the assembly drawing and union figure to identify the seal location. Internal plug-valve soft seals require their own part reference and are separate from a hammer union connection seal.

For each nominal 2, 3 or 4-inch replacement, confirm the maker reference, lip profile and any brass or stainless support ring. Rubber-only and supported versions must match the original groove and assembly requirements. Nominal connection size does not establish the seal dimensions.

Specify the NBR grade, hardness and fluid/temperature duty, together with required inspection documents. Review the complete manifold, valve and union specifications for pressure requirements. Do not use a generic seal listing as the pressure approval for the assembled equipment.
