| Place of Origin: | Shanghai, China |
| Brand Name: | SHQN/Royal Way |
| Certification: | ISO9001 |
| Model Number: | HUS001 |
| Minimum Order Quantity: | 500 pieces |
|---|---|
| Price: | US$ 0.2-1 |
| Packaging Details: | bulking packing , standard carton |
| Delivery Time: | 50000 pcs/ week |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 50000 per week |
| Material: | FKM Fluoroelastomer Enquiry; Exact Grade To Confirm; NBR Separately Specified | Size: | 2, 3 And 4-inch Nominal Figure1502 References; Dimensions To Drawing |
|---|---|---|---|
| Pressure: | By Complete Union Specification; No Universal Seal-only Rating | Color: | Black Or Customized Color |
| Nearest Port: | Shanghai | Custom: | Customize According To Client's Drawing And Requirements |
| Service: | OEM/ ODM | MOQ: | 500pcs |
| Feature: | Fluid And Temperature Suitability By Selected FKM Grade | Application: | FKM Replacement Seal For Identified Figure1502 Oilfield Union |
| Delivery Time: | 7-15 Days | In Stock: | Yes |
| Shipping: | By Air, By Express, By Sea | ||
| Highlight: | hammer seal union,rubber lip seal |
||

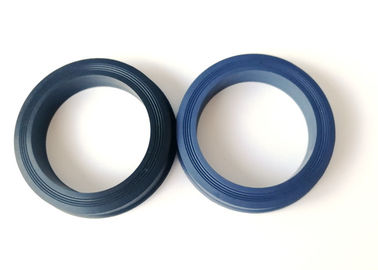

2, 3 and 4-Inch Figure 1502 FKM Hammer Union Seals — Compound-Specific Enquiry
The hammer union seal is a sealing component installed within the matching union hardware; it is not the complete threaded or welded connection. Shanghai Qinuo can supply you best Hammer Union seal in different figs like 602, 1002, 1502, 2002 and 2202.
Available size : 1", 2", 3", 4" and 5"
Material:
This enquiry concerns Figure 1502 FKM fluoroelastomer replacements in nominal 2, 3 and 4-inch sizes. Confirm the exact FKM grade and profile for each ordered part. NBR and HNBR are separate material alternatives and require their own specification.
Hammer union seals are used in the connections between flexible hoses or pipes used in the oil drilling industry. The seal provides a critical fluid tight connection within the union hardware.
![]()
A hammer union comprises of a thread end, a nut end and a hammer nut which, when cinched up, compresses a composite seal assembly thereby preventing leakage. The seal assembly comprises a metal insert of a size to pass into the seal groove of conventional hammer unions and a small seal acting between the insert, the thread end and the nut end. The small seal is conveniently an O-ring or a Hammer Union Seal (Lip Seal) and is of a size that is compressed when the seal assembly is inserted into the thread end of the hammer union.
Shanghai Qinuo Industry produced a full line of Hammer Union Seals.
Figure 1502 replacement fit requires the original union drawing and selected compound. Confirm working pressure and any proof-test requirement from the complete union specification and applicable documentation. Brass-backed and stainless-backed versions are separate construction choices; no universal pressure or proof-test rating is stated for the seal alone.
All available Hammer Union seals list :
1" HAMMER UNION LIP SEAL RING, BUNA
1-1/2" HAMMER UNION LIP SEAL RING, BUNA
2" HAMMER UNION LIP SEAL RING, BUNA
3" HAMMER UNION LIP SEAL RING, BUNA
1" HAMMER UNION LIP SEAL RING,
1-1/2" HAMMER UNION LIP SEAL RING,
2" HAMMER UNION LIP SEAL RING,
3" HAMMER UNION LIP SEAL RING,
2" HAMMER UNION SEAL RING, BUNA W/ BRASS BACKING
3" HAMMER UNION SEAL RING, BUNA W/ BRASS BACKING
4" HAMMER UNION SEAL RING, BUNA W/ BRASS BACKING
2" HAMMER UNION SEAL RING, W/ BRASS BACKING
3" HAMMER UNION SEAL RING, W/ BRASS BACKING
4" HAMMER UNION SEAL RING, W/ BRASS BACKING
2" HAMMER UNION SEAL RING, BUNA W/ STAINLESS STEEL BACKING
3" HAMMER UNION SEAL RING, BUNA W/ STAINLESS STEEL BACKING
4" HAMMER UNION SEAL RING, BUNA W/ STAINLESS STEEL BACKING
Other relative rubber products for oil drilling use:
1: Express: S.F. ,DHL,UPS, TNT, FedEx ect, for urgent and small order.
2: Air shipment: air port to air port or air port to door.
3: Sea shipment: suitable for bulk goods. it will takes more longer time than air shipment.
![]()
![]()
Shanghai Qinuo Industry Co. Ltd
was established in 2003, is a new and high-tech enterprise integrating R&D, production and sales. Since its inception, we adhering to the "Quality for Survival, Innovation Competes For Development " concept, continuous development and innovation, we won a good reputation at home and abroad.
Our company provides professional plastic parts, rubber parts and maching parts design and production services, products mainly used in automobiles, household appliances, machinery equipment and oil industry and other fields. We have a professional production and sales team, "High-Quality, High Professionalism, High Efficiency" are the principles of doing things.
We have two factories, more than 30 injection molding machines, molding machines and CNC lathes. Our company is located in Pudong New Area, Shanghai. Elegant environment, convenient transportation, Only need 30 minutes from our company to Pudong Airport.
We adopt comprehensive quality management system, material-specific compliance documentation can be reviewed for the ordered compound, our products are mainly exported to the United States, Canada, Britain, Germany, Finland, New Zealand, Australia and other countries and regions.
![]()
The steps of the production:
![]()
Welcome to contact us for more information.
Specify the FKM compound grade rather than requesting fluoroelastomer by material family alone. Provide the actual process fluid, additives, cleaning agents and temperature cycle for review. Gas-service or chemical suitability requires documentation for the selected grade and exposure conditions.
For each nominal 2, 3 or 4-inch Figure 1502 replacement, provide the union maker reference and original seal drawing. Confirm lip section and rubber-only, brass-backed or stainless-backed construction independently for each size. Do not select a seal solely from a nominal pipe size or product photograph.
Agree hardness value, test scale, tolerance and required material and inspection documents for the supplied FKM part. Keep NBR or HNBR alternatives on separate order lines. Confirm working pressure and any proof-test requirement against the complete union specification before sample approval.
