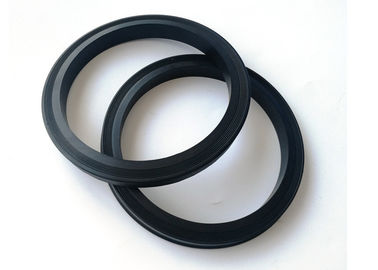

1502 Hammer Union NBR Oil Seal , 4" Hammer Seal Union For Oill Field

4-Inch Figure 1502 NBR Hammer Union Oil Seal — Oilfield Replacement

Product Description

A hammer union comprises of a thread end, a nut end and a hammer nut which, when cinched up, compresses a composite seal assembly thereby preventing leakage. The seal assembly comprises a metal insert of a size to pass into the seal groove of conventional hammer unions and a small seal acting between the insert, the thread end and the nut end. The small seal is conveniently an O-ring or a Hammer Union Seal (Lip Seal) and is of a size that is compressed when the seal assembly is inserted into the thread end of the hammer union.

The hammer union seal is a sealing component installed within the matching union hardware; it is not the complete threaded or welded connection. Shanghai Qinuo can supply you best Hammer Union seal in different figs like 602, 1002, 1502, 2002 and 2202.

Available size : 1", 2", 3", 4" and 5"

Material:

This enquiry concerns a 4-inch nominal Figure 1502 NBR replacement. Specify the exact nitrile grade, hardness and support construction. Other sizes and HNBR alternatives require separate drawing and compound confirmation.

                                         Application

Hammer union seals are used in the connections between flexible hoses or pipes used in the oil drilling industry. The seal provides a critical fluid tight connection within the union hardware.

Shanghai Qinuo Industry produced a full line of Hammer Union Seals.

Figure 1502 replacement fit requires the original union drawing and selected compound. Confirm working pressure and any proof-test requirement from the complete union specification and applicable documentation. Brass-backed and stainless-backed versions are separate construction choices; no universal pressure or proof-test rating is stated for the seal alone.

All available Hammer Union seals list :

1" HAMMER UNION LIP SEAL RING, BUNA

1-1/2" HAMMER UNION LIP SEAL RING, BUNA

2" HAMMER UNION LIP SEAL RING, BUNA

3" HAMMER UNION LIP SEAL RING, BUNA

1" HAMMER UNION LIP SEAL RING,

1-1/2" HAMMER UNION LIP SEAL RING,

2" HAMMER UNION LIP SEAL RING,

3" HAMMER UNION LIP SEAL RING,

2" HAMMER UNION SEAL RING, BUNA W/ BRASS BACKING

3" HAMMER UNION SEAL RING, BUNA W/ BRASS BACKING

4" HAMMER UNION SEAL RING, BUNA W/ BRASS BACKING

2" HAMMER UNION SEAL RING, W/ BRASS BACKING

3" HAMMER UNION SEAL RING, W/ BRASS BACKING

4" HAMMER UNION SEAL RING, W/ BRASS BACKING

2" HAMMER UNION SEAL RING, BUNA W/ STAINLESS STEEL BACKING

3" HAMMER UNION SEAL RING, BUNA W/ STAINLESS STEEL BACKING

4" HAMMER UNION SEAL RING, BUNA W/ STAINLESS STEEL BACKING

Other relative rubber products for oil drilling use:

                                   Packing and shipping

1: Express: S.F. ,DHL,UPS, TNT, FedEx ect, for urgent and small order.

2: Air shipment: air port to air port or air port to door.

3: Sea shipment: suitable for bulk goods. it will takes more longer time than air shipment.

                                            Our company

Shanghai Qinuo Industry Co. Ltd

was established in 2003, is a new and high-tech enterprise integrating R&D, production and sales. Since its inception, we adhering to the "Quality for Survival, Innovation Competes For Development " concept, continuous development and innovation, we won a good reputation at home and abroad.

Our company provides professional plastic parts, rubber parts and maching parts design and production services, products mainly used in automobiles, household appliances, machinery equipment and oil industry and other fields. We have a professional production and sales team, "High-Quality, High Professionalism, High Efficiency" are the principles of doing things.

We have two factories, more than 30 injection molding machines, molding machines and CNC lathes. Our company is located in Pudong New Area, Shanghai. Elegant environment, convenient transportation, Only need 30 minutes from our company to Pudong Airport.

We adopt comprehensive quality management system, material-specific compliance documentation can be reviewed for the ordered compound, our products are mainly exported to the United States, Canada, Britain, Germany, Finland, New Zealand, Australia and other countries and regions.

The steps of the production:

Welcome to contact us for more information.

4-Inch Figure 1502 NBR Orders: Confirm the Support Construction and Compound

Provide the 4-inch nominal union maker reference and original seal drawing. Confirm actual seal diameters, height and lip section independently from the connection size. Specify rubber-only, brass-backed or stainless-backed construction to match the original groove and support arrangement.

For oilfield service, identify the oil or drilling-fluid formulation, additives, cleaning agents and temperature cycle. Select the NBR compound for that duty and agree its hardness value, Shore scale and tolerance. The broader material and size range does not establish the specification of this 4-inch part.

Include required sample approval, dimensional inspection and material documentation in the enquiry. Confirm the complete connection pressure requirements with the union specification. A support-ring option or a harder rubber grade does not by itself increase the equipment rating.
