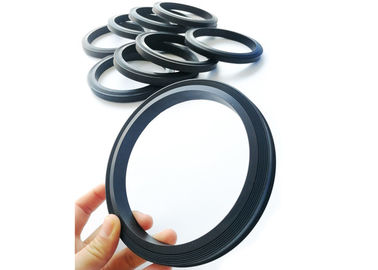

Customized Color 4" Hammer Union Seal With / Without Brass Back Up Ring

Customized Color 4" Hammer Union Seal With / Without Brass Back Up Ring

                                         Application

NBR nitrile hammer union seal rings are replacement sealing elements for compatible hose and pipe union connections used in oil-drilling equipment. Specify the nominal connection size, union figure and original seal drawing so that each ring matches its intended groove.

                                 Product Description

A hammer union comprises of a thread end, a nut end and a hammer nut which, when cinched up, compresses a composite seal assembly thereby preventing leakage. The seal assembly comprises a metal insert of a size to pass into the seal groove of conventional hammer unions and a small seal acting between the insert, the thread end and the nut end. The small seal is conveniently an O-ring or a Hammer Union Seal (Lip Seal) and is of a size that is compressed when the seal assembly is inserted into the thread end of the hammer union.

The hammer union is the complete metal connection; the seal ring is its replaceable sealing element. Figure references including 602, 1002, 1502, 2002 and 2202 require their own manufacturer drawing and groove confirmation. Seal rings must not be assumed interchangeable between figures.

Available size : 1", 2", 3", 4" and 5"

Material:

Select one compound and hardness for the 4 inch seal drawing. NBR, nitrile and Buna-N refer to the same polymer family. HNBR, FKM and PU are separate elastomer options; PTFE is a separate thermoplastic choice.

Shanghai Qinuo Industry produced a full line of Hammer Union Seals.

For Figure 1502 replacement enquiries, match the seal profile and any brass or stainless steel support ring to the original connection drawing. Working pressure and proof-test requirements belong to the complete union assembly; confirm the manufacturer rating, service conditions and applicable test records. A seal material or nominal size alone does not establish a pressure rating.

Other seal enquiries; confirm material, figure and drawing for each item:

1" HAMMER UNION LIP SEAL RING, BUNA

1-1/2" HAMMER UNION LIP SEAL RING, BUNA

2" HAMMER UNION LIP SEAL RING, BUNA

3" HAMMER UNION LIP SEAL RING, BUNA

1" HAMMER UNION LIP SEAL RING,

1-1/2" HAMMER UNION LIP SEAL RING,

2" HAMMER UNION LIP SEAL RING,

3" HAMMER UNION LIP SEAL RING,

2" HAMMER UNION SEAL RING, BUNA W/ BRASS BACKING

3" HAMMER UNION SEAL RING, BUNA W/ BRASS BACKING

4" HAMMER UNION SEAL RING, BUNA W/ BRASS BACKING

2" HAMMER UNION SEAL RING, W/ BRASS BACKING

3" HAMMER UNION SEAL RING, W/ BRASS BACKING

4" HAMMER UNION SEAL RING, W/ BRASS BACKING

2" HAMMER UNION SEAL RING, BUNA W/ STAINLESS STEEL BACKING

3" HAMMER UNION SEAL RING, BUNA W/ STAINLESS STEEL BACKING

4" HAMMER UNION SEAL RING, BUNA W/ STAINLESS STEEL BACKING

Other relative rubber products for oil drilling use:

                                   Packing and shipping

1: Express: S.F. ,DHL,UPS, TNT, FedEx ect, for urgent and small order.

2: Air shipment: air port to air port or air port to door.

3: Sea shipment: suitable for bulk goods. it will takes more longer time than air shipment.

                                            Our company

Shanghai Qinuo Industry Co. Ltd

was established in 2003, is a new and high-tech enterprise integrating R&D, production and sales. Since its inception, we adhering to the "Quality for Survival, Innovation Competes For Development " concept, continuous development and innovation, we won a good reputation at home and abroad.

Our company provides professional plastic parts, rubber parts and maching parts design and production services, products mainly used in automobiles, household appliances, machinery equipment and oil industry and other fields. We have a professional production and sales team, "High-Quality, High Professionalism, High Efficiency" are the principles of doing things.

We have two factories, more than 30 injection molding machines, molding machines and CNC lathes. Our company is located in Pudong New Area, Shanghai. Elegant environment, convenient transportation, Only need 30 minutes from our company to Pudong Airport.

We adopt comprehensive quality management system, material-compliance documentation is reviewed against the specified product and order requirements, our products are mainly exported to the United States, Canada, Britain, Germany, Finland, New Zealand, Australia and other countries and regions.

The steps of the production:

Welcome to contact us for more information.

4 Inch Colored Union Seals: Specify Brass Support and Color Separately

For a 4 inch nominal union connection, identify the original seal part number, figure and groove drawing. State whether the replacement requires a brass back-up ring or a plain elastomer construction. With-support and without-support versions must each match their intended groove; they are not interchangeable solely because the nominal size is the same.

Specify color after selecting the compound and construction. Color can help distinguish parts in storage, but it does not prove polymer grade, hardness or pressure capability. Include the approved color reference and part marking with the drawing revision and packaging requirements.

Send actual seal dimensions, tolerances, fluid composition, operating temperature and quantity for each version. Confirm brass alloy and support dimensions where applicable. Compare samples and quotations against the same specification, with complete union ratings reviewed separately.
