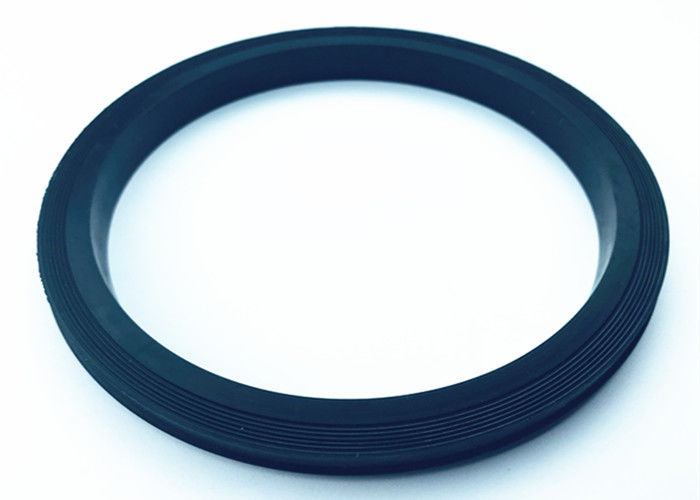

Made in China Hammer Union Lip Seal Ring HNBR

Made in China Hammer Union Lip Seal Ring HNBR

Product Details:
Place of Origin: Shanghai, China
Brand Name: SHQN
Certification: ISO 9001
Model Number: Weco Fig 1502
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pcs
Price: USD$0.2-1
Packaging Details: Carton/pallet
Delivery Time: 5-15 days
Payment Terms: L/C, T/T, Western Union,
Supply Ability: 50000 per week
Contact Now
Detailed Product Description
Product Name: HNBR Hammer Union Lip Seal Ring Material: HNBR Hydrogenated Nitrile; Exact Compound And Hardness Per Specification
Color: Black, Blue, Red Or Purple Enquiries; Confirm Selected Compound And Color Size: 1, 2, 3 And 4 In Nominal Connections; Custom Sizes Per Confirmed Drawing
Packing: Carton Packing MOQ: 1000 Pcs
Pressure: Complete Union Assembly Rating And Service Specification Required Feature: HNBR Compound And Lip Profile Matched To The Specified Union Groove
Temperature: Confirm Selected HNBR Compound Limits For The Fluid Service Application: Oil And Gas Industry
Samples: Sample Requirements And Lead Time Confirmed In Quotation Shipping Method: By Express, By Air, By Sea, By Car
In Stock: Confirm Availability By Drawing And Compound Service: OEM/ ODM
Highlight:

hammer seal union

,

rubber lip seal

                                                           Product   Description

A hammer union comprises of a thread end, a nut end and a hammer nut which, when cinched up, compresses a composite seal assembly thereby preventing leakage. The seal assembly comprises a metal insert of a size to pass into the seal groove of conventional hammer unions and a small seal acting between the insert, the thread end and the nut end. The small seal is conveniently an O-ring or a Hammer Union Seal (Lip Seal) and is of a size that is compressed when the seal assembly is inserted into the thread end of the hammer union.



The hammer union is the complete metal connection; the seal ring is its replaceable sealing element. Figure references including 602, 1002, 1502, 2002 and 2202 require their own manufacturer drawing and groove confirmation. Seal rings must not be assumed interchangeable between figures.



Available size : 1, 2, 3 and 4 inch nominal connection enquiries; confirm each seal drawing. A 5 inch or other custom size requires separate drawing review.

Material: HNBR (hydrogenated nitrile rubber) is the material focus for this black seal enquiry. Specify the exact compound and Shore A hardness with the seal drawing. NBR and FKM are separate elastomer choices; PTFE is a separate thermoplastic option.

Application: Replacement seals fit the specified groove within compatible oilfield hose or pipe union hardware. Provide the union figure, seal dimensions, fluid formulation and temperature for HNBR material review; the complete assembly determines connection performance.

                                                              Product    Show

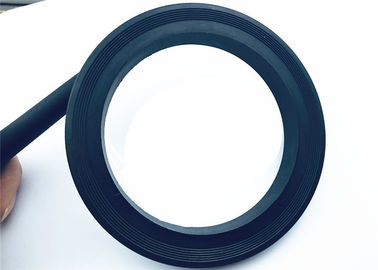

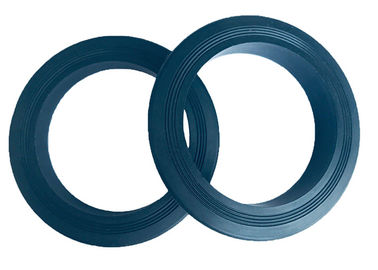

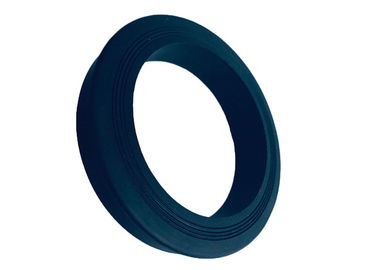

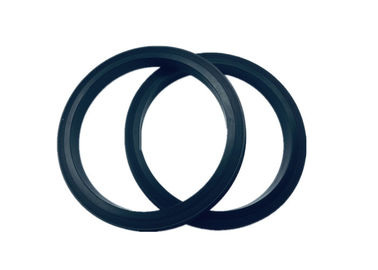

      Made in China Hammer Union Lip Seal Ring HNBRMade in China Hammer Union Lip Seal Ring HNBRMade in China Hammer Union Lip Seal Ring HNBR       Made in China Hammer Union Lip Seal Ring HNBR

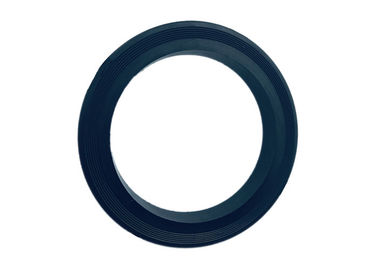

Made in China Hammer Union Lip Seal Ring HNBRMade in China Hammer Union Lip Seal Ring HNBR

                                                                  Our  comapany

Shanghai Qinuo Industry

Shanghai Qinuo Industry Co., Ltd was specialized in rubber and plastic field for more than 10 years.


Our company have strong technical force, advanced technical equipments, complete testing means and scientific quality management.


Our main services include develop and manufacture rubber parts and molds, plastic parts and molds.


We can also according to customers requirement to provide various kinds of mixing rubber.



Made in China Hammer Union Lip Seal Ring HNBRMade in China Hammer Union Lip Seal Ring HNBRMade in China Hammer Union Lip Seal Ring HNBRMade in China Hammer Union Lip Seal Ring HNBR

                                                         Packing &  Delivery

Made in China Hammer Union Lip Seal Ring HNBRMade in China Hammer Union Lip Seal Ring HNBR



HNBR Union Lip Seal Supply: Specify Drawing and Inspection Requirements

For an HNBR lip-seal sourcing enquiry, send the union figure, nominal size, original part reference and dimensioned lip-section drawing. Confirm whether the seal is plain elastomer or includes a brass or stainless support. Match the profile to the original groove rather than relying on product photographs.

State the HNBR compound, nominal Shore A hardness, dimensional tolerances and required inspection documents on the purchase specification. Agree the sample acceptance criteria and quantity for each drawing. Color, origin and polymer name do not establish equivalent compound performance.

Provide the fluid formulation, temperature range, pressure cycling and any gas exposure requirements for material review. Sour-service and decompression qualification require the exact compound and applicable test criteria. Request batch identification, packaging and shipment details with the confirmed quotation.
