HNBR Black Small Size Hammer Union Seal With lower price

HNBR Black Small Size Hammer Union Seal With lower price

Product Details:
Place of Origin: Shanghai, China
Brand Name: SHQN/Royal Way
Certification: ISO 9001
Model Number: HUS001
Document: Hammer Union Seal TDS.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pcs
Price: USD$0.2-1
Packaging Details: Carton/pallet
Delivery Time: 5-15 days
Payment Terms: L/C, T/T
Supply Ability: 50000 per week
Contact Now
Detailed Product Description
Product Name: Black HNBR Hammer Union Replacement Seal Material: HNBR Hydrogenated Nitrile; Specify Exact Compound
Color: Black; Alternatives Subject To Compound And Order Requirements Size: 1, 2, 3 And 4 In Nominal Connections; Actual Seal Dimensions Per Drawing
Hardness: Specify HNBR Shore A Target And Tolerance Per Drawing Packing: Carton Packing
MOQ: 1000 Pcs Pressure: Complete Union Assembly Rating And Service Specification Required
Temperature: Confirm Selected HNBR Compound Limits For The Fluid Service Feature: HNBR Compound And Profile Matched To The Specified Union Groove
Application: Oil And Gas Industry Samples: Available
Delivery Time: 7-15 Days In Stock: Confirm Availability For The Required Part And Compound
Highlight:

hammer seal union

,

rubber hammer union seal

                                                           Product   Description

A hammer union comprises of a thread end, a nut end and a hammer nut which, when cinched up, compresses a composite seal assembly thereby preventing leakage. The seal assembly comprises a metal insert of a size to pass into the seal groove of conventional hammer unions and a small seal acting between the insert, the thread end and the nut end. The small seal is conveniently an O-ring or a Hammer Union Seal (Lip Seal) and is of a size that is compressed when the seal assembly is inserted into the thread end of the hammer union.



The hammer union is the complete metal connection; the seal ring is its replaceable sealing element. Figure references including 602, 1002, 1502, 2002 and 2202 require their own manufacturer drawing and groove confirmation. Seal rings must not be assumed interchangeable between figures.



Available size : 1, 2, 3 and 4 inch nominal connection enquiries; confirm each seal drawing. A 5 inch or other custom size requires separate drawing review.

Material: HNBR (hydrogenated nitrile rubber) is the material focus for this black seal enquiry. Specify the exact compound and Shore A hardness with the seal drawing. NBR and FKM are separate elastomer choices; PTFE is a separate thermoplastic option.

Application: Replacement seals fit the specified groove within compatible oilfield hose or pipe union hardware. Provide the union figure, seal dimensions, fluid formulation and temperature for HNBR material review; the complete assembly determines connection performance.

                                                              Product    Show

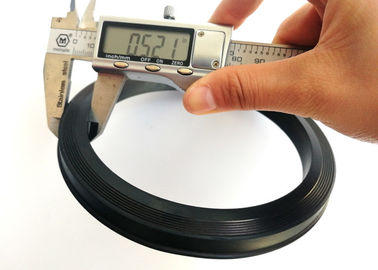

      HNBR Black Small Size Hammer Union Seal With lower priceHNBR Black Small Size Hammer Union Seal With lower price

HNBR Black Small Size Hammer Union Seal With lower priceHNBR Black Small Size Hammer Union Seal With lower price

                                                           Our  comapany

Shanghai Qinuo Industry Co., Ltd was established in the year of 2013 at Shanghai Free Trade Zone, we are a professional rubber seal manufactory specialized in the Oil & Gas filed, Qinuo is a new and high-tech enterprise integrating R&D, production and sales. Since its inception, we adhering to the "Quality for Survival, Innovation Competes For Development " concept, continuous development and innovation, we won a good reputation at home and abroad, we are current using Royal Way & SHQN two brands to do the marketing in the energy industry.

Qinuo provides professional rubber parts, plastic parts and maching parts design and production services, products mainly used in oil & gas industry, automobiles, household appliances, machinery equipment etc. We have a professional production and sales team, "High-Quality, High Professionalism, High Efficiency" are the principles of doing things.



Shanghai Qinuo Industry Co., Ltd was established in the year of 2013 at Shanghai Free Trade Zone, we are a professional rubber seal manufactory specialized in the Oil & Gas filed, Qinuo is a new and high-tech enterprise integrating R&D, production and sales. Since its inception, we adhering to the "Quality for Survival, Innovation Competes For Development " concept, continuous development and innovation, we won a good reputation at home and abroad, we are current using Royal Way & SHQN two brands to do the marketing in the energy industry.

Qinuo provides professional rubber parts, plastic parts and maching parts design and production services, products mainly used in oil & gas industry, automobiles, household appliances, machinery equipment etc. We have a professional production and sales team, "High-Quality, High Professionalism, High Efficiency" are the principles of doing things.

                                                         Packing &  Delivery

HNBR Black Small Size Hammer Union Seal With lower priceHNBR Black Small Size Hammer Union Seal With lower price





Black HNBR Small-Size Union Seals: Define the Part Before Comparing Quotations

For a small-size replacement, send the original seal part number or dimensioned drawing, nominal union size and figure. Include lip profile, inner and outer diameters and any metal support ring. A black seal of similar appearance is not sufficient to establish fit.

Compare quotations using the same HNBR compound, hardness, dimensional tolerances, support construction and quantity. State sample inspection and packaging requirements so that unit prices refer to the same specification. Final price, minimum quantity and lead time are confirmed for the agreed order.

HNBR polymer identity alone does not establish sour-gas or rapid-decompression qualification. If required, provide gas composition, operating pressure, temperature and qualification criteria. Confirm the selected compound data and application requirements before replacing an existing seal.
